Roland VR-120HD Direct Streaming AV Mixer Switcher

$420.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • Roland VR-120HD Direct Streaming AV Mixer
  • AC adapter
  • Non-polarized cable
  • Case

Roland VR-120HD Direct Streaming AV Mixer Switcher

The Roland VR-120HD Direct Streaming AV Mixer is a professional-grade mixer that combines the advanced functions of a video switcher and an audio mixer. It’s equally great for in-person, online, and hybrid productions. Key features include:

  • Portable, pro-grade hybrid event AV streaming mixer

  • 12 total Full HD video inputs; 42 audio channels

  • Easy-to-use automation with sequencing and macros

  • 2x live streams at up to 1080p60; SDXC recording

Read More

Specifications

Audio Type

Switching

Brand

Roland

Connectivity

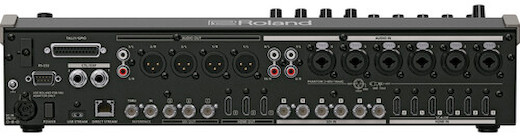

Inputs/Outputs

  • 1x USB-C (Stereo) Female
Other I/O
  • 1x USB-A 2.0 Input
  • 1x DB-25 Tally
  • 1x DE-9/DB-9 RS-232
  • 1x RJ45 Control, LAN
  • 2x BNC Blackburst, Reference
  • 2x 1/4" TRS Control
Video Standard Compliance
  • SMPTE 292M/424M/424M-A/424M-B
IP Video – H.264 / MJPEG
  • 1920 × 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p (20,000 Kb/s) Encoding
IP Audio
  • AAC-LC: 384 Kb/s Encoding
Simultaneous Streams
  • 2 Streams
Recording Media
  • 1x SDXC, SDHC, USB-A 2.0
Recording Modes
  • 1920 × 1080p up to 60 fps (MP4 via H.264/AVC)

Display

Display Size

  • 7"
Screen Resolution
  • 800 × 480

Environmental

Operating Temperature

  • 32 to 104°F

General

Available M/E Layers

  • 8 M/E
Effect Types
  • DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Graphics Memory
  • None
Downstream Keys
  • 2x Chroma, Alpha, Luma, DVE
Audio Mixing
  • 42-Channel Mixing

Hardware

OS Compatibility
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility

  • macOS
  • Windows
Wi-Fi
  • None
Bluetooth
  • 4.2
Power I/O
  • 1x Barrel (24 VDC at 3 A) Input
Power Consumption
  • 69 W

Input

Number of Video Input Sources

  • 12
Video Inputs
  • 6x HDMI Female
  • 6x BNC (3G-SDI) Female
Input Video Format – HDMI (8-Bit 4:2:2)
  • 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  • 1080i at 50/59.94 fps
  • 720p at 50/59.94 fps
  • 576p at 50 fps
  • 576i / 625 lines at 50 fps
  • 480p at 59.94 fps
  • 480i / 525 lines at 59.94 fps
  • VGA (640 × 480) at 60 fps
  • SVGA (800 × 600) at 60 fps
  • XGA (1024 × 768) at 60 fps
  • WXGA (1280 × 800) at 60 fps
  • SXVGA (1280 × 1024) at 60 fps
  • FWXGA (1366 × 768) at 60 fps
  • SXGA+ (1400 × 1050) at 60 fps
  • UXGA (1600 × 1200) at 60 fps
  • WUXGA (1920 × 1200) at 60 fps
Input Video Format – SDI (8-Bit 4:2:2)
  • 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Input Video Format – USB-C (8-Bit 4:2:2)
  • 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
  • 720p at 24/25/29.97/30/50/59.94/60 fps
  • 480p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Inputs
  • 6x Combo XLR-1/4" TRS Analog Female
  • 2x 2RCA Analog Female
Input Audio Format
  • Analog: 48 kHz / 24-Bit
  • LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Embedded Audio Input
  • HDMI: 2-Channel (per Input)
  • SDI: 2-Channel (per Input)
  • USB-C: 2-Channel

See All
