The Atomos Ninja 5.2" 4K HDMI Recording Monitor is a compact monitor/recorder duo that offers an updated operating system, HDR monitoring, and RAW recording capabilities. Key features include:
1920 × 1080 touchscreen display
- L-Series battery slot
AtomOS 11 operating system
ProRes and DNxHR/HD recording

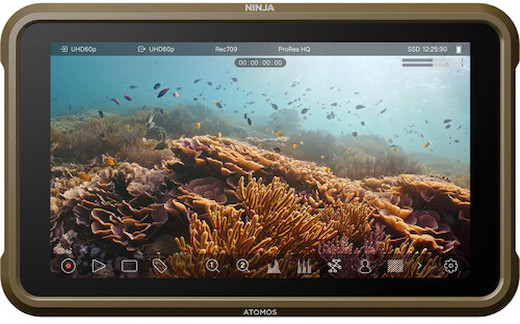

Compact, Touchscreen Display. This Atomos Ninja 5.2" 4K HDMI Recording Monitor comes equipped with a touchscreen display and offers a 1920 × 1080 resolution and 1000 cd/m² brightness, perfect for daylight viewing. This display ensures high quality monitoring thanks to a 10-bit color processing, Rec.709 color gamut, and Calibrite ColorChecker Display Pro/Plus calibration support.
AtomOS 11. This monitor offers the new AtomOS 11 operating system, bringing new features and an improved interface to your Ninja. These new features include Focus Peaking, Zoom, Atomos and ARRI False Color, EL Zone colorized exposure, Safe Areas, RecordAssit, PlayBackAssist, SegmentPro, and Cine Guides. Additionally, you’ll find that this monitor provides a AtomHDR processing engine that enables real-time Log to PQ/HLG previewing.

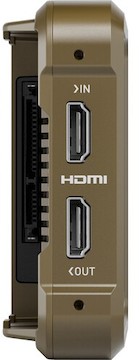

Interface & Recording. This Ninja provides a HDMI input and output port that supports up to DCI 4K video at 60 fps in monitoring, recording, and playback modes, and 3.5K RAW at 60 fps footage is supported with select cameras. You can also configure this monitor into a stand-alone system for UHD 4K, HDR, and high frame rate gaming capture.
SSD Recording. Compatible with both the Master Caddy II and Master Caddy III, this unit supports direct recording to the drives. We include the Master Caddy III with this rental. Using a separately available adapter, you also have the option to use AtomX SSDmini drives and CFAST II cards.

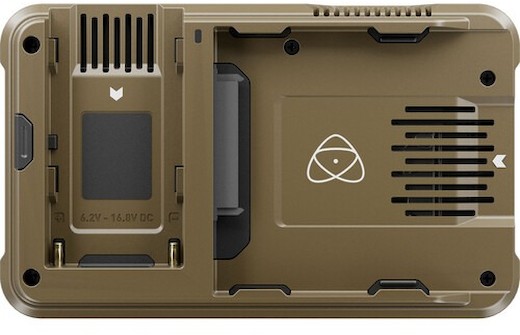

Power Trip. You’ll find that there is in integrated L-Series battery plate on this monitor, which will support NP-F L-series batteries outputting 5.8 to 7.2V. There’s also a USB-C port that supports 30W PD power using the included USB-C to Locking 5.5mm cable, but if you use the included battery eliminator, you can power up via DC sources.

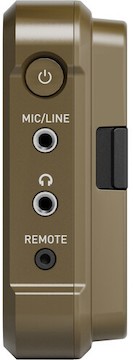

Control Options. For intuitive onboard control, multifunction control buttons work with the touchscreen interface, and an auto HDMI camera trigger is supported by both Canon and Sony using Atomos Open Standard. If you add the Atomos Connect to your rental, you can have access to Bluetooth and RF-driven remote control.
