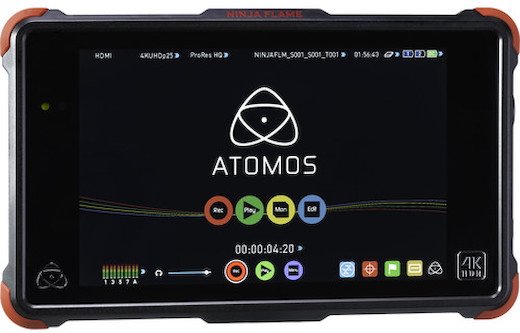

ATOMOS Ninja Flame 4K HDMI Recorder

Resources

  • Manual
  • ATOMOS Ninja Flame 4K HDMI Recorder


    While this used ATOMOS Ninja Flame is no longer available for rental, we do carry the Atomos Ninja V+ 5.2-inch 8K HDMI Recorder. You may also find alternatives here.

    • 10-stop dynamic range; 10-bit signal processor

    • High Bright mode for easy outdoor use

    • UHD 4K up to 30p; 1080p up to 120 fps

    • Improved, more durable construction

    Read More

    Need extra accessories? Check out these:

    Specifications

    Brand

    Atomos

    Display

    Screen Size

    • 7.1“
    Resolution
    • 1920 x 1200
    Pixel Density
    • 325 PPI
    Bit Depth
    • 10-bit
    Brightness
    • 1500 nit

    Inputs/Outputs

    Audio Inputs

    • Line In/Mic In
    Audio Outputs
    • 1x 3.5mm headphone
    Video Inputs
    • 1x HDMI (1.4b)
    Video Outputs
    • 1x HDMI (1.4b)
    HDMI to HDMI Formats
    • 720P: 50/60
    • 1080i: 50/60
    • 1080p: 24/25/30/50/60/120
    • 2160p: 24/25/30
    Additional Inputs/Outputs
    • 1x 2.5mm LANC
    • 1 x DC in (6.2 – 16.8V)

    Item Type

    Monitoring, Recorder, and Production Monitors

    Monitoring Type

    Monitor

    Physical

    Dimensions

    • 8.4 × 5 × 1.8”
    Weight
    • 620g (without batteries/media), 1064g (with batteries/media)
    Accessory Mounts
    • 2x 1/4” screw mounts
