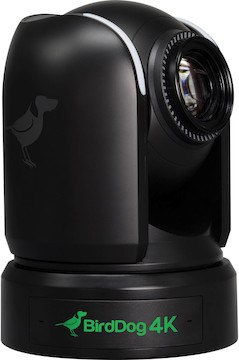

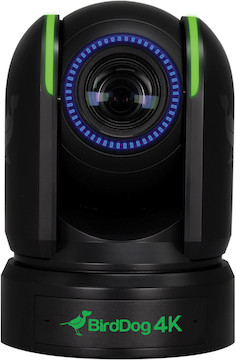

The BirdDog P4K UHD 4K PTZ Camera is a full-NDI PTZ camera that can transmit UHD 4K/30p video from its 1-inch Sony backlit sensor. Key features include:
Sony 1" backlit Exmor R CMOS sensor with 14.2 MP
12x optical zoom with a 9.3 to 111.6mm focal length
Simultaneous full NDI, SDI, & HDMI outputs
Maximum UHD 4K/30p resolution via full NDI streaming
Full-NDI 4K PTZ Camera. The BirdDog P4K UHD 4K PTZ Camera is a remote controlled PTZ camera that uses the NewTek NDI protocol for variable bitrate video over IP. Resolutions up to 3840 × 2160 are possible at 30 fps. For imaging, the P4K uses a 14.2 MP, 1", Sony backlit CMOS sensor.
Control & Switching Options. NDI cameras can be controlled with a variety of software and hardware. We recommend NewTek’s NDI Tools as a starting point for free, software-based NDI control. Hardware control is possible with the BirdDog PTZ Keyboard. Please contact us for any hardware or software compatibility concerns. Please note, the PTZ keyboard will need to be updated to v4.5.203-LTS to work with this camera, and the P4K will need to be updated to v4.5.206-LTS, but all copies will be fully updated before shipment.
Integrated 12x Zoom Lens. The Bird Dog P4K features a 12x optical zoom lens that will reach from 9.3 to 111.6mm. The lens can be moved at up to 100°/s with a 350° pan and -30 to 90° tilt range.
Power Over Ethernet. This camera is capable of utilizing PoE from compatible network switches, but can also be powered by the included AC adapter.

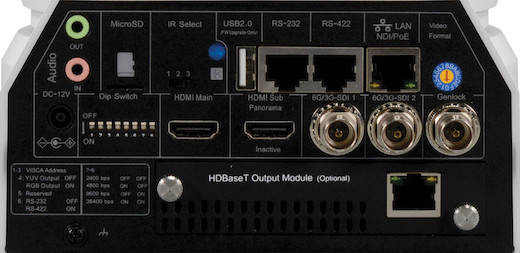

Inputs & Outputs. The camera uses an RJ45 ethernet port for NDI, but also features simultaneous video output via SDI and HDMI. Audio input and output is available with two 1/8" (3.5mm) ports.
