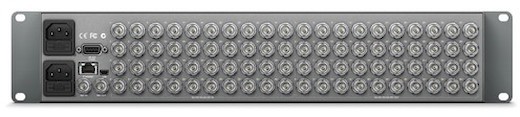

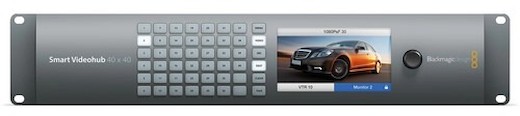

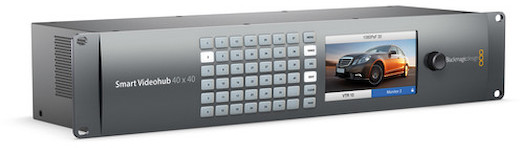

Blackmagic Design Smart Videohub 40 x 40 6G-SDI

The used Blackmagic Design Smart Videohub 40 × 40 6G-SDI is a mixed format router, ideal for efficiently swapping between multiple video sources. Key features include:

40 × 6G-SDI Inputs / 40 × 6G-SDI Outputs
4:2:2 and 4:4:4 Sampling
Supports SD, HD, Ultra HD 4K, DCI 4K
Built-In LCD with Spin Knob Control

Specifications

Brand	Blackmagic
Format Support	SD Format Support: 625/25 PAL 525/29.97 NTSC 525/29.98 NTSC HD Format Support: 720p 50/59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 2K Format Support: 2048×1080p 23.98/24/25 2048×1080PsF 23.98/24/25 2048×1080p 23.98/24/25 2048×1080PsF 23.98/24/25 4K Format Support: 3840×2160p 23.98/24/25/29.97/30 4096×2160p 24
Item Type	Monitoring & Recording
Monitoring & Recording Type	Router
Multiple Rate Support	Auto detection of SD, HD, or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI
Physical	Dimensions: 18.97 × 3.46 × 6.29″ Weight: 9.92 lb
SDI Compliance	SMPTE 259M SMPTE 292M SMPTE 296M SMPTE 310M SMPTE 425M Level B ITU-R BT.656 ITU-R BT.601
