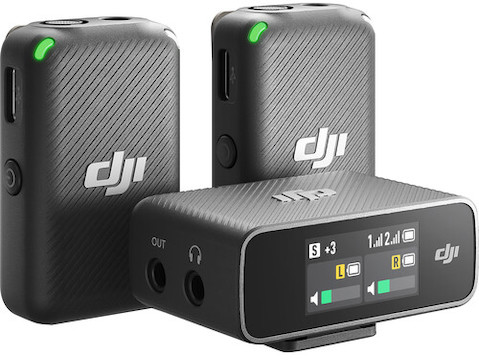

DJI Mic Wireless Microphone Kit

DJI Mic Wireless Microphone Kit


The DJI Mic Wireless Microphone Kit is an accessory for action cameras like the DJI Action 2 that allows you to capture two-channel audio at distances up to 820’. Key features include:

  • High-quality audio recording

  • Built-in touchscreen and onboard memory

  • Lightweight, compact, and versatile

  • Charging case included

Read More

Specifications

Audio Type

Lavalier Mic

Brand

DJI

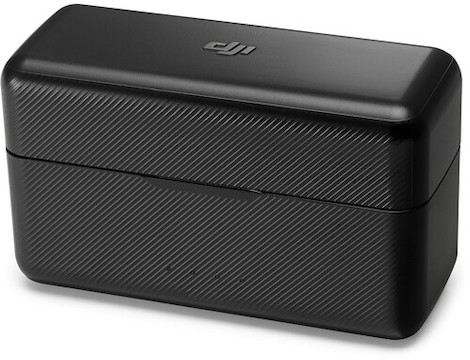

Charging Case

Additional Runtime

  • 15 Hours
Recharge Time
  • 2 Hours
Battery Chemistry
  • Lithium-Ion Polymer (LiPo)
Capacity
  • 2600 mAh
Charging Interface
  • USB-C
DC Input Power
  • 3.8 VDC
Dimensions (L x W x H)
  • 4.1 × 2.4 × 1.6″
Weight
  • 0.4 lb.

Item Type

Audio, Mics, and Wireless Audio

Mfr. Model Number

CP.RN.00000197.01

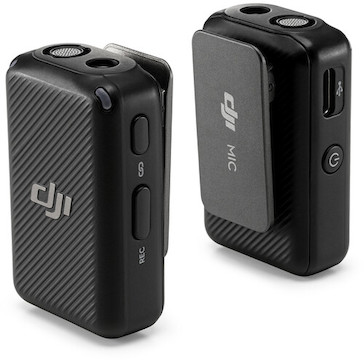

Microphone

Microphone Type

  • Integrated
Sound Field
  • Mono
Capsule
  • Electret Condenser
Polar Pattern
  • Omnidirectional
Equivalent Noise Level
  • 23 dB A-Weighted
Maximum SPL
  • 114 dB SPL

Receiver

Receiver Type

  • Camera-Mount
Mounting Options
  • Plug-In, Shoe-Mount (with Included Hardware)
Number of Audio Channels
  • 2
Audio I/O
  • 1x 1/8" / 3.5mm TRS Female Unbalanced Output
  • 1x 1/8" / 3.5mm TRS Female Unbalanced Headphone Output
Audio Output Level
  • -12 to +12 dB
Signal Processing
  • High-Pass Filter: 150 Hz
Frequency Response
  • 50 Hz to 20 kHz
Network I/O
  • None
Word Clock I/O
  • None
USB/Lightning Connectivity
  • 1x Lightning Male (Audio)
  • 1x USB-C Male (Audio)
RF Output Power
  • 100 mW (EIRP)
Power Requirements
  • Battery
Battery Type
  • 1x Built-In Rechargeable
Internal Battery Capacity
  • 320 mAh
Battery Charging Time
  • 160 Minutes
Approx. Battery Life
  • 5 Hours (Lithium Rechargeable)
Display & Indicators
  • OLED Touchscreen (Battery Status, Channel, Level, Menu Navigation, Transmitter Battery Status)
Operating Temperature
  • 14 to 113°F
Dimensions (L x W x H)
  • 1.9 × 1.3 × 0.7″
Weight
  • 0.1 lb.

System

Wireless Technology

  • Digital 2.4 GHz
Included Transmitters
  • 2x Clip-On with Microphone
Diversity
  • Non-Diversity
RF Frequency Band
  • 2400 to 2483.5 MHz
RF Channel Scanning
  • Auto-Scan
Max Operating Range
  • 820.2’ / 250m (Line of Sight)
Max Transmitters Per Band
  • 2
Built-In Recorder
  • Yes
Encryption
  • Proprietary
Modulation
  • GFSK
