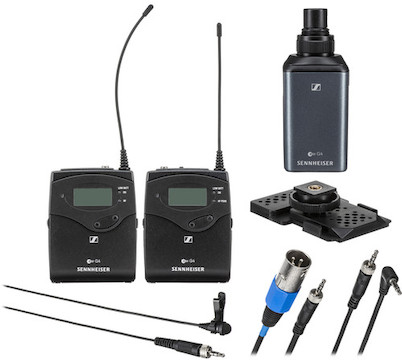

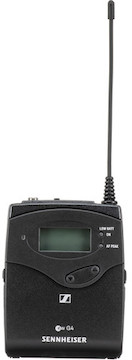

Sennheiser G4 Wireless Mic Kit w/ Plug-On Transmitter

Our Sennheiser G4 Wireless Mic Kit w/ Plug-On Transmitter is a multi-purpose, broadcast quality, wireless audio system that includes both body pack and handheld transmitters for flexibility in the field. Key features include:

Frequency Range A (516 – 558 MHz)
Up to 330’ of reliable transmission
Body pack and handheld transmitters
Batteries not included

In case you need a spare:

Specifications

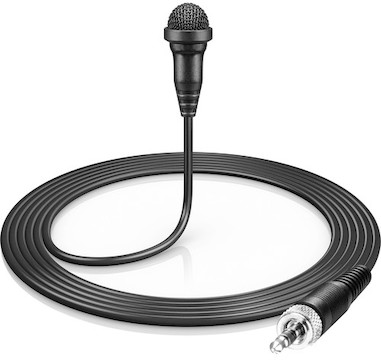

Audio Type	Lavalier Mic
Brand	Sennheiser

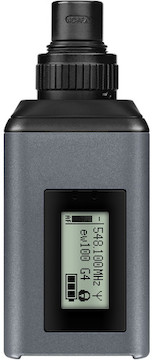

Included Transmitters	SKM 100 G4 Modulation Wideband FM Receiving frequency ranges A1: 470 – 516 MHz A: 516 – 558 MHz AS: 520 – 558 MHz G: 566 – 608 MHz GB: 606 – 648 MHz B: 626 – 668 MHz C: 734 – 776 MHz D: 780 – 822 MHz E: 823 – 865 MHz JB: 806 – 810 MHz K+: 925 – 937.5 MHz 1G8: 1785 – 1800 MHz Transmission frequencies Max 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels 1 frequency bank with up to 12 programmable channels Switching bandwidth up to 42 MHz Nominal/peak deviation ±24 kHz / ±48 kHz Frequency stability ≤ ±15 ppm RF output power Max. 30 mW Pilot tone squelch Can be switched off Compander system Sennheiser HDX AF frequency response 80 – 18,000 Hz Signal-to-noise ratio (1 mV, peak deviation) ≥ 110 dBA Total harmonic distortion (THD) ≤ 0.9 % Input voltage 3 Veff Input impedance 40 kΩ Input capacitance Switchable Setting range for input sensitivity 48 dB in 6 dB steps Temperature range 14 °F to 131 °F Power supply 2 AA batteries, 1,5 V or BA 2015 accupack Nominal voltage 3 V battery 2.4 V rechargeable battery Power consumption typically 180 mA with transmitter off: ≤ 25 μA Operating time Typically 8 h Dimensions 1.97″ × 10.43″ Weight 450 g
Item Type	Audio and Wireless Audio
Mfr. Model Number	EW 100 ENG G4-A

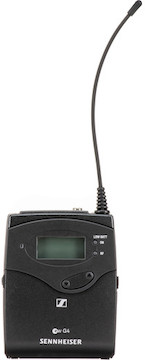

Receiver	Modulation Wideband FM Receiving frequency ranges A1: 470 – 516 MHz A: 516 – 558 MHz AS: 520 – 558 MHz G: 566 – 608 MHz GB: 606 – 648 MHz B: 626 – 668 MHz C: 734 – 776 MHz D: 780 – 822 MHz E: 823 – 865 MHz JB: 806 – 810 MHz K+: 925 – 937.5 MHz Receiving frequencies Max 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels Switching bandwidth up to 42 MHz Nominal/peak deviation ±24 kHz / ±48 kHz Receiver principle Adaptive diversity Sensitivity (with HDX, peak deviation) < 1.6 μV for 52 dBA eff S/N Adjacent channel selection ≥ 65 dB Intermodulation attenuation ≥ 65 dB Blocking ≥ 70 dB Squelch Low: 5 dBμV Middle: 15 dBμV High: 25 dBμV Pilot tone squelch Can be switched off Compander system Sennheiser HDX Signal-to-noise ratio (1 mV, peak deviation) ≥ 110 dBA Total harmonic distortion (THD) ≤ 0.9 % AF output voltage (at peak deviation, 1 kHz AF) 3.5 mm jack socket +12 dBu (mono, unbalanced) “AF Out” setting range 48 dB (in 6 dB steps) Temperature range 14 °F to 131 °F Power supply 2 AA batteries, 1,5 V or BA 2015 accupack Nominal voltage 3 V battery 2.4 V rechargeable battery Power consumption at nominal voltage: typically 180 mA with transmitter switched off: ≤ 25 μA Operating time Typically 8 h Dimensions 3.23″ × 2.52″ × 0.95″ Weight 5.64 oz
