BirdDog P110 3-Camera PoE PTZ Network Ready Kit w/ Keyboard

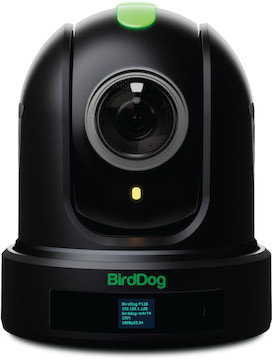

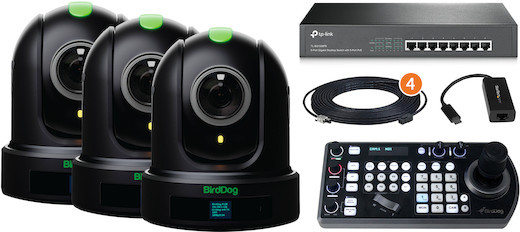

The BirdDog P110 3-Camera PoE PTZ Network Ready Kit w/ Keyboard is a package of three full NDI 1080p60 PTZ cameras and compatible accessories for meeting rooms, small indoor spaces, sporting events, and concerts.

This kit includes:

Q & A

How can I control the camera's movement?

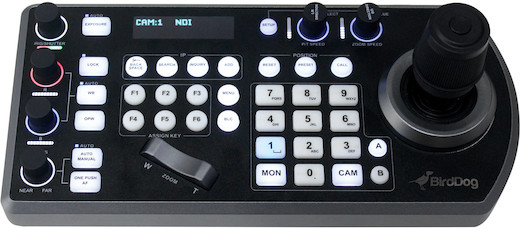

The included keyboard offers an option for precise movements, but for basic camera controls, we suggest separately renting the BirdDog IR Remote.

How can I change the resolution and frame rate?

You can adjust the resolution and frame rate through the WebUI and the IR remote. The dial has been phased out in recent firmware updates and can no longer be used to make adjustments.

Does this rental include a USB audio adapter?

This rental doesn’t include the BirdDog USB audio adapter by default.
If you need a USB audio adapter with your rental, please request it in the Special Instructions box during checkout and we’ll add one to your order at no additional cost.

Specifications

Brand	BirdDog
Camcorder Type	PTZ
Camera	Shutter Speed 1/1 to 1/30,000 sec Max Digital Zoom 12x Built-In ND Filter None Flip / Mirror Support Image Flip, Mirror (Vertical)
Camera Type	Camcorder
Control	Presets 128 Move Speed Pan: 0.5 to 100°/sec Tilt: 0.5 to 72°/sec Movement Range Pan: 350° (-175 to 175°) Tilt: 120° (-30 to 90°) Tally Light Yes Supported Control Protocols IP NDI Pelco-D RS-232 RS-422 VISCA
Environmental	Operating Temperature 14 to 122°F Operating Humidity 80%
Image Sensor	Sensor Type 1-Chip 1/2.86” CMOS Sensor Sensor Resolution Effective: 2.2 Megapixel Minimum Illumination 0.5 Lux
Interfaces	Video Output Connectors 1x RJ45 (NDI) Female 1x BNC (3G-SDI) Female 1x HDMI Type A (HDMI 1.4) Female 1x USB 2.0 Type-B (USB Video) Female Audio I/O 1x 1/8" / 3.5mm Stereo Input 1x 1/8" / 3.5mm Stereo Output Control Interface 1x RJ45 (IP Control) Other I/O 1x USB (Unspecified Type)
Item Type	Camera, Package, and PTZ Cameras
Lens	Optical Zoom Ratio 10x Focal Length 4.7 to 47mm Field of View Horizontal: 6.43 to 60.9° Maximum Aperture f/1.6 to 3 Focus Control Autofocus, Manual Focus
Package Type	PTZ Video
Physical	Tripod Mounting Thread 1x 1/4"-20 Female Dimensions (L x W x H) 6.7 × 6 × 5.7″ Weight 2.2 lbs.
Power	PoE Support PoE+ 802.3at Power Connectors 1x Barrel / Coaxial (12 VDC)
Video Output	Output Formats SDI, HDMI, RJ45, USB: 1920 × 1080p at 25, 29.97, 50, 59.94, 60 fps 1920 × 1080i at 50, 59.94, 60 fps 1280 × 720p at 25, 29.97, 50, 59.94, 60 fps
