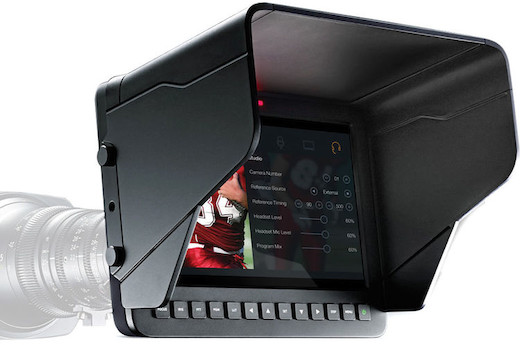

Blackmagic Design Studio Camera HD

Includes

Blackmagic Design Studio Camera
Monitor hood
AC adapter

Resources

Manual

Blackmagic Design Studio Camera HD

While we no longer rent this product, we do carry the Blackmagic Design Studio Camera 4K 2. You may also find alternatives in the Recommended section on the left-hand side of this page.

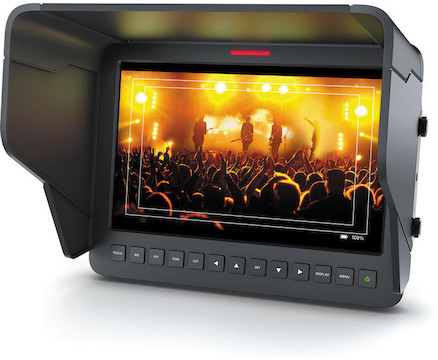

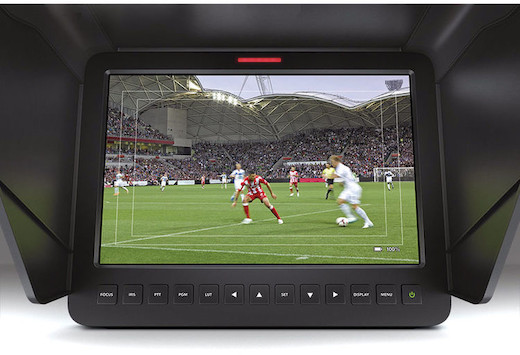

Massive 10.1-inch, 1,920 × 1,200 TFT-LCD display
Feature-rich design for multi-camera productions
Active Micro 4/3 mount
Excellent value

LR's Take

In General

BMD is on to a good idea here, astutely recognizing a video trend toward compact, affordable multi-camera shoots. It has a huge LCD and works great with the Blackmagic Atem. However, the lack of in...

Q & A

Does this rental include a 3G or 6G Optical Module?

This rental doesn’t include a 3G or 6G Optical Module. If you’d like one, please request it in the Special Instructions box during checkout.

Does this camera support servo zoom?

When using a LANC zoom controller, such as the Libec ZC-LP, servo zoom control is available for the following active MFT-mount lenses: Olympus 12-50mm F/3.5-6.3 Zuiko EZ, Olympus 14-42mm F/3.5-6 EZ, and Panasonic PZ 45-175mm F/4.0-5.6 OIS.

Does this rental include DaVinci Resolve?

Due to copyright, we can’t include DaVinci Resolve with rentals. You may download DaVinci Resolve Lite for free here.

Does this camera include a hot shoe mount or adapter?

This camera doesn’t include a hot shoe mount or adapter. If you want to use any shoe-mountable accessories, you may rent one here.

Can I mount this camera to a tripod?

Yes. Please note that this camera only has 3/8”-16 tripod threads. If you want to mount this camera to a tripod, that tripod must have a 3/8”-16 screw.

What’s this camera’s crop factor?

Any lens’s focal length, no matter what brand or mount, will be multiplied by 2.88 when used with this camera. For example, a 50mm lens on this camera will look like a 144mm lens would on a full-frame camera. For more information, please consult this crop-factor article.

Does this camera have a built-in recording function?

This camera doesn’t have a built-in recording function. You’ll need to rent an external video recorder to capture footage.

Does this rental include a lens?

This rental doesn’t include a lens.

Specifications

Brand	Blackmagic
Camcorder Type	Cinema
Camera Type	Camcorder
Imaging	Sensor Type: S16 Size: 12.48 × 7.02mm Crop Factor Approximately x2.88 Dynamic Range 13 Stops

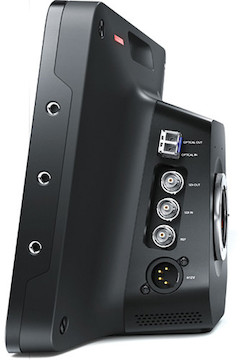

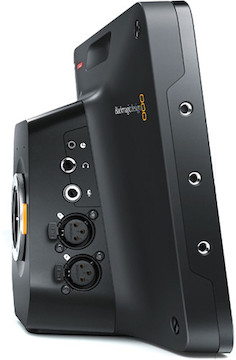

Inputs/Outputs	Video Input 1x 1.5G/3G SDI Video Output 1x 1.5G/3G SDI Audio Inputs 1x XLR Analog Mic/Line switchable 48+ Supported Additional Inputs/Outputs Remote: 1x 2.5mm LANC Reference: Tri-Sync or Black Burst Optical Fiber I/O (module by request)
Item Type	Camera
Monitoring	Display Screen 10.1” TFT-LCD 1920 × 1200 Display Type Fullscreen Live View Fullscreen Program View Audio Camera/Input Fixed Wing Plug compatible for talkback/audio Tally Front/Rear
Mount	Micro 4/3rds
Physical	Dimensions (WxDxH) 10.05” x 4.47” x 7.66” Weight 4.4 lbs. Accessory Mounts Tripod: 2x ⅜” Tripod Mount Other: 4x Top ¼”-20 UNC threaded mounting points, 6x Side ¼”-20 UNC threaded mounting points (3x left, 3x right)
Power Supply	AC Adapter/Charger 4-pin XLR 12-24V Battery Internal only Operation Time Approximately 3.5 hours Recharge Time Approximately 5 hours
Video Processing	Supported Formats 720p: 50/59.94/60 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080i: 50/59.94/60 SDI Compliance SMPTE 292M SMPTE 424M Level B CCU Compatibility ATEM

See All

Includes

Blackmagic Design Studio Camera
Monitor hood
AC adapter

Specifications

Brand	Blackmagic
Camcorder Type	Cinema
Camera Type	Camcorder
Imaging	Sensor Type: S16 Size: 12.48 × 7.02mm Crop Factor Approximately x2.88 Dynamic Range 13 Stops
Inputs/Outputs	Video Input 1x 1.5G/3G SDI Video Output 1x 1.5G/3G SDI Audio Inputs 1x XLR Analog Mic/Line switchable 48+ Supported Additional Inputs/Outputs Remote: 1x 2.5mm LANC Reference: Tri-Sync or Black Burst Optical Fiber I/O (module by request)
Item Type	Camera
Monitoring	Display Screen 10.1” TFT-LCD 1920 × 1200 Display Type Fullscreen Live View Fullscreen Program View Audio Camera/Input Fixed Wing Plug compatible for talkback/audio Tally Front/Rear
Mount	Micro 4/3rds
Physical	Dimensions (WxDxH) 10.05” x 4.47” x 7.66” Weight 4.4 lbs. Accessory Mounts Tripod: 2x ⅜” Tripod Mount Other: 4x Top ¼”-20 UNC threaded mounting points, 6x Side ¼”-20 UNC threaded mounting points (3x left, 3x right)
Power Supply	AC Adapter/Charger 4-pin XLR 12-24V Battery Internal only Operation Time Approximately 3.5 hours Recharge Time Approximately 5 hours
Video Processing	Supported Formats 720p: 50/59.94/60 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080i: 50/59.94/60 SDI Compliance SMPTE 292M SMPTE 424M Level B CCU Compatibility ATEM

See All

Resources

Manual

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$17.00	$72.00	$89.00	$29.67
4 days	$18.00	$77.00	$95.00	$23.75
7 days	$24.00	$103.00	$127.00	$18.14
10 days	$32.00	$139.00	$171.00	$17.10
14 days	$42.00	$180.00	$222.00	$15.86
21 days	$56.00	$242.00	$298.00	$14.19
30 days	$71.00	$304.00	$375.00	$12.50
45 days	$92.00	$397.00	$489.00	$10.87
60 days	$108.00	$464.00	$572.00	$9.53
90 days	$139.00	$597.00	$736.00	$8.18

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$11.00	$72.00	$83.00	$27.67
4 days	$12.00	$77.00	$89.00	$22.25
7 days	$16.00	$103.00	$119.00	$17.00
10 days	$22.00	$139.00	$161.00	$16.10
14 days	$28.00	$180.00	$208.00	$14.86
21 days	$38.00	$242.00	$280.00	$13.33
30 days	$47.00	$304.00	$351.00	$11.70
45 days	$62.00	$397.00	$459.00	$10.20
60 days	$72.00	$464.00	$536.00	$8.93
90 days	$93.00	$597.00	$690.00	$7.67

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$72.00	$24.00
4 days	$77.00	$19.25
7 days	$103.00	$14.71
10 days	$139.00	$13.90
14 days	$180.00	$12.86
21 days	$242.00	$11.52
30 days	$304.00	$10.13
45 days	$397.00	$8.82
60 days	$464.00	$7.73
90 days	$597.00	$6.63
