Brand |
Blackmagic |
Camcorder Type |
Cinema |
Camera Type |
Camcorder |
Dimensions |
8″ × 8.2″ × 5.8″ |
Dynamic Range |
15 stops |
Effective Resolution |
4608 × 2592 |
Frame Rates |
23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps |
Inputs/Outputs |
Video Inputs Video Outputs- 2x BNC (12G-SDI) clean output & monitor output
|

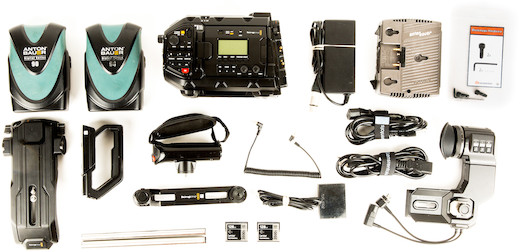

Item Type |
Package and Camera |
Microphone |
2x built-in cardioid microphones (-10dB pad and low-cut filter) |

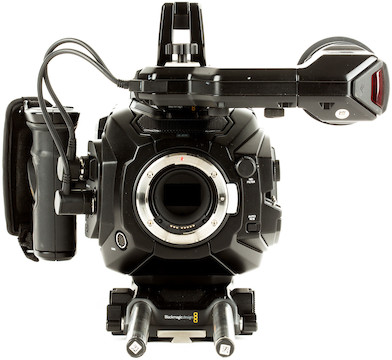

Mount |
Canon EF |
Package Type |
Blackmagic Video |

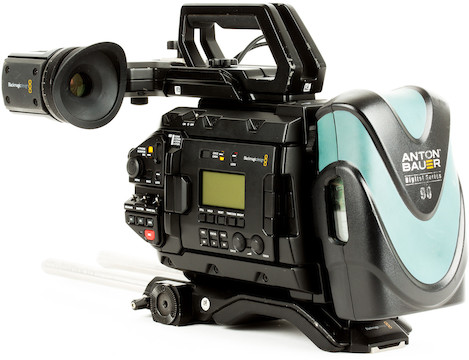

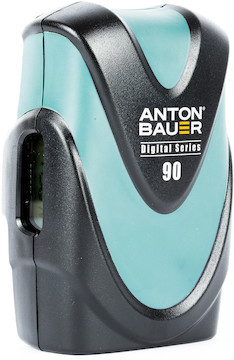

Power Input |
4-pin XLR input for external power supply or battery; 12-pin molex connector on rear battery plate |

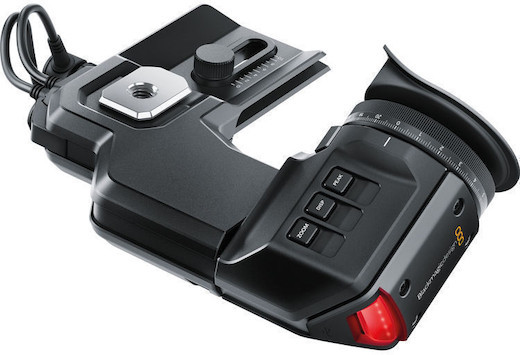

Power Output |
12V output (4-pin XLR) for EVF; 12V regulated output 12-pin molex connector |
Recording Formats |
CinemaDNG Raw (Uncompressed or Lossless 3:1/4:1 Compressed): 4608 × 2592, 4096 × 2304, 4608 × 1920, 3072 × 2560, 2048 × 1152; Apple ProRes: 4608 × 2592, 4608 × 1920, 4096 × 2304, 4096 × 2160, 3072 × 2560, 2048 × 1152, 2048 × 1080, 1920 × 1080 |
Reference |
Tri-Sync/Black Burst/Timecode |
Sensor Size |
25.34 × 14.25 mm (Super 35) |

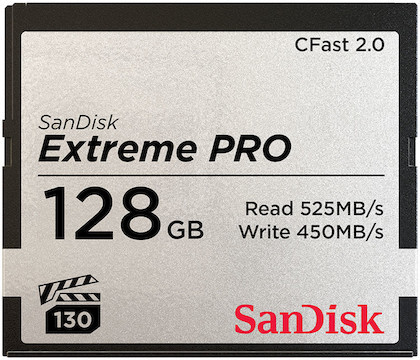

Storage Rates |
4608 × 2592: Uncompressed CinemaDNG Raw – 513MB/s, CinemaDNG Raw 3:1 – 180 MB/s, CinemaDNG Raw 4:1 – 135 MB/s; 3840 × 2160: Apple ProRes 444 XQ – 312.5 MB/s, Apple ProRes 444 – 165 MB/s, Apple ProRes 422 HQ – 110 MB/s, Apple ProRes 422 – 73.6 MB/s, Apple ProRes 422 LT – 51 MB/s, Apple ProRes Proxy – 22.4 MB/s, 1920 × 1080: Apple ProRes 444 XQ – 62.5 MB/s, Apple ProRes 444 – 41.25 MB/s, Apple ProRes 422 HQ – 27.5 MB/s, Apple ProRes 422 – 18.4 MB/s, Apple ProRes 422 LT – 12.75 MB/s, Apple ProRes Proxy – 5.6 MB/s; Rates based on 30 frames per second. |
Supported Standards |
SDI Compliance: SMPTE 292M, SMPTE 424 Level B, Draft SMPTE 2081-1, Draft SMPTE 2082-1; SDI Audio Sampling: 48 kHz and 24-bit |
USB |
USB Type C for software updates |
Weight |
5.1 lbs. |
