Blackmagic Micro Converter BiDirectional SDI/HDMI 12G

$25.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • Blackmagic Micro Converter 12G
  • AC adapter
  • Bracket
  • Thumbscrew

Resources

  • Manual
  • Blackmagic Micro Converter BiDirectional SDI/HDMI 12G

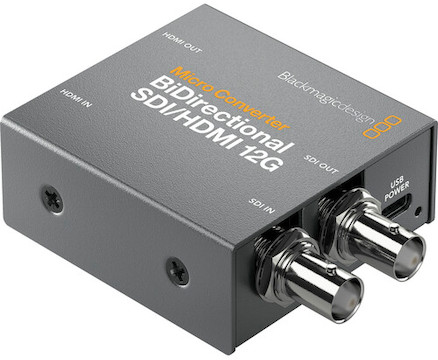

    The Blackmagic Micro Converter BiDirectional SDI/HDMI 12G is a durable pocket-sized SDI-HDMI cross-converter offering 4K60 support over SDI and HDMI. Key features include:

    • Simultaneously converts SDI to HDMI and vice versa

    • Up to DCI/UHD 4K over SDI and HDMI

    • Camera control, 3D LUTs, and timecode support

    • USB-C powered, AC adapter included

    Read More

    Q & A

  • Can this be used for camera control on any camera?
    • No. Camera control is only supported between select Blackmagic Design cameras and switchers.

    • If you have questions regarding camera control, contact us and a tech will be happy to help you determine the best gear for your shoot.

  • Specifications

    Brand

    Blackmagic

    Dimensions

    3.18 × 2.32 × 0.98″

    Inputs/Outputs

    Inputs

    • HDMI Type A
    • 12G-SDI
    • USB-C (power)
    Outputs
    • HDMI Type A
    • 12G-SDI

    Item Type

    Monitoring and Signal Converters

    Monitoring Type

    Accessories

    Power

    Supply

    • +5V USB-C adapter
    Consumption
    • 2.5 W
    Voltage Range
    • 4.4 – 5.25V DC

    Supported Formats

    SDI (8/10-Bit 4:2:2)

    • DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • 2KPsF DCI: 25/29.97/30
    • 2Kp DCI: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 1080PsF: 30/29.97/25
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 720p: 60/59.94/50
    HDMI (8/10-Bit 4:2:2)
    • DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • 1080p: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 525i: 29.97
    • 625i: 25

    Weight

    6.13 oz

    Includes

    • Blackmagic Micro Converter 12G
    • AC adapter
    • Bracket
    • Thumbscrew

    Specifications

    Brand

    Blackmagic

    Dimensions

    3.18 × 2.32 × 0.98″

    Inputs/Outputs

    Inputs

    • HDMI Type A
    • 12G-SDI
    • USB-C (power)
    Outputs
    • HDMI Type A
    • 12G-SDI

    Item Type

    Monitoring and Signal Converters

    Monitoring Type

    Accessories

    Power

    Supply

    • +5V USB-C adapter
    Consumption
    • 2.5 W
    Voltage Range
    • 4.4 – 5.25V DC

    Supported Formats

    SDI (8/10-Bit 4:2:2)

    • DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • 2KPsF DCI: 25/29.97/30
    • 2Kp DCI: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 1080PsF: 30/29.97/25
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 720p: 60/59.94/50
    HDMI (8/10-Bit 4:2:2)
    • DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • 1080p: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 525i: 29.97
    • 625i: 25

    Weight

    6.13 oz
