Canon CR-N700 PTZ 3-Camera and Controller Kit

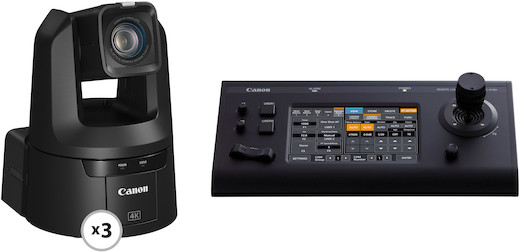

The Canon CR-N700 PTZ 3-Camera and Controller Kit consists of three CR-N700 PTZ Cameras and a RC-IP100 Joystick Controller. Key features include:

1" CMOS sensor with Dual-Pixel CMOS AF
HDMI, 3G-SDI, and IP video output
6 programmable buttons; 100 presets per camera
Ultra-responsive joystick, 7” touchscreen control panel

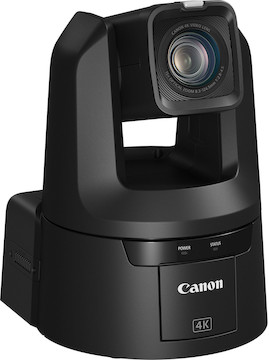

Professional-Grade PTZ Camera. The Canon CR-N700 4K PTZ Camera with 15x Zoom is a professional-grade camera designed for high-end broadcast, television-studio, and live-event applications. It’s remotely controlled, so it’s especially great on productions with small crews.

One-Inch 4K CMOS Sensor and DIGIC DV7 Processor. The one-inch 4K CMOS sensor works in tandem with the DIGIC DV7 to enable professional-quality images, easy operability, and fast performance. The CR-N700 is capable of capturing UHD 4K video at 60p in up to 4:2:2 10-bit 12G-SDI and HDMI for broadcast-standard image quality. It’s also capable of outputting 4K60p over IP. Its sensor is larger than what you normally find in PTZ cameras, and it produces beautiful pro-grade images with reduced noise, high clarity, and smooth color rendering, even when you’re shooting in low light. It also gives you pleasing bokeh at large apertures.

Dual-Pixel CMOS Autofocus. The CR-N700’s Dual-Pixel CMOS Autofocus system combines imaging and phase-difference autofocus features. This system determines the focusing position by the phase difference, enabling fast, smooth focusing. Its AF tracking is effective even when you’re zooming, panning, or tilting. It incorporates EOS Intelligent Tracking and Recognition Auto Focus (EOS iTR AF) technology, which uses deep-learning autofocus technology to lock on to a subject’s head, even if they turn away from the camera.

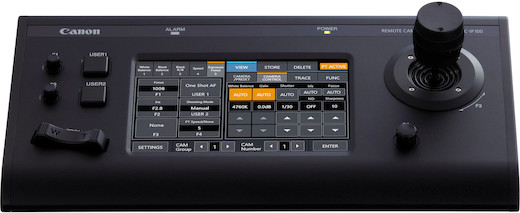

Control Up to One Hundred Supported Cameras. The Canon RC-IP100 Touchscreen PTZ Joystick Controller uses Canon’s new XC protocol to give you IP control over 99 supported Canon PTZ cameras including the CR-N700.

Smooth PTZ Movement, Advanced Remote Functionality. The RC-IP100’s ultra-responsive joystick gives you the smooth, accurate PTZ control you need for professional productions. In addition, you can remotely control, adjust, and set the pan, tilt, and zoom functions; register up to one hundred presets per camera; and manage a range of other settings and customizations from trace movement to picture quality. The trace function can store camera movements and then recall them with the push of a button.

Q & A

Why is there a warning label next to the DC input on the RC-IP100?

The Canon RC-IP100 uses a 12V power adapter, which is included with this rental, and also flagged with a matching label for your convenience.
Select compatible cameras like the Canon CR-N500 use a 24V power adapter with a similar barrel size, but that power adapter will cause permanent damage to the RC-IP100 if used by mistake.
We understand how quickly things can move during a production and decided to add our own labels to the RC-IP100 controller and power adapter to help you identify the compatible items in a pinch.

Is this controller compatible with all PTZ cameras?

No. The RC-IP100 is only compatible with select Canon PTZ cameras including the CR-N500, CR-X500, CR-N300, and CR-X300.

I lost the IP address or login information. What can I do?

If you lost the IP address or login information, follow these steps:
1. Press and hold the Reset button on the back of the camera.
2. Power on the camera.
3. Wait for the front LED to blink.
4. Release the Reset button.
5. Wait ~4 minutes for the camera to complete its boot-up sequence.

How do I monitor camera view?

You can monitor camera view via webUI, SDI / HDMI, and compatible third-party software.
This camera uses NDI HX2 protocol, so we recommend making sure all third-party software is up to date.

How do I access the camera upon initial startup?

Upon initial startup, you must follow these steps:
1. Access the camera via the webUI. The IP address is 192.168.100.1 and the Subnet is 255.255.255.0
2. Assign an account name and password.
3. Reboot the camera to log back in. You’ll be prompted to enter the initial network settings.

You can avoid advanced configuration by saving the prompted network page and using the Canon Camera Search Tool for macOS / Windows.

Specifications

Brand	Canon
Camera	Interface Communication Control LAN, Wi-Fi, Serial, IR Network Terminal LAN x1, RJ45, 1000Base-T 12G/3G-SDI OUT Terminal BNC jack x1 12GSDI & x1 3G-SDI, 0.8 Vp-p/75 Ohm SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST 272, SMPTE ST 299 compliant Embedded audio, Timecode (VITC/LTC) Gen-Lock Terminal BNC jack x1, 1.0 Vp-p/75 Ohm Timecode Terminal BNC jack x1, 1.3 Vp-p/50 Ohm or less RS-422 Terminal RJ45 connector x1 Audio Input 1 / Input 2 Terminals INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 Ohm/Att.: 20 dB Sensitivity (LINE): 4 dBu (Manual volume center, full scale -18 dB)/1 k Ohm or more Supply Voltage: 48 V DC (Bias resistance: 6.8 k Ohm) Mic Terminal 3.5mm stereo mini-jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k Ohm) Media Slot SD Card x1, microSD card slot x1 – future expansion, recording currently unavailable (February 2023) Physical Dimensions (W x H x D) 7.9 × 10.6 × 8.2″ (Excluding protrusions) Weight 9.5 lb. Video Output G-SDI 1920 × 1080: 59.94p/59.94i/50.00p/50.00i/29.97p/25.00p/23.98p (4:2:2 10-bit) 1280 × 720: 59.94p/50.00p (4:2:2 10-bit) 720×576: 50.00i (4:2:2 10-bit) 720×480: 59.94i (4:2:2 10-bit) 12G-SDI 3840 × 2160: 59.94p/50.00p/29.97p/25.00P/23.98p (4:2:2 10-bit) 1920 × 1080: 59.94p/59.94i/50.00p/50.00i/29.97p/25.00p/23.98p (4:2:2 10-bit) 1280 × 720: 59.94p/50.00p (4:2:2 10-bit) 720 × 576: 50.00i (4:2:2 10-bit) 720 × 480: 59.94i (4:2:2 10-bit) HDMI 3840 × 2160: 59.94p/50.00p/29.97p/25.00p/23.98p (4:2:2 10-bit) 1920 × 1080: 59.94p/59.94i/50.00p/50.00i/29.97p/25.00p/23.98p (4:2:2 10-bit) 1280 × 720: 59.94p/50.00p (4:2:2 10-bit) 720×576: 50.00p (4:2:2 10-bit) 720×480: 59.94p (4:2:2 10-bit) IP 3840 × 2160: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8-bit) 1920 × 1080: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8-bit) 1280 × 720: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8-bit) 640 × 360: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8-bit) Control Presets 100 (including Home position) Move Speed Pan: 0.1 to 100°/sec Tilt: 0.1 to 100°/sec Movement Range Pan: 34° (-170 to 170°) Tilt: 120° (-30 to 90°) Supported Control Protocols IP NDI VISCA Environmental Operating Temperature 32 to 104°F Storage Temperature 32 to 104°F Operating Humidity 10 to 90% (Non-Condensing) Storage Humidity 10 to 90% (Non-Condensing) Power PoE Support PoE+ 802.3bt Lens Optical Zoom Ratio 15x Focal Length 8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm) Field of View Horizontal: 73 to 5.7° Vertical: 45.2 to 3.2° Maximum Aperture f/2.8 to 4.5 Focus Control Autofocus Manual Focus Embedded Audio HDMI/SDI Camera Sensor Resolution Actual: 13.4 Megapixel Effective: 8.29 Megapixel Shutter Speed 1/3 to 1/2000 Second Max Digital Zoom 30x (in 1080p) Built-In ND Filter Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters Mfr. Model Number 6022C001
Item Type	Package, PTZ Cameras, Broadcasting Cameras, and Camera Control
Package Type	PTZ Video
Remote Controller	Physical Dimensions (L x W x H) 13.8 × 7.2 × 4.3″ Weight 4.6 lbs. Environmental Operating Temperature 32 to 104°F Power PoE Support None Power Connectors 1x Barrel / Coaxial DC Input Power 12 VDC Display Size 7" Touchscreen Yes General Number of Supported Cameras 100 Channels Supported Control Protocols Canon XC RS-422 Control Interface 1x RJ45 (IP Control) Output 1x RJ45 (RS-422) Output Other I/O 1x DE-9/DB-9 (Tally) Input/Output 1x USB Type-A (USB 3.1 / USB 3.2 Gen 1) Input Controls 1x Pan/Tilt Joystick 1x Zoom Rocker 4x Programmable Buttons 2x Multifunction Buttons Presets 100 via IP Mfr. Model Number 5231C004

Includes

Specifications

Brand	Canon
Camera	Interface Communication Control LAN, Wi-Fi, Serial, IR Network Terminal LAN x1, RJ45, 1000Base-T 12G/3G-SDI OUT Terminal BNC jack x1 12GSDI & x1 3G-SDI, 0.8 Vp-p/75 Ohm SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST 272, SMPTE ST 299 compliant Embedded audio, Timecode (VITC/LTC) Gen-Lock Terminal BNC jack x1, 1.0 Vp-p/75 Ohm Timecode Terminal BNC jack x1, 1.3 Vp-p/50 Ohm or less RS-422 Terminal RJ45 connector x1 Audio Input 1 / Input 2 Terminals INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 Ohm/Att.: 20 dB Sensitivity (LINE): 4 dBu (Manual volume center, full scale -18 dB)/1 k Ohm or more Supply Voltage: 48 V DC (Bias resistance: 6.8 k Ohm) Mic Terminal 3.5mm stereo mini-jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k Ohm or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k Ohm) Media Slot SD Card x1, microSD card slot x1 – future expansion, recording currently unavailable (February 2023) Physical Dimensions (W x H x D) 7.9 × 10.6 × 8.2″ (Excluding protrusions) Weight 9.5 lb. Video Output G-SDI 1920 × 1080: 59.94p/59.94i/50.00p/50.00i/29.97p/25.00p/23.98p (4:2:2 10-bit) 1280 × 720: 59.94p/50.00p (4:2:2 10-bit) 720×576: 50.00i (4:2:2 10-bit) 720×480: 59.94i (4:2:2 10-bit) 12G-SDI 3840 × 2160: 59.94p/50.00p/29.97p/25.00P/23.98p (4:2:2 10-bit) 1920 × 1080: 59.94p/59.94i/50.00p/50.00i/29.97p/25.00p/23.98p (4:2:2 10-bit) 1280 × 720: 59.94p/50.00p (4:2:2 10-bit) 720 × 576: 50.00i (4:2:2 10-bit) 720 × 480: 59.94i (4:2:2 10-bit) HDMI 3840 × 2160: 59.94p/50.00p/29.97p/25.00p/23.98p (4:2:2 10-bit) 1920 × 1080: 59.94p/59.94i/50.00p/50.00i/29.97p/25.00p/23.98p (4:2:2 10-bit) 1280 × 720: 59.94p/50.00p (4:2:2 10-bit) 720×576: 50.00p (4:2:2 10-bit) 720×480: 59.94p (4:2:2 10-bit) IP 3840 × 2160: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8-bit) 1920 × 1080: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8-bit) 1280 × 720: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8-bit) 640 × 360: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8-bit) Control Presets 100 (including Home position) Move Speed Pan: 0.1 to 100°/sec Tilt: 0.1 to 100°/sec Movement Range Pan: 34° (-170 to 170°) Tilt: 120° (-30 to 90°) Supported Control Protocols IP NDI VISCA Environmental Operating Temperature 32 to 104°F Storage Temperature 32 to 104°F Operating Humidity 10 to 90% (Non-Condensing) Storage Humidity 10 to 90% (Non-Condensing) Power PoE Support PoE+ 802.3bt Lens Optical Zoom Ratio 15x Focal Length 8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm) Field of View Horizontal: 73 to 5.7° Vertical: 45.2 to 3.2° Maximum Aperture f/2.8 to 4.5 Focus Control Autofocus Manual Focus Embedded Audio HDMI/SDI Camera Sensor Resolution Actual: 13.4 Megapixel Effective: 8.29 Megapixel Shutter Speed 1/3 to 1/2000 Second Max Digital Zoom 30x (in 1080p) Built-In ND Filter Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters Mfr. Model Number 6022C001
Item Type	Package, PTZ Cameras, Broadcasting Cameras, and Camera Control
Package Type	PTZ Video
Remote Controller	Physical Dimensions (L x W x H) 13.8 × 7.2 × 4.3″ Weight 4.6 lbs. Environmental Operating Temperature 32 to 104°F Power PoE Support None Power Connectors 1x Barrel / Coaxial DC Input Power 12 VDC Display Size 7" Touchscreen Yes General Number of Supported Cameras 100 Channels Supported Control Protocols Canon XC RS-422 Control Interface 1x RJ45 (IP Control) Output 1x RJ45 (RS-422) Output Other I/O 1x DE-9/DB-9 (Tally) Input/Output 1x USB Type-A (USB 3.1 / USB 3.2 Gen 1) Input Controls 1x Pan/Tilt Joystick 1x Zoom Rocker 4x Programmable Buttons 2x Multifunction Buttons Presets 100 via IP Mfr. Model Number 5231C004
