Canon EOS C200 PL Cinema Camera

$160.00

7 Day

Rental

Coming Soon!

Renting this item will adjust your rental dates.

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Canon EOS C200 PL
BP-A30 battery
CG-A20 charger
CA-CP200B power adapter
CA-A10 AC adapter
LM-V1 LCD monitor
UN-5 unit cable
HDU-2 handle unit

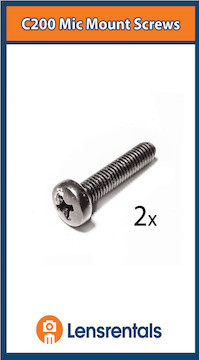

Mic mount
GR-V1 camera grip

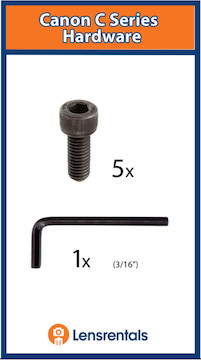

Canon C hardware kit

Resources

Manual

Memory Card Compatibility List

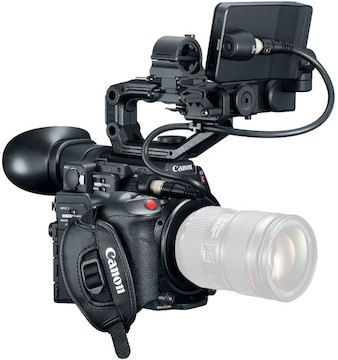

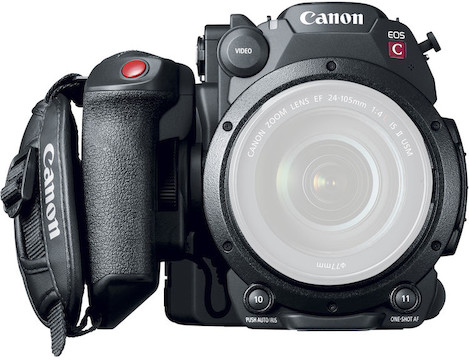

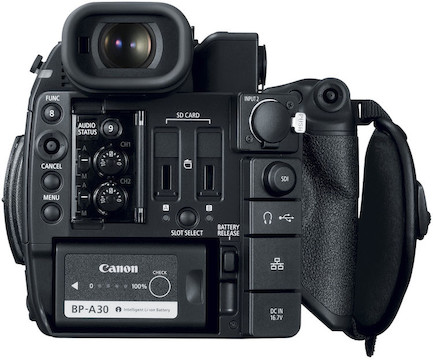

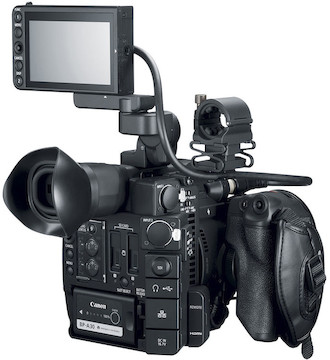

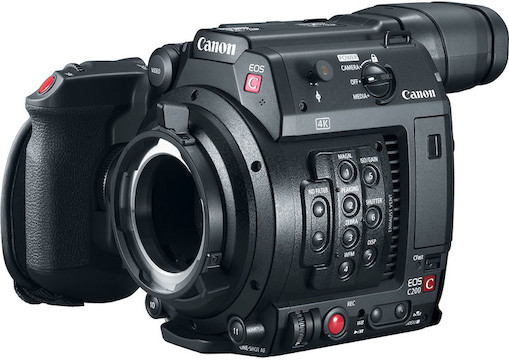

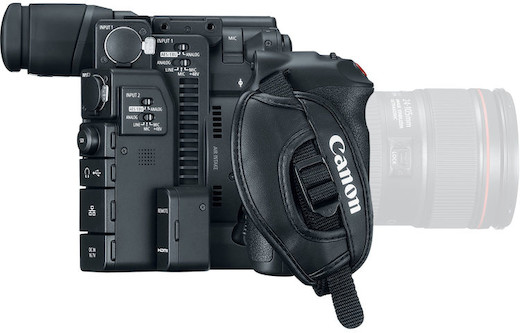

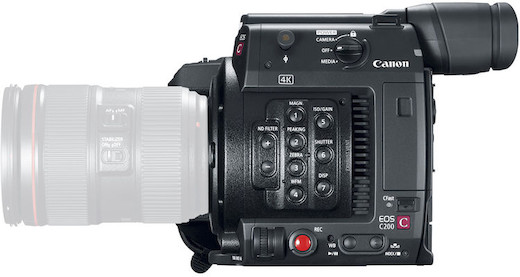

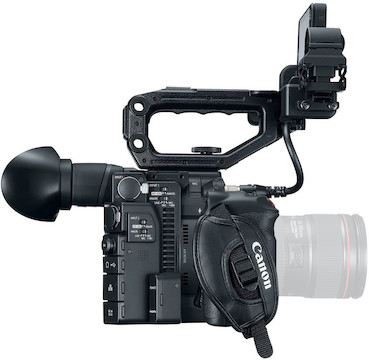

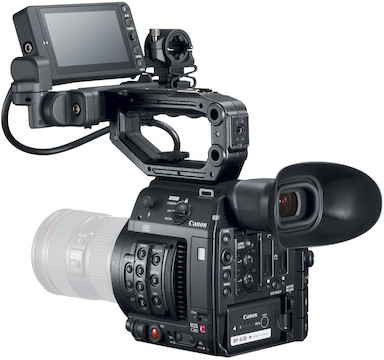

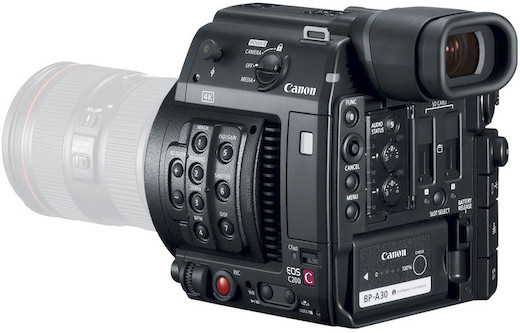

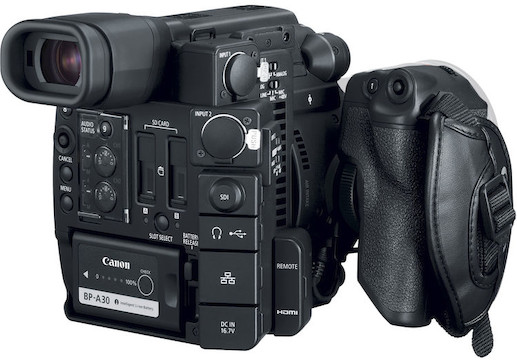

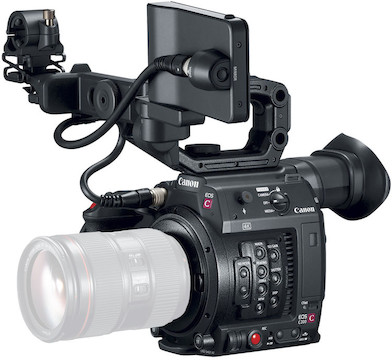

Canon EOS C200 PL Cinema Camera

The Canon EOS 200 PL is a professional-grade 4K cinema camera designed for run-and-gun productions. Key features include:

8.85MP 4K DCI Super 35 CMOS sensor
12-bit/10-bit 4K RAW or 4:2:0 8-bit in 4K UHD/2K
4K RAW using Cfast or 4K UHD/HD using dual SDXC
Internal slow motion support up to 120p in full HD

Ryan's Take

Senior Video Tech

There are a lot of things to love about this camera. In fact, Canon’s gorgeous color science, high-quality internal 4K codec, lightweight design for better handheld operation, and cinema-standard P...

Q & A

Is this camera compatible with light-duty gimbals like the Movi M5 or the Ronin-M?

While a combination of skill, compact lenses, and/or extension arms may make it possible to accurately balance the C200 on gimbals designed for DSLR and Mirrorless systems, we only recommend flying this camera on larger gimbals like the Movi Pro.

Does this camera output 4K via SDI?

No. The C200 is not capable of outputting 4K video over SDI. Currently 4K output is limited to HDMI. For full output specs, click “diagrams” in the resources section of this page.

Are there any known issues with this camera?

Canon has made the side grip’s connection to the camera both very stiff, and very sensitive. Because of this, one must insert the connector into the camera’s port with far more force than anyone would ever think reasonable. A good measure of connection adequacy is to look at the connection from the side. When fully seated, there should not be any gold plating from the connector showing, so keep pushing until it is completely covered. If the camera ever begins to malfunction, or the grip stops working, simply disconnect it and follow the directions above.

Does this camera record 4K internally?

Yes but it’s a little complicated. If you are hoping to shoot 4K DCI, a CFast 2.0 card will be required and you will be limited to Canon’s Cinema RAW Light codec.
If you are hoping to shoot 4K UHD, you will be required to shoot to SDXC cards and you will have the option of a MP4 or MXF container.

Specifications

Brand	Canon
Camcorder Type	Cinema
Camera Type	Camcorder
Imaging	Sensor Type: CMOS Size: 24.6 × 13.8 Effective Pixels: 8.85 MP Maximum Resolution 4096 × 2160 Crop Factor Approximately x1.5 Bit Depth Raw: 10-bit/12-bit MP4/XF-AVC: 4:2:0 8-bit External 4:2:2 10-bit (additional recording device required) ISO Dynamic Range: Approximately 13 stops Default Sensitivity Range: 160-25,600 Expanded Sensitivity Range: 100-102,400 Native ISO: 800
Inputs/Outputs	Audio Inputs 2x XLR 3-pin MIC 3.5mm mini-jack Monaural mic Audio Output Headphone out 3.5mm mini-jack Video Outputs 3G/HD-SDI BNC HDMI Additional Inputs/Outputs USB: mini-B Remote: 2.5mm sub-mini jack Ethernet Video terminal (Canon unit control) Camera grip connection terminal (Canon proprietary)
Item Type	Camera and Cinema Cameras
Monitoring	Viewfinder 0.46” 100% FOV LCD Panel 4” capacitive touchscreen Internal Microphone Monaural
Mount	PL Mount
Physical	Dimensions (WxHxD) Camera Unit: 5.7” x 6” x 7 ” Camera Unit with accessories: 1.1’ x 10.8” x 10.8” Weight Camera Unit: Approximately 3.2 lbs. Camera Unit with accessories: Approximately 6.1 lbs. Accessory Mounts: Tripod:¼-20 & ⅜-16 Additional: ¼-20 compatible modular attachment points
Power Supply	AC Adapter CA-A10 Battery Type: BP-A30 (included)/BP-A60 (available as a separate rental item) Operating Time: Approximately 125 min (BP-A30)/270 min. (BP-A60) Recharge Time: Approximately 170 min. (BP-A30)/300 min. (BP-A60)
Recording	Media 1x Cfast 2.0 VPG-130 (RAW only) 2x SDXC (MP4/XF-AVC) Formats Video: RAW, MPEG-4 AVC/H.264 Audio: Linear PCM, MPEG-4 AAC-LC File: CRM, MP4, MXF Modes 1 Gbps (RAW): 4096×2160 10-bit (50p/59.94p)/12-bit (23.98p/24p/25p/29.97p) 160 Mbps (MXF): 3840×2160 (23.98p/24p/25p/29.97p/59.94p/50i) 45 Mbps (MXF): 1920×1080 (23.98p/24p/25p/29.97p/50p/59.94p/50i/59.94i) 150 Mbps (MP4): 3840×2160 (23.98p/24p/25p/29.97p/50p/59.94p) 35 Mbps (MP4): 1920×1080 (23.98p/24p/25p/29.97p/50p/59.94p) Approximate Record Times 1 Gbps: 0.12 Min/GB 160 Mbps: 0.82 Min/GB 150 Mbps: 0.86 Min/GB 45 Mbps: 2.93 Min/GB 35 Mbps: 3.79 Min/GB Special Recording Modes Slow Motion Recording (1920×1080 up to 120P) Pre-Recording Frame Recording Interval Recording

See All

Includes

Canon EOS C200 PL
BP-A30 battery
CG-A20 charger
CA-CP200B power adapter
CA-A10 AC adapter
LM-V1 LCD monitor
UN-5 unit cable
HDU-2 handle unit
Mic mount
GR-V1 camera grip
Canon C hardware kit

Specifications

Brand	Canon
Camcorder Type	Cinema
Camera Type	Camcorder
Imaging	Sensor Type: CMOS Size: 24.6 × 13.8 Effective Pixels: 8.85 MP Maximum Resolution 4096 × 2160 Crop Factor Approximately x1.5 Bit Depth Raw: 10-bit/12-bit MP4/XF-AVC: 4:2:0 8-bit External 4:2:2 10-bit (additional recording device required) ISO Dynamic Range: Approximately 13 stops Default Sensitivity Range: 160-25,600 Expanded Sensitivity Range: 100-102,400 Native ISO: 800
Inputs/Outputs	Audio Inputs 2x XLR 3-pin MIC 3.5mm mini-jack Monaural mic Audio Output Headphone out 3.5mm mini-jack Video Outputs 3G/HD-SDI BNC HDMI Additional Inputs/Outputs USB: mini-B Remote: 2.5mm sub-mini jack Ethernet Video terminal (Canon unit control) Camera grip connection terminal (Canon proprietary)
Item Type	Camera and Cinema Cameras
Monitoring	Viewfinder 0.46” 100% FOV LCD Panel 4” capacitive touchscreen Internal Microphone Monaural
Mount	PL Mount
Physical	Dimensions (WxHxD) Camera Unit: 5.7” x 6” x 7 ” Camera Unit with accessories: 1.1’ x 10.8” x 10.8” Weight Camera Unit: Approximately 3.2 lbs. Camera Unit with accessories: Approximately 6.1 lbs. Accessory Mounts: Tripod:¼-20 & ⅜-16 Additional: ¼-20 compatible modular attachment points
Power Supply	AC Adapter CA-A10 Battery Type: BP-A30 (included)/BP-A60 (available as a separate rental item) Operating Time: Approximately 125 min (BP-A30)/270 min. (BP-A60) Recharge Time: Approximately 170 min. (BP-A30)/300 min. (BP-A60)
Recording	Media 1x Cfast 2.0 VPG-130 (RAW only) 2x SDXC (MP4/XF-AVC) Formats Video: RAW, MPEG-4 AVC/H.264 Audio: Linear PCM, MPEG-4 AAC-LC File: CRM, MP4, MXF Modes 1 Gbps (RAW): 4096×2160 10-bit (50p/59.94p)/12-bit (23.98p/24p/25p/29.97p) 160 Mbps (MXF): 3840×2160 (23.98p/24p/25p/29.97p/59.94p/50i) 45 Mbps (MXF): 1920×1080 (23.98p/24p/25p/29.97p/50p/59.94p/50i/59.94i) 150 Mbps (MP4): 3840×2160 (23.98p/24p/25p/29.97p/50p/59.94p) 35 Mbps (MP4): 1920×1080 (23.98p/24p/25p/29.97p/50p/59.94p) Approximate Record Times 1 Gbps: 0.12 Min/GB 160 Mbps: 0.82 Min/GB 150 Mbps: 0.86 Min/GB 45 Mbps: 2.93 Min/GB 35 Mbps: 3.79 Min/GB Special Recording Modes Slow Motion Recording (1920×1080 up to 120P) Pre-Recording Frame Recording Interval Recording

See All

Resources

Manual

Memory Card Compatibility List

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$27.00	$112.00	$139.00	$46.33
4 days	$29.00	$120.00	$149.00	$37.25
7 days	$39.00	$160.00	$199.00	$28.43
10 days	$53.00	$216.00	$269.00	$26.90
14 days	$68.00	$280.00	$348.00	$24.86
21 days	$92.00	$376.00	$468.00	$22.29
30 days	$115.00	$472.00	$587.00	$19.57
45 days	$150.00	$616.00	$766.00	$17.02
60 days	$176.00	$720.00	$896.00	$14.93
90 days	$226.00	$928.00	$1154.00	$12.82

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$18.00	$112.00	$130.00	$43.33
4 days	$20.00	$120.00	$140.00	$35.00
7 days	$26.00	$160.00	$186.00	$26.57
10 days	$35.00	$216.00	$251.00	$25.10
14 days	$46.00	$280.00	$326.00	$23.29
21 days	$61.00	$376.00	$437.00	$20.81
30 days	$77.00	$472.00	$549.00	$18.30
45 days	$100.00	$616.00	$716.00	$15.91
60 days	$117.00	$720.00	$837.00	$13.95
90 days	$151.00	$928.00	$1079.00	$11.99

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$112.00	$37.33
4 days	$120.00	$30.00
7 days	$160.00	$22.86
10 days	$216.00	$21.60
14 days	$280.00	$20.00
21 days	$376.00	$17.90
30 days	$472.00	$15.73
45 days	$616.00	$13.69
60 days	$720.00	$12.00
90 days	$928.00	$10.31
