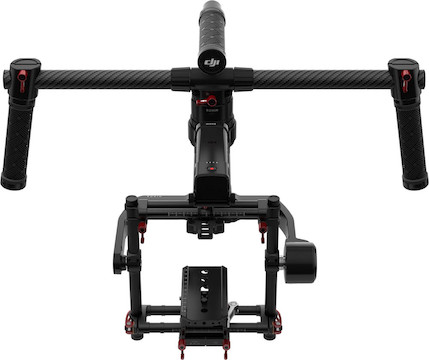

DJI Ronin-MX 3-Axis Gimbal Stabilizer

DJI Ronin-MX 3-Axis Gimbal Stabilizer


The used Ronin-MX from DJI is dual-use gimbal suitable both for mounting on the Matrice 600 aerial platform as well as deployment closer to the ground.

Read More

These are also available separately:

In case you need it:

Specifications

Brand

DJI

Camera Support Type

Stabilizer

Item Type

Stabilizer

Performance

Maximum Payload

  • 10 lbs.
Angular Vibration Range
  • ± 0.02°
Maximum Rotation Speed
  • Pan axis: 200°/s
  • Tilt axis: 100°/s
  • Roll axis: 30°/s
Controlled Rotation Range
  • Pan axis control: 360° continuous rotation
  • Tilt axis control: +45° to -135°
  • Roll axis control: ±25°
Operation Modes
  • Underslung
  • Upright
  • Briefcase
  • Aerial
  • Jib
  • Wirecam

Physical

Dimensions (W x D x H)

  • Without handlebar: 280 mm (W) x 370 mm (D)x 340 mm (H)
  • With handlebar: 560 mm (W) x 370 mm (D) x 440 mm (H)
Weight
  • Including handle bar: 6.11 lbs.
  • Including vibration absorber: 4.74 lbs.

Power Supply

Battery

  • Type: DJI Intelligent Battery for Ronin-M / MX
  • Output: 1580 mAh-14.4 V
Charger
  • Type: DJI Ronin-M / MX Charger (1580mAh)
Operating Time
  • Maximum of 3 hours
Accessory Powering
  • 12V Regulated P-Tap x 2, USB 500 mW x 1, DJI Lightbridge x 1
