DJI Transmission High-Bright Monitor Combo (V-Mount)

DJI Transmission High-Bright Monitor Combo (V-Mount)

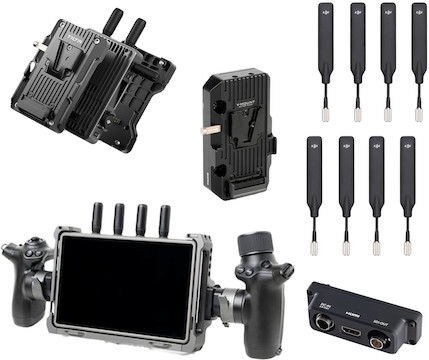

This DJI Transmission High-Bright Monitor Combo (V-Mount) is a complete bundle configuration based around the high-definition DJI Wireless Video Transmitter. The DJI Wireless Video Transmitter can pair with up to 2 receivers simultaneously in control mode, and in broadcast mode, it can transmit to unlimited receivers with a slightly lower performance. This item incorporates O3 Pro video transmission technology, which offers an incredible 20,000’ on-ground transmission distance. It also supports transmission at 1080p60 with a max bitrate of 50 Mb/s as well as live audio monitoring at 16-bit 48 kHz, ensuring an unmatched remote visual and audio monitoring experience. This kit provides you with a 7-inch monitor, eight total antennas, a V-Mount battery plate and battery module, handgrips, and more! Feel free to click any of the highlighted links below for additional information and specifications.

The DJI Transmission High-Bright Monitor Combo (V-Mount) includes:

Please Note: This rental will not include V-Mount battery options. Please refer to the Recommended section on your screen, or click here for more!

Q & A

  • Does this rental include V-Mount batteries?
    • Nah. You can find a few selections in the recommended section on your screen, or click here for more!

  • Specifications

    Brand

    DJI

    Item Type

    Monitoring

    Monitoring Type

    Wireless

    Transmitter

    Dimensions

    • 5 × 3.4 × 1″
    Weight
    • 12.3 oz.
    IP rating
    • None
    Certifications
    • CE, FCC
      (as per manufacturer)
    Operating Temperature
    • 22-77°F
    Mounting
    • 1 x cold shoe
    DC input power
    • 6-18V DC
    Power Consumption
    • 11W
    Video Format
    • HDMI/SDI (10-bit 4:2:2 YCC)
    Video Resolution
    • 1080p: 60/59.94/50/30/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    Audio Format
    • 16-bit 48kHz PCM audio
    Wireless Video Compression
    • Compressed
    Antenna Ports
    • 2 RP-SMA female
    Wireless Range
    • 3.7 miles
    # of Channels
    • 23
    Channel Bandwidth
    • 40 MHz
    Non-DFS Frequency Range
    • 2.4-2.48 GHz
    • 5.15-5.25 GHz
    • 5.72-5.85 GHz
    DFS Frequency Range
    • 5.25-5.35 GHz
    • 5.47-5.6 GHz
    • 5.65-5.72 GHz
    Latency
    • 68 ms
    RF Power
    • < 33 dBm
    Wi-Fi
    • Wi-Fi 5 (802.11ac)
    • Dual-Band (2.4 & 5 GHz)
    Encryption
    • 256-bit AES
    Power I/O
    • USB-C input
    • Barrel input
    Video I/O
    • BNC (3G-SDI) input
    • HDMI 1.4 input
    • BNC (3G-SDI) loop output

    Specifications

    Brand

    DJI

    Item Type

    Monitoring

    Monitoring Type

    Wireless

    Transmitter

    Dimensions

    • 5 × 3.4 × 1″
    Weight
    • 12.3 oz.
    IP rating
    • None
    Certifications
    • CE, FCC
      (as per manufacturer)
    Operating Temperature
    • 22-77°F
    Mounting
    • 1 x cold shoe
    DC input power
    • 6-18V DC
    Power Consumption
    • 11W
    Video Format
    • HDMI/SDI (10-bit 4:2:2 YCC)
    Video Resolution
    • 1080p: 60/59.94/50/30/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    Audio Format
    • 16-bit 48kHz PCM audio
    Wireless Video Compression
    • Compressed
    Antenna Ports
    • 2 RP-SMA female
    Wireless Range
    • 3.7 miles
    # of Channels
    • 23
    Channel Bandwidth
    • 40 MHz
    Non-DFS Frequency Range
    • 2.4-2.48 GHz
    • 5.15-5.25 GHz
    • 5.72-5.85 GHz
    DFS Frequency Range
    • 5.25-5.35 GHz
    • 5.47-5.6 GHz
    • 5.65-5.72 GHz
    Latency
    • 68 ms
    RF Power
    • < 33 dBm
    Wi-Fi
    • Wi-Fi 5 (802.11ac)
    • Dual-Band (2.4 & 5 GHz)
    Encryption
    • 256-bit AES
    Power I/O
    • USB-C input
    • Barrel input
    Video I/O
    • BNC (3G-SDI) input
    • HDMI 1.4 input
    • BNC (3G-SDI) loop output
