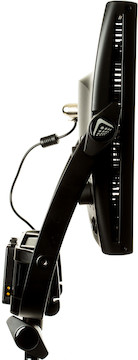

Litepanels Astra 6x Bi-Color 1x1 LED Panel w/ AB Plate
Includes
- Litepanels Astra 6x 1×1 w/Yoke

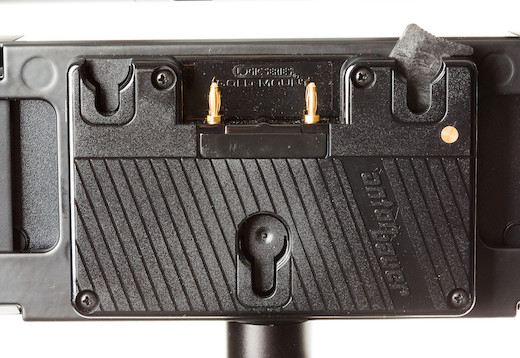

- Anton Bauer Gold Mount Battery Bracket

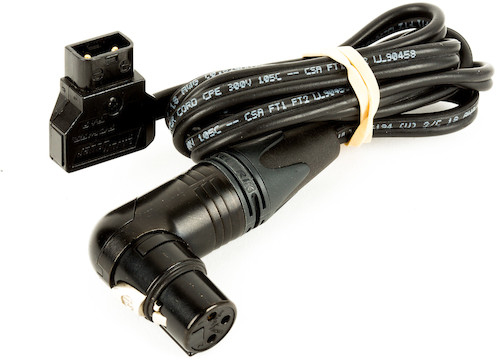

- D-Tap to 3-Pin XLR Cable
- AC Adapter with 6-ft. power cable

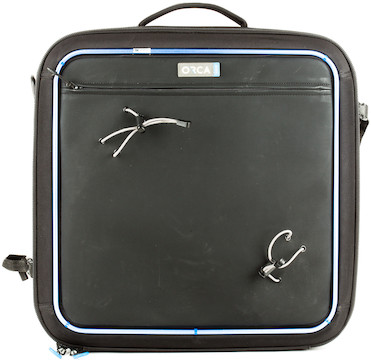

- Carrying case
Recommended:
Alternatives
Flags
Accessories
Chargers
Stands
Batteries
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available 05/12/25
Available 05/12/25
Available Tomorrow
Available Tomorrow
Available Today
Available Today
Coming Soon!
Coming Soon!
Coming Soon!
Coming Soon!
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today
Available Today

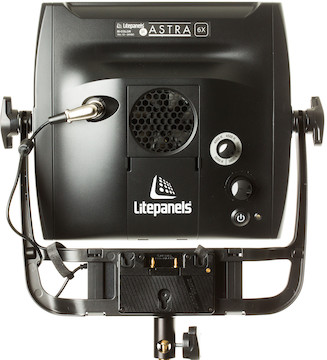

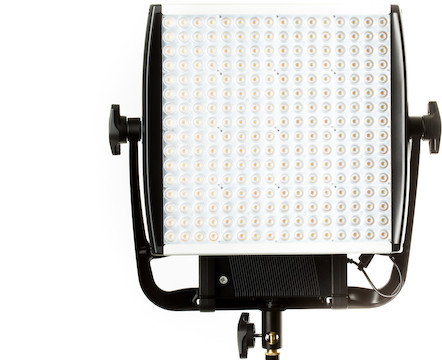

Litepanels Astra 6x Bi-Color 1x1 LED Panel w/ AB Plate
The Litepanels Astra 6x Bi-Color LED 1×1 Panel is an LED continuous light source that’s one-third brighter than the Astra 4x Bi-Color 1×1. Key features include:
588 fc/6330 lux @ 5.0’ at 5600K
One-third brighter than the Astra 4x Bi-Color 1×1
Variable tungsten-to-daylight balance
Dual cooling modes and user-controlled dimming
Brighter Output. The Litepanels Astra 6x Bi-Color LED 1×1 Panel’s output is one-third brighter than that of the Astra 4x Bi-Color 1×1, and a whopping six-times brighter than the original Litepanels 1×1 LED Flood. There’s 100-0% dimming capability for dialing in just the right amount of light.

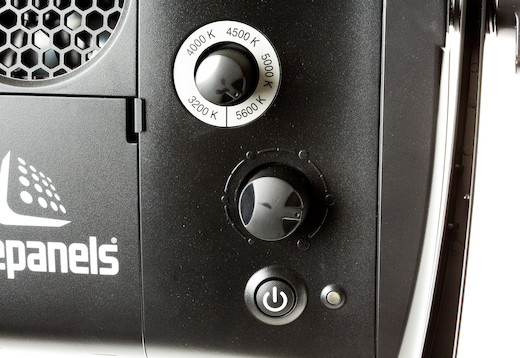

Variable Tungsten to Daylight Balance. With the turn of a knob, you can adjust the Astra 6x Bi-Color LED 1×1 Panel’s color temperature with negligible color shift. This allows better balancing of ambient light to ensure you’re getting the color you prefer.

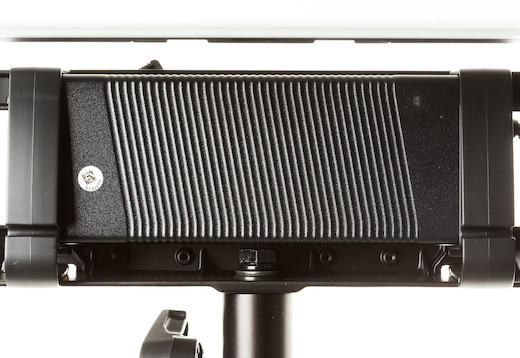

Dual Cooling Modes. The Astra 6x uses a nearly silent fan unit to combat heat. The fan runs when light output is at full power, but you can turn the fan off and use the lights at half power if you need absolute silence.
Optional DC Power. Like the previous-generation Litepanels 1×1, the Astra line can be powered via Gold Mount batteries. Our Astras come with the Anton Bauer Gold Mount Battery Bracket pre-attached, so all you’ll need is an Anton Bauer Digital 90 Gold Mount Battery and Anton Bauer Twin 60 Charger (separate rental items).
Optional Bluetooth Control. When used with the optional Litepanels Astra Bluetooth Module, the Astra transforms into a smart device, giving you remote control of its output via an iOS device. You can also create and save light groups for quick recall.
Simon's Take
Photo Tech
Experience: Field use. Take: I’ve used these lights on multiple shoots. Great light for a small to no crew setting. The color of the light is always consistent and the light’s build makes it easy t...
Experience: Field use.
Take: I’ve used these lights on multiple shoots. Great light for a small to no crew setting. The color of the light is always consistent and the light’s build makes it easy to move it from point A to point B. Perfect light for almost any situation. Shooting an interview? The fan noise is almost nonexistent. My favorite thing about this light is its ability to work on a single Gold Mount battery or just its optional DC power.
July 2019
Q & A
This rental doesn’t include a light stand, but you can see all our light stands for rent here.
This rental does not include a gold mount battery or charger but they are available as separate rental items.
Specifications
| Beam Angle | 46° |
| Brand | Litepanels |
| Color Mode | Bi-Color |
| Color Range | Approximately 3200-5600K |
| DMX | Yes, with optional adapter |
| Dimensions | 16.3″ × 17.7″ × 5.3″ |
| Dimming | 0-100% |
| Fan Cooled | Yes, Ultra-quiet active/convection cooling or fan off |
| Item Type | Lighting and Bi-Color Lights |
| Lighting Type | Continuous Lighting |
| Material | Aluminum |
| Mount | Yoke with 5/8" (16mm) receiver |
| Operating Voltage | 100-240 VAC 50/60 Hz with included AC adapter; 13-24 VDC with optional battery |
| Photometrics | Daylight: 588 fc / 6330 lux @ 5.0’ (1.5m); Tungsten: 528 fc / 5685 lux @ 5.0’ (1.5m) |
| Power Cord | 3-Pin XLR |
| Power Draw | 105 W |
| Weight | 7.0 lbs. |
Includes
- Litepanels Astra 6x 1×1 w/Yoke
- Anton Bauer Gold Mount Battery Bracket
- D-Tap to 3-Pin XLR Cable
- AC Adapter with 6-ft. power cable
- Carrying case
Specifications
| Beam Angle | 46° |
| Brand | Litepanels |
| Color Mode | Bi-Color |
| Color Range | Approximately 3200-5600K |
| DMX | Yes, with optional adapter |
| Dimensions | 16.3″ × 17.7″ × 5.3″ |
| Dimming | 0-100% |
| Fan Cooled | Yes, Ultra-quiet active/convection cooling or fan off |
| Item Type | Lighting and Bi-Color Lights |
| Lighting Type | Continuous Lighting |
| Material | Aluminum |
| Mount | Yoke with 5/8" (16mm) receiver |
| Operating Voltage | 100-240 VAC 50/60 Hz with included AC adapter; 13-24 VDC with optional battery |
| Photometrics | Daylight: 588 fc / 6330 lux @ 5.0’ (1.5m); Tungsten: 528 fc / 5685 lux @ 5.0’ (1.5m) |
| Power Cord | 3-Pin XLR |
| Power Draw | 105 W |
| Weight | 7.0 lbs. |
Pricing Chart
Lensrentals.com offers rentals ranging in length from 1 to 90 days. The shopping cart will automatically update the quoted price as you adjust the length of your rental. Our most common rental periods are shown below:
| Rental Period | Lenscap+ | Rental Price | Total Price | Price Per Day (Approx.) |
|---|---|---|---|---|
| 3 days | $21.00 | $73.00 | $94.00 | $31.33 |
| 4 days | $23.00 | $78.00 | $101.00 | $25.25 |
| 7 days | $30.00 | $100.00 | $130.00 | $18.57 |
| 10 days | $41.00 | $132.00 | $173.00 | $17.30 |
| 14 days | $53.00 | $168.00 | $221.00 | $15.79 |
| 21 days | $71.00 | $222.00 | $293.00 | $13.95 |
| 30 days | $89.00 | $276.00 | $365.00 | $12.17 |
| 45 days | $116.00 | $357.00 | $473.00 | $10.51 |
| 60 days | $135.00 | $415.00 | $550.00 | $9.17 |
| 90 days | $174.00 | $532.00 | $706.00 | $7.84 |
| Rental Period | Lenscap | Rental Price | Total Price | Price Per Day (Approx.) |
|---|---|---|---|---|
| 3 days | $14.00 | $73.00 | $87.00 | $29.00 |
| 4 days | $15.00 | $78.00 | $93.00 | $23.25 |
| 7 days | $20.00 | $100.00 | $120.00 | $17.14 |
| 10 days | $27.00 | $132.00 | $159.00 | $15.90 |
| 14 days | $35.00 | $168.00 | $203.00 | $14.50 |
| 21 days | $47.00 | $222.00 | $269.00 | $12.81 |
| 30 days | $59.00 | $276.00 | $335.00 | $11.17 |
| 45 days | $77.00 | $357.00 | $434.00 | $9.64 |
| 60 days | $90.00 | $415.00 | $505.00 | $8.42 |
| 90 days | $116.00 | $532.00 | $648.00 | $7.20 |
| Rental Period | Rental Price | Price Per Day (Approx.) |
|---|---|---|
| 3 days | $73.00 | $24.33 |
| 4 days | $78.00 | $19.50 |
| 7 days | $100.00 | $14.29 |
| 10 days | $132.00 | $13.20 |
| 14 days | $168.00 | $12.00 |
| 21 days | $222.00 | $10.57 |
| 30 days | $276.00 | $9.20 |
| 45 days | $357.00 | $7.93 |
| 60 days | $415.00 | $6.92 |
| 90 days | $532.00 | $5.91 |
Shipping Rates
Return shipping is included in the shipping price, and we include a prepaid return label with your order - all you need to do is bring it to an appropriate drop-off location when your rental is complete.
Enter shipping zip code
| FedEx 2Day | $25.00 shipping |
| FedEx Standard Overnight | $63.00 shipping |
| UPS Ground | $25.00 shipping |
| UPS Next Day Air | $73.00 shipping |
