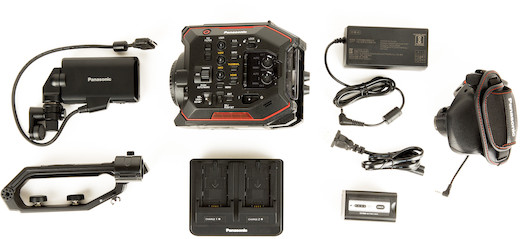

Includes

Panasonic AU-EVA1
Wooden PL mount
PL mount cap
AG-VBR59P battery
AG-BRD50P charger
AC adapter
AC adapter cable
Mic holder
Mic holder adapter
LCD monitor
LCD hood
LCD mount

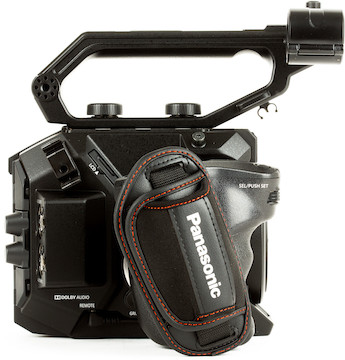

Top handle
Handgrip
Grip belt

Resources

Diagrams

Manual

NLE Support

Panasonic AU-EVA1 Cinema Camera w/ Wooden PL Mount Mod

While we no longer rent this used product, we do carry the standard Panasonic AU-EVA1 Compact 5.7K Super 35 Cinema Camera.

17.25MP Dual Sensitivity 5.7K S35 sensor
Internal 4:2:2 10-bit in 4K DCI, UHD, and full HD
MOV or AVCHD (4:2:0 8-bit) recording options or output RAW
Capture up to 60P in 4K, 120p in HD, or 240p in HD using a 4/3" sensor area

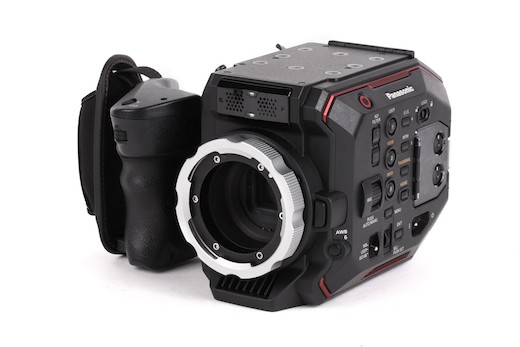

The used Panasonic AU-EVA1 Cinema Camera w/ Wooden PL Mount Mod is the same AU-EVA1 5.7K Super 35 camera with an installed Wooden PL mount. Key features include:

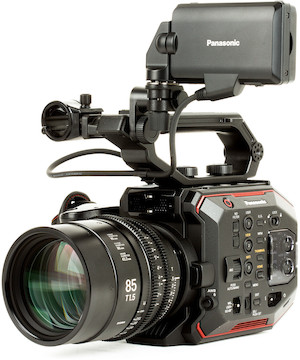

PL Lens Mount. We’ve installed the Wooden PL mount modification on the Panasonic EVA-1 to enable this camera to accept PL mount lenses. Now you can pair the EVA1 with a huge selection of cinema quality glass. Please note that a few PL mount lenses with rear protrusions of more than 33.5mm are not compatible, and this mount has no electronic communication with the camera body.

5.7K Image Sensor. The Panasonic AU-EVA1 Compact 5.7K Super 35 Cinema Camera is based around a high-resolution 5.7K sensor that can produce oversampled 4K footage. This gives you sharper images and more accurate colors than native 4K sensors.

Dual Native ISO. The 5.7K sensor incorporates Dual Native ISO, which increases sensitivity and maintains a high signal-to-noise ratio. This camera’s standard native ISO is 800, but you can switch it to 2500 if you’re shooting in low light.

V-Log and V-Gamut Capture. The EVA1 includes both V-Log and V-Gamut capture. The former gives you curve characteristics similar to those of negative film, while the latter produces a color space that’s larger than film. The inclusion of V-Log and V-Gamut lets you use the EVA1 in HDR and SDR production workflows.

Recording Modes. The EVA1 offers up to 10-bit 4:2:2 sampling, even at 4K resolutions. You can capture in-camera footage in 4K (4096 × 2160), UHD (3840 × 2160), 2K (2048 × 1080), Full-HD (1920 × 1080), and HD (1280 × 720). For ultra-fast capture, the EVA1 gives you up to 59.94 fps for 4K, up to 120 fps for 2K and Full-HD, or 240 fps with an image sensor crop.

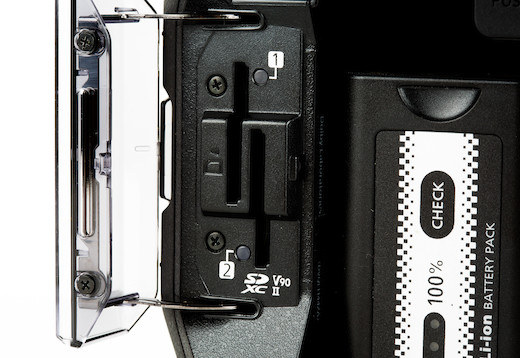

Records to SDXC Cards. This camera records to V60-rated SD cards (not included), which support all of its internal recording modes—even the 10-bit 4:2:2 AK modes. You get two card slots so that you can simultaneously record to two cards or continuously record from card to card.

Electronic Image Stabilization. The EVA1’s built-in image-stabilization system helps keep your images clear and sharp, even when you’re shooting hand-held or shoulder-mounted.

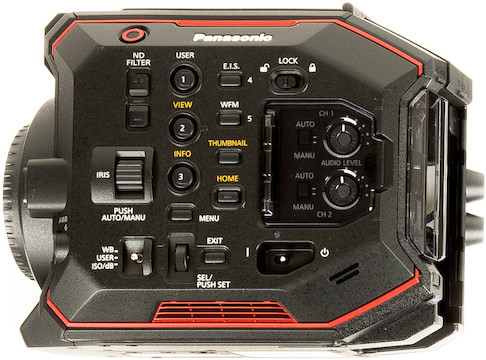

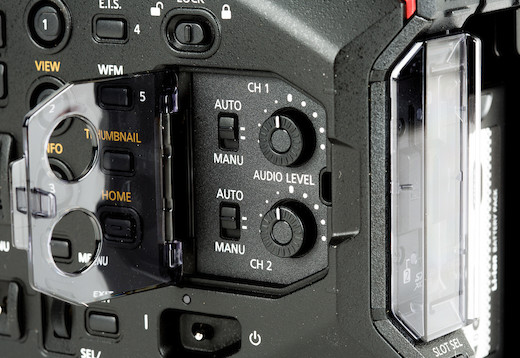

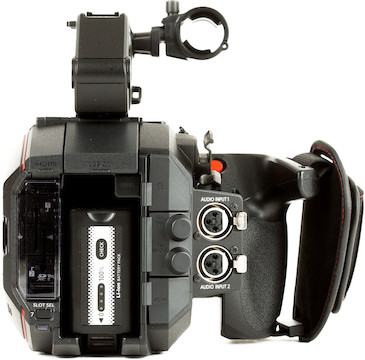

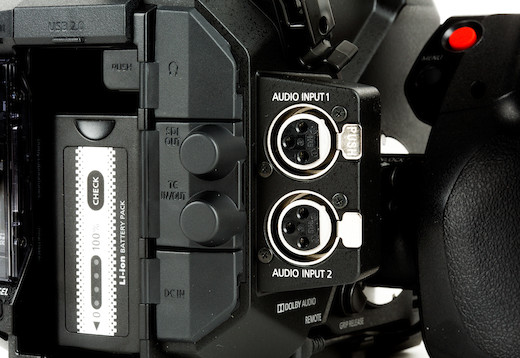

Additional Features. The EVA1 offers a range of imaging tools, including Waveform, Zebras, and Peaking. It gives you focus squares to help you achieve critical focus. You get dual XLR audio inputs; independently adjustable, 4K-capable HDMI and SDI video outputs; and timecode functionality. Finally, there are integrated, motorized ND and IR-cut filters.

Q & A

What kind of card do I need to shoot 4K 10-bit and how long will I be able to record?

To record using the camera’s 4K 10-bit shooting modes, you will need an SDXC card that is rated for V60 speeds (or faster). This is the card we currently recommend. The highest recording quality uses about 68GB per hour.

Is this camera compatible with light-duty gimbals like the Ronin-M and M5?

While a combination of skill, compact lenses, and/or extension arms may make it possible to accurately balance the EVA1 on gimbals designed for DSLR and Mirrorless systems, we only recommend flying this camera on larger gimbals like the Ronin and Movi Pro.

Is this PL mount camera compatible with all PL mount lenses?

No. PL mount lenses with a rear protrusion of more than 33.5mm, measured from the PL flange, will damage the ND filter turret and are not compatible.

Specifications

Brand	Panasonic
Camera Type	Camcorder
Imaging	Maximum Resolution DCI 4K (4096 × 2160) Sensor Type: Super 35, MOS Size: 24.60mm x 12.97mm Effective Pixels: Approximately 17.25 MP Crop Factor x 1.15 (S35 mode) Bit Depth 4:2:2 10 bit 4:2:0 8 bit ISO Dynamic Range: 14 stops Default Sensitivity Range: 200 to 2000 (800 base)/1000 to 25600 (2500 base) Expanded Sensitivity Range: (values) Native ISO: 800/2500 (dual) Filters Electrical Driven ND (0.6ND, 1.2ND, 1.8ND) IR Cut Filter
Item Type	Camera
Mount	PL Mount

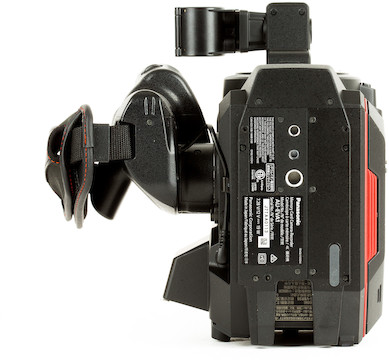

Physical	Dimensions (W x H x D) 135 × 133 × 170mm Weight Body Only: 2.65 lbs Body with Accessories: 4.5 lbs. Accessory Mounts: Tripod: 1x ¼-20 and 1x ⅜-16 Additional: Cold shoe mount

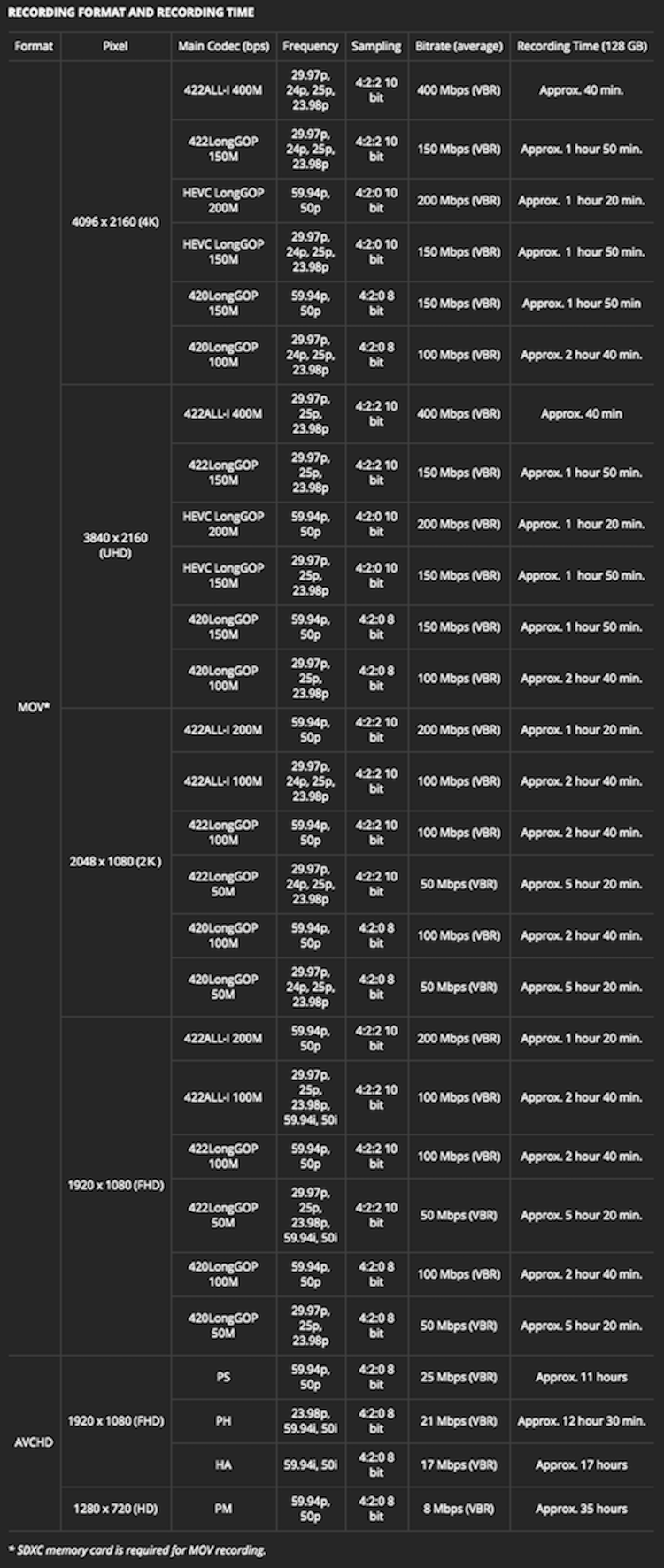

Recording	Formats Video: H.264/MPEG-4 AVC High Profile Audio: 48 kHz/24 bit 2 CH, Linear PCM (MOV), 48 kHz/16 bit, 2 CH, Dolby Audio™ (AVCHD) File: MOV, AVCHD MOV Modes 400 Mbps 422Intra: 4096 × 2160/3840 × 2160 (23.98p, 29.97p) 150 Mbps 422LongGOP: 4096 × 2160/3840 × 2160 (23.98p, 29.97p) 150 Mbps 420LongGOP: 4096 × 2160/3840 × 2160 (59.94p) 100 Mbps 420LongGOP: 4096 × 2160/3840 × 2160/204 (23.98p, 29.97p) 200 Mbps 422Intra: 2048 × 1080/1920 × 1080 (59.94p) 100 Mbps 422Intra: 2048 × 1080 (23.98p, 29.97p)/1920 × 1080 (23.98p, 29.97p, 59.94i) 100 Mbps 422LongGOP: 2048 × 1080/1920 × 1080 (59.94p) 50 Mbps 422LongGOP: 2048 × 1080 (23.98p, 29.97p)/1920 × 1080 (23.98p, 29.97p, 59.94i) Media Type: 2 slot SD High Resolution Class Requirement: Class V60 or faster Approximate Record Times 400 Mbps: Approximately 0.3 Min/GB 150 Mbps: Approximately 0.86 Min/GB 100 Mbps: Approximately 1.4 Min/GB 50 Mbps: Approximately 2.5 Min/GB Multi-Slot Recording Methods Simul Rec Relay Rec
