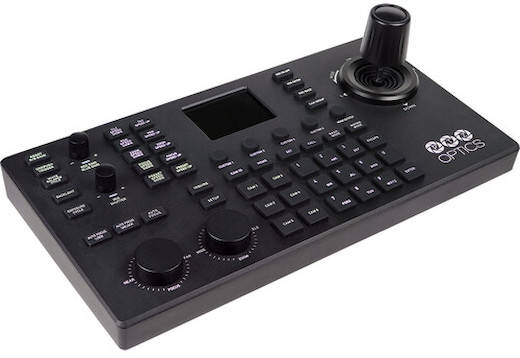

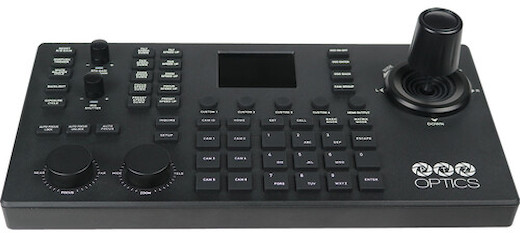

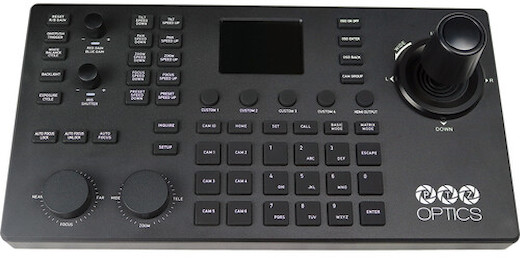

Professional PTZ Camera Control. The PTZOptics PT-SUPERJOY-G1 Controller enables joystick and button control to up to 28 PTZ cameras, in four groups of seven cameras each, using NDI, IP, or serial connections. This controller offers support for NDI, VISCA, VISCA-over-IP, Pelco-P, and Pelco-D protocols over IP and serial RS-232, RS-422, and RS-485 communication. With all of these connections, you’re able to easily control the speed of your pan, tilt, zoom, and lock moves.

Additional Controls and I/O. The SuperJoy also has the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras. Utilizing the HDMI output allows you to to send the camera video to a remote streaming unit, and the status information can also be included in the output. Additional features include glowing buttons for working in the dark, 255 camera presets, nine quick presets, and four super preset buttons. You can import and export configurations using IP or via the USB port.

Compatibility Corner. This unit is compatible with a wide array of PTZ camera options, including but not limited to HuddleCamHD, Sony, PTZOptics, BirdDog, and NewTek. This controller comes with an 8’ long RS-232C cable and 12 VDC power supply, or it can be powered using Power-over-Ethernet (PoE).
