Sennheiser EK 100 G4 Camera-Mount Wireless Receiver (Freq A)

$28.00
/
7 Day

Rental

Interested in purchasing?

Includes

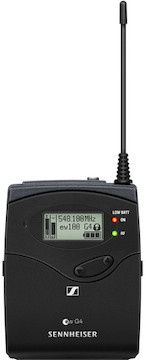

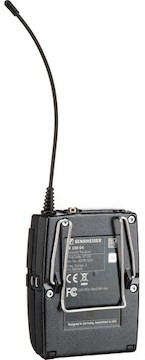

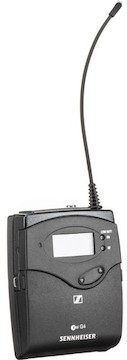

  • Sennheiser G4 EK 100 Diversity Receiver (A)

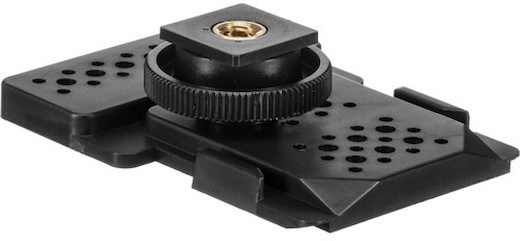

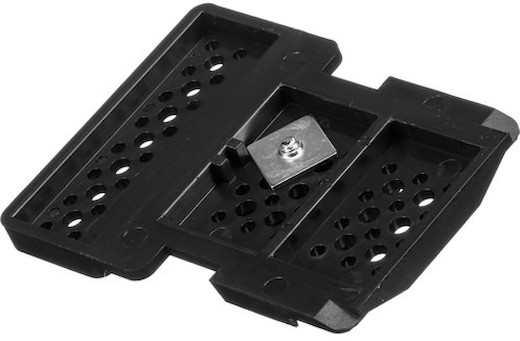

  • Shoemount

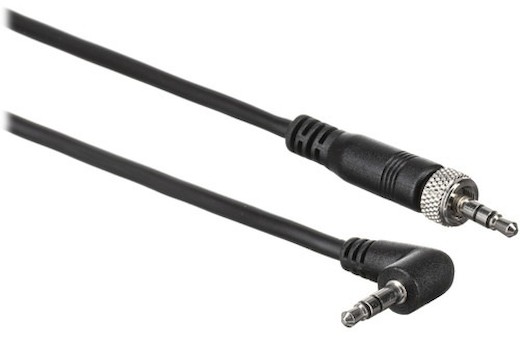

  • 1/8" to Locking 1/8" Mini
  • XLR Male to Locking 1/8" Mini

Resources

  • Manual
  • Sennheiser EK 100 G4 Camera-Mount Wireless Receiver (Freq A)

    The Sennheiser EK 100 G4 Camera-Mount Wireless Receiver (Freq A) is a camera-mount wireless receiver compatible with EW Series wireless microphone systems for videographers, YouTubers, and mobile journalists. Key features include:

    • 1,680 auto-scan frequencies

    • 6 hours on AA batteries

    • Up to 12 mics per band

    • 330-foot range

    Read More

    Q & A

  • Does this rental include batteries?
    • Nah, just the receiver, shoemount, & cables. For AA batteries that we rent, check out the recommended section of your screen under “Power”.

  • Specifications

    Audio Type

    Lavalier Mic

    Brand

    Sennheiser

    General

    Wireless Technology

    • Analog UHF
    Number of RF Channel Frequencies
    • 1680
    Diversity
    • Antenna Diversity
    RF Frequency Band
    • A:516 to 558 MHz
    RF Bandwidth
    • 42 MHz
    Frequency Step Size
    • 25 kHz
    RF Channel Scanning
    • Auto-Scan
    Max Operating Range
    • 330’
    Max Transmitters per Band
    • 12
    Modulation
    • Wideband FM

    Item Type

    Audio and Wireless Audio

    Physical

    Dimensions

    • 2.5 × 3.2 × 0.9″
    Weight
    • 5.6 oz

    Receiver Receiver Type
    • Camera-Mount
    Mounting Options
    • Shoe-Mount (with Included Hardware)
    Antenna
    • 1 x Flexible Whip, Fixed (Top-Mount)
    Number of Audio Channels
    • 1
    Audio I/O

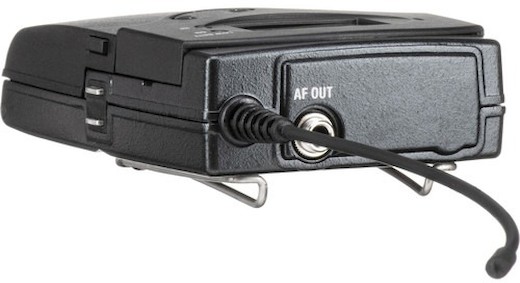

    • 1 × 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
    Gain Range
    • 42 dB (6 dB Steps)
    Audio Output Level
    • +12 dBu (Unbalanced)
    Squelch
    • 5 to 25 dBμV
    Adjacent Channel Isolation
    • >65 dB
    Power Requirements
    • Battery
    Battery Type
    • 2 x AA (Included)
    • 1 x Sennheiser Accupack (Not Included)
    Approx. Battery Life
    • 8 Hours (Alkaline)
    Display & Indicators
    • 1 x Backlit LCD (Battery Status, Output Level, RF Level)
    Housing
    • Metal
    Operating Temperature
    • 14 to 131°F

    Includes

    • Sennheiser G4 EK 100 Diversity Receiver (A)
    • Shoemount
    • 1/8" to Locking 1/8" Mini
    • XLR Male to Locking 1/8" Mini

    Specifications

    Audio Type

    Lavalier Mic

    Brand

    Sennheiser

    General

    Wireless Technology

    • Analog UHF
    Number of RF Channel Frequencies
    • 1680
    Diversity
    • Antenna Diversity
    RF Frequency Band
    • A:516 to 558 MHz
    RF Bandwidth
    • 42 MHz
    Frequency Step Size
    • 25 kHz
    RF Channel Scanning
    • Auto-Scan
    Max Operating Range
    • 330’
    Max Transmitters per Band
    • 12
    Modulation
    • Wideband FM

    Item Type

    Audio and Wireless Audio

    Physical

    Dimensions

    • 2.5 × 3.2 × 0.9″
    Weight
    • 5.6 oz

    Receiver Receiver Type
    • Camera-Mount
    Mounting Options
    • Shoe-Mount (with Included Hardware)
    Antenna
    • 1 x Flexible Whip, Fixed (Top-Mount)
    Number of Audio Channels
    • 1
    Audio I/O
    • 1 × 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
    Gain Range
    • 42 dB (6 dB Steps)
    Audio Output Level
    • +12 dBu (Unbalanced)
    Squelch
    • 5 to 25 dBμV
    Adjacent Channel Isolation
    • >65 dB
    Power Requirements
    • Battery
    Battery Type
    • 2 x AA (Included)
    • 1 x Sennheiser Accupack (Not Included)
    Approx. Battery Life
    • 8 Hours (Alkaline)
    Display & Indicators
    • 1 x Backlit LCD (Battery Status, Output Level, RF Level)
    Housing
    • Metal
    Operating Temperature
    • 14 to 131°F
