Sennheiser EW-D Digital Wireless Combo Microphone System

$75.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • EW-D EM RX
  • (2) Quarter wave antenna
  • AC adapter
  • ME 2-II lav mic (gold plated)
  • EW-D SK bodypack TX
  • MMD835 cardioid capsule
  • EW-D SKM-S handheld TX
  • Mic clip
  • Hardware kit

Not included:

  • Rack mount kit

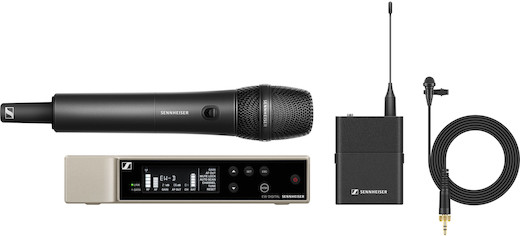

Sennheiser EW-D Digital Wireless Combo Microphone System

The Sennheiser EW-D Digital Wireless Combo Microphone System is a combination wireless lav and handheld mic kit with a desktop receiver that can receive signals up to 328 feet away. Key features include:

  • Wireless audio from up to 328 feet

  • 134 dB dynamic range

  • Includes a lavalier and a handheld microphone

  • Desktop receiver with 2240 available frequency presets

Read More

Q & A

  • Can this unit be rack mounted?
    • As we rent it, no. If you need to rack mount the receiver, you can request the rack mount kit in the special instructions at checkout.

  • How is this system powered?
    • The table-top receiver is powered by AC from a wall outlet while both transmitters are powered via AA batteries or the EW-D Charging Set. Single BA 70 rechargeable batteries are also available here.

  • Is this a two channel kit?
    • No. While two transmitters are included, the receiver can only connect to one at a time.

  • Specifications

    Audio Type

    Lavalier Mic

    Brand

    Sennheiser

    Item Type

    Audio and Wireless Audio

    Microphone

    Lavalier

    • Capsule: Electret condenser
    • Polar Pattern: Omnidirectional
    • Frequency Range: 50 Hz to 18 kHz
    • Noise Level: 32 dB
    • Max SPL: 130 dB
    • Sensitivity: 17 mV/Pa at 1 kHz
    • Cable Length: 5.2 ft
    Handheld
    • Capsule: Dynamic
    • Polar Pattern: Cardioid
    • Noise Level: 32 dB
    • Max SPL: 154 dB
    • Sensitivity: 21 mV/Pa

    Receiver

    Tabletop Unit

    • RF Output: 10 mW
    • Gain: -3 to +42 dB
    • Frequency Response: 20 Hz to 20 kHz ±3 dB
    • Power: AC adapter
    • Dimensions: 7.4 × 1.7 × 8.3″
    • Weight
    • 2.2 lb
    Audio Outputs
    • 3-pin XLR
    • 1/4" TRS (unbalanced)

    Transmitter

    Bodypack

    • RF Output: 10 mW
    • Mute: Yes
    • Power: (2) AA battery
    • Battery Life: 8 hr (AA)
    • Dimensions: 2.5 × 3.1 × 0.8″
    • Weight
    • 4.2 oz
    Handheld Microphone
    • RF Output: 10 mW
    • Mute: Yes
    • Power: (2) AA battery
    • Battery Life: 8 hr (AA)
    • Dimensions: 2 × 10.6″
    • Weight
    • 10.7 oz

    Wireless

    Type

    • Digital UHF
    RF
    • Channels: 2240
    • Frequency Band: 470 to 526 MHz
    • Bandwidth: 56 MHz
    • Range: 328 ft (line-of-sight)
    • Latency: 1.9 ms
    • Dynamic Range: 134 dB

    Includes

    • EW-D EM RX
    • (2) Quarter wave antenna
    • AC adapter
    • ME 2-II lav mic (gold plated)
    • EW-D SK bodypack TX
    • MMD835 cardioid capsule
    • EW-D SKM-S handheld TX
    • Mic clip
    • Hardware kit

    Not included:

    • Rack mount kit

    Specifications

    Audio Type

    Lavalier Mic

    Brand

    Sennheiser

    Item Type

    Audio and Wireless Audio

    Microphone

    Lavalier

    • Capsule: Electret condenser
    • Polar Pattern: Omnidirectional
    • Frequency Range: 50 Hz to 18 kHz
    • Noise Level: 32 dB
    • Max SPL: 130 dB
    • Sensitivity: 17 mV/Pa at 1 kHz
    • Cable Length: 5.2 ft
    Handheld
    • Capsule: Dynamic
    • Polar Pattern: Cardioid
    • Noise Level: 32 dB
    • Max SPL: 154 dB
    • Sensitivity: 21 mV/Pa

    Receiver

    Tabletop Unit

    • RF Output: 10 mW
    • Gain: -3 to +42 dB
    • Frequency Response: 20 Hz to 20 kHz ±3 dB
    • Power: AC adapter
    • Dimensions: 7.4 × 1.7 × 8.3″
    • Weight
    • 2.2 lb
    Audio Outputs
    • 3-pin XLR
    • 1/4" TRS (unbalanced)

    Transmitter

    Bodypack

    • RF Output: 10 mW
    • Mute: Yes
    • Power: (2) AA battery
    • Battery Life: 8 hr (AA)
    • Dimensions: 2.5 × 3.1 × 0.8″
    • Weight
    • 4.2 oz
    Handheld Microphone
    • RF Output: 10 mW
    • Mute: Yes
    • Power: (2) AA battery
    • Battery Life: 8 hr (AA)
    • Dimensions: 2 × 10.6″
    • Weight
    • 10.7 oz

    Wireless

    Type

    • Digital UHF
    RF
    • Channels: 2240
    • Frequency Band: 470 to 526 MHz
    • Bandwidth: 56 MHz
    • Range: 328 ft (line-of-sight)
    • Latency: 1.9 ms
    • Dynamic Range: 134 dB
