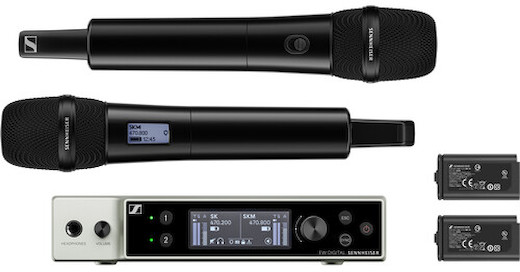

Sennheiser EW-DX Two Channel Handheld Wireless System (Q1-9)

$146.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • (2) Sennheiser MMD835 Cardioid Capsule
  • (2) Mic clips

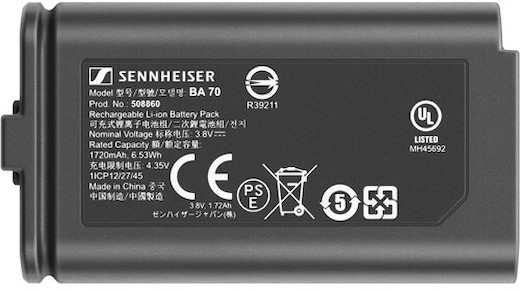

  • (2) BA 70 batteries
  • (2) Locking antenna
  • Receiver
  • (2) Handheld transmitters
  • Case
  • AC Adapter

Resources

  • Manual
  • Sennheiser EW-DX Two Channel Handheld Wireless System (Q1-9)

    The Sennheiser EW-DX Two Channel Handheld Wireless System (Q1-9) is designed to simplify your workflow while delivering top-notch audio quality. Key features include:

    • For two presenters or performers

    • 12-hour rechargeable battery

    • 2-Channel Diversity Receiver
    • Set up/operate from phone via bluetooth

    Read More

    Q & A

  • How do I charge this thing?
  • Specifications

    Audio Type

    Other Audio

    Brand

    Sennheiser

    Item Type

    Audio and Wireless Audio

    Microphone Microphone Type
    • Handheld Capsule
    Color
    • Black
    Sound Field
    • Mono
    Capsule
    • Dynamic
    Polar Pattern
    • Cardioid
    Maximum SPL
    • 154 dB SPL
    Sensitivity
    • 2.1 mV/Pa

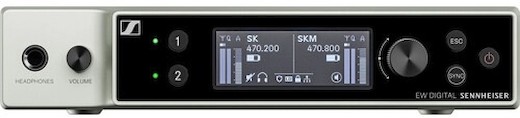

    Receiver Receiver Type
    • Tabletop / Rackmount
    Mounting Options
    • Rackmount (with Included Hardware)
    Rackmount Size
    • 1 RU (1/2 Rack)
    Antenna
    • 2 × 1/4 Wave Rod, BNC (Rear-Mount)
    Number of Audio Channels
    • 2

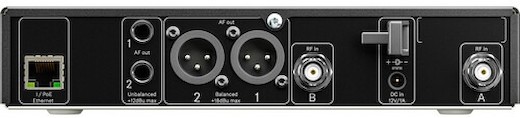

    Audio I/O
    • 2 x XLR 3-Pin Male Balanced Output
    • 2 × 1/4" TS Female Unbalanced Output
    Audio Output Level
    • 18 dBu (Max)
    • 12 dBu (Max)
    Frequency Response
    • 20 Hz to 20 kHz ±3 dB
    Network I/O
    • 1 x RJ45
    Word Clock I/O
    • None
    USB/Lightning Connectivity
    • None
    RF Output Power
    • 10 mW (EIRP)
    Power Requirements
    • AC/DC Power Adapter, PoE
    AC/DC Power Adapter
    • 11 to 13 VDC (Included)
    DC Input Power
    • 12 VDC
    AC Input Power
    • 100 to 240 VAC, 50 / 60 Hz
    Display & Indicators
    • 1 x OLED (AF Level, Channel, Frequency, Output Level, RF Level, Transmitter Battery Status)
    Housing
    • Metal
    Operating Temperature
    • 14 to 131°F
    Operating Humidity
    • 5 to 95%
    Dimensions
    • 8.3 × 1.7 × 7.4″
    Weight
    • 2.2 lb
    System

    Wireless Technology

    • Digital UHF
    Number of RF Channel Frequencies
    • 3200
    Included Transmitters
    • 2 x Handheld
    Diversity
    • Intelligent Switching Diversity
    RF Frequency Band
    • Q1-9: 470.2 to 550 MHz
    RF Bandwidth
    • 80 MHz
    Frequency Step Size
    • 25 kHz
    RF Channel Scanning
    • Auto-Scan
    Max Operating Range
    • 328.1’
    Max Transmitters per Band
    • 269
    Built-In Recorder
    • No
    Bluetooth
    • 5.1 LE
    Bluetooth Operating Distance
    • 120’
    Sample Rate/Resolution
    • 24-Bit
    Latency
    • 1.9 ms
    Dynamic Range
    • 134 dB
    Encryption
    • AES 256

    Transmitter Transmitter Type
    • Handheld
    RF Output Power
    • 10 mW (ERP)
    • 10 mW (EIRP)
    Audio I/O
    • None
    Muting
    • Mute Switch
    Audio Input Level
    • 2 to 4.35 V
    Auto-Level Control
    • No
    Frequency Response
    • 20 Hz to 20 kHz -3 dB
    Sync Method
    • Bluetooth
    Antenna
    • 1 x Internal (Handheld)
    Power Requirements
    • Battery
    Battery Type
    • 1 x Sennheiser Battery Pack (Included)
    • 2 x AA (Not Included)
    Approx. Battery Life
    • 12 Hours (Sennheiser Battery Pack)
    • 8 Hours (Alkaline)
    Display & Indicators
    • 1 x Backlit LCD (Battery Status, Mute)
    Housing
    • Metal
    Operating Temperature
    • 14 to 131°F
    Operating Humidity
    • 5 to 95%
    Dimensions
    • 2 × 10.6″
    Weight
    • 10.7 oz

    Includes

    • (2) Sennheiser MMD835 Cardioid Capsule
    • (2) Mic clips
    • (2) BA 70 batteries
    • (2) Locking antenna
    • Receiver
    • (2) Handheld transmitters
    • Case
    • AC Adapter

    Specifications

    Audio Type

    Other Audio

    Brand

    Sennheiser

    Item Type

    Audio and Wireless Audio

    Microphone Microphone Type
    • Handheld Capsule
    Color
    • Black
    Sound Field
    • Mono
    Capsule
    • Dynamic
    Polar Pattern
    • Cardioid
    Maximum SPL
    • 154 dB SPL
    Sensitivity
    • 2.1 mV/Pa
    Receiver Receiver Type
    • Tabletop / Rackmount
    Mounting Options
    • Rackmount (with Included Hardware)
    Rackmount Size
    • 1 RU (1/2 Rack)
    Antenna
    • 2 × 1/4 Wave Rod, BNC (Rear-Mount)
    Number of Audio Channels
    • 2
    Audio I/O
    • 2 x XLR 3-Pin Male Balanced Output
    • 2 × 1/4" TS Female Unbalanced Output
    Audio Output Level
    • 18 dBu (Max)
    • 12 dBu (Max)
    Frequency Response
    • 20 Hz to 20 kHz ±3 dB
    Network I/O
    • 1 x RJ45
    Word Clock I/O
    • None
    USB/Lightning Connectivity
    • None
    RF Output Power
    • 10 mW (EIRP)
    Power Requirements
    • AC/DC Power Adapter, PoE
    AC/DC Power Adapter
    • 11 to 13 VDC (Included)
    DC Input Power
    • 12 VDC
    AC Input Power
    • 100 to 240 VAC, 50 / 60 Hz
    Display & Indicators
    • 1 x OLED (AF Level, Channel, Frequency, Output Level, RF Level, Transmitter Battery Status)
    Housing
    • Metal
    Operating Temperature
    • 14 to 131°F
    Operating Humidity
    • 5 to 95%
    Dimensions
    • 8.3 × 1.7 × 7.4″
    Weight
    • 2.2 lb
    System

    Wireless Technology

    • Digital UHF
    Number of RF Channel Frequencies
    • 3200
    Included Transmitters
    • 2 x Handheld
    Diversity
    • Intelligent Switching Diversity
    RF Frequency Band
    • Q1-9: 470.2 to 550 MHz
    RF Bandwidth
    • 80 MHz
    Frequency Step Size
    • 25 kHz
    RF Channel Scanning
    • Auto-Scan
    Max Operating Range
    • 328.1’
    Max Transmitters per Band
    • 269
    Built-In Recorder
    • No
    Bluetooth
    • 5.1 LE
    Bluetooth Operating Distance
    • 120’
    Sample Rate/Resolution
    • 24-Bit
    Latency
    • 1.9 ms
    Dynamic Range
    • 134 dB
    Encryption
    • AES 256

    Transmitter Transmitter Type
    • Handheld
    RF Output Power
    • 10 mW (ERP)
    • 10 mW (EIRP)
    Audio I/O
    • None
    Muting
    • Mute Switch
    Audio Input Level
    • 2 to 4.35 V
    Auto-Level Control
    • No
    Frequency Response
    • 20 Hz to 20 kHz -3 dB
    Sync Method
    • Bluetooth
    Antenna
    • 1 x Internal (Handheld)
    Power Requirements
    • Battery
    Battery Type
    • 1 x Sennheiser Battery Pack (Included)
    • 2 x AA (Not Included)
    Approx. Battery Life
    • 12 Hours (Sennheiser Battery Pack)
    • 8 Hours (Alkaline)
    Display & Indicators
    • 1 x Backlit LCD (Battery Status, Mute)
    Housing
    • Metal
    Operating Temperature
    • 14 to 131°F
    Operating Humidity
    • 5 to 95%
    Dimensions
    • 2 × 10.6″
    Weight
    • 10.7 oz
