Sennheiser EW-DX Two Channel Lavalier Wireless System (Q1-9)

$182.00
/
7 Day

Rental

Interested in purchasing?

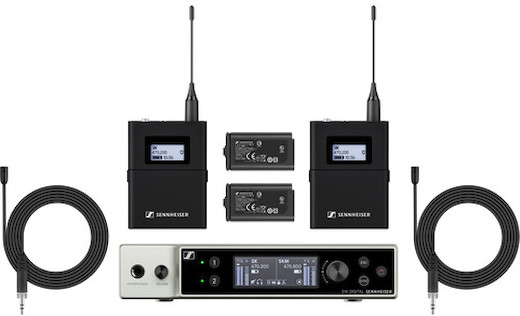

Includes

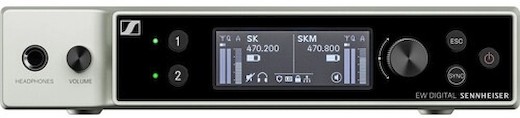

  • EW-DX EM 2 Receiver

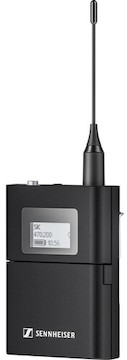

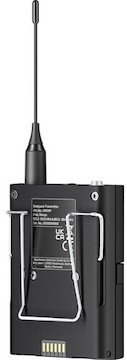

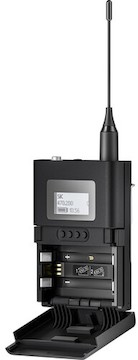

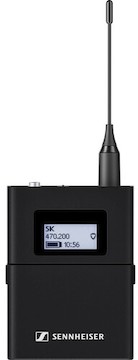

  • (2) EW-DX SK Transmitter
  • (2) Lavalier Mics
  • Protective casing
  • Mic Hardware Kits

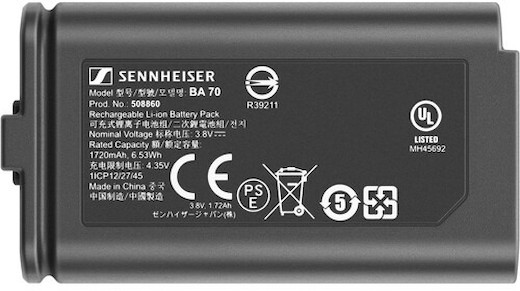

  • (2) BA 70 Batteries
  • (2) Locking Antennas
  • 12W AC Adapter

Resources

  • Manual
  • Sennheiser EW-DX Two Channel Lavalier Wireless System (Q1-9)

    The Sennheiser EW-DX Two Channel Lavalier Wireless System (Q1-9) is a kit designed to simplify your audio in in business and educational settings, houses of worship, or on stage. Key features include:

    • Two-channel diversity receiver

    • Expandable to 269 channels

    • 330 foot range

    • For two presenters or performers

    Read More

    Q & A

  • How is this system powered?
    • The receiver is powered via the included AC adapter or PoE port, and the transmitters are powered by either the included BA 70 batteries or two separately available AA batteries.

  • Can this unit be rack mounted?
    • Yep! The receiver includes a rack mountable design.

  • Specifications

    Audio Type

    Lavalier Mic

    Brand

    Sennheiser

    Item Type

    Audio

    Mfr. Model Number

    #EWDX MKE 2 SET (Q19)

    Microphone

    Microphone Type

    • Lavalier
    Color
    • Black
    Sound Field
    • Mono
    Capsule
    • Electret Condenser
    Polar Pattern
    • Omnidirectional
    Frequency Range
    • 20 Hz to 20 kHz
    Equivalent Noise Level
    • 26 dB A-Weighted
    Maximum SPL
    • 142 dB SPL
    Sensitivity
    • 5 mV/Pa at 1 kHz
    Outputs
    • 1 × 1/8" / 3.5 mm TRS Male (Lockable, on Attached Cable)
    Cable Length
    • 5.2’
    Operating Voltage
    • 7.5 V

    Package Type

    Wireless Audio

    Receiver

    Receiver Type

    • Tabletop / Rackmount
    Mounting Options
    • Rackmount (with Included Hardware)
    Rackmount Size
    • 1 RU (1/2 Rack)
    Antenna
    • 2 × 1/4 Wave Rod, BNC (Rear-Mount)
    Number of Audio Channels
    • 2

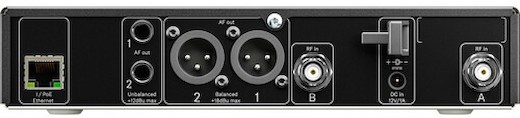

    Audio I/O
    • 2 x XLR 3-Pin Male Balanced Output
    • 2 × 1/4" TS Female Unbalanced Output
    Audio Output Level
    • 18 dBu (Max)
    • 12 dBu (Max)
    Frequency Response
    • 20 Hz to 20 kHz +3 dB
    Network I/O
    • 1 x RJ45
    Word Clock I/O
    • None
    USB/Lightning Connectivity
    • None
    RF Output Power
    • 10 mW (EIRP)
    Power Requirements
    • AC/DC Power Adapter, PoE
    AC/DC Power Adapter
    • 11 to 13 VDC (Included)
    DC Input Power
    • 12 VDC
    AC Input Power
    • 100 to 240 VAC, 50 / 60 Hz
    Display & Indicators
    • 1 x OLED (AF Level, Channel, Frequency, Output Level, RF Level, Transmitter Battery Status)
    Housing
    • Metal
    Operating Temperature
    • 14 to 131°F
    Operating Humidity
    • 5 to 95%
    Dimensions
    • 8.3 × 1.7 × 7.4″
    Weight
    • 2.2 lb

    System Wireless Technology
    • Digital UHF
    Number of RF Channel Frequencies
    • 3200
    Included Transmitters
    • 2 x Bodypack
    Diversity
    • Intelligent Switching Diversity
    RF Frequency Band
    • Q1-9: 470.2 to 550 MHz
    RF Bandwidth
    • 80 MHz
    Frequency Step Size
    • 25 kHz
    RF Channel Scanning
    • Auto-Scan
    Max Operating Range
    • 328.1’
    Max Transmitters per Band
    • 269
    Built-In Recorder
    • No
    Bluetooth
    • 5.1 LE
    Bluetooth Operating Distance
    • 120’
    Sample Rate/Resolution
    • 24-Bit
    Latency
    • 1.9 ms
    Dynamic Range
    • 134 dB
    Encryption
    • AES 256
