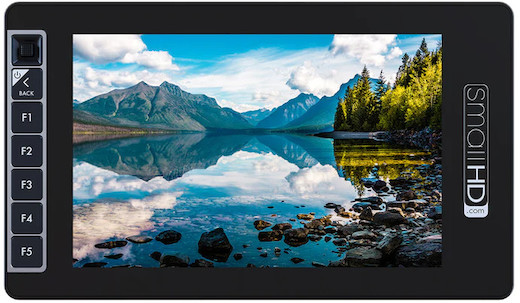

SmallHD 703 UltraBright Monitor w/ L-Series Battery Plate

$205.00
/
7 Day

Rental

Available Tomorrow

Renting this item will adjust your rental dates.

Interested in purchasing?

Includes

  • SmallHD 703 Monitor
  • L-series battery plate
  • 2-pin LEMO cable
  • Soft case

Resources

  • Manual
  • SmallHD 703 UltraBright Monitor w/ L-Series Battery Plate

    The SmallHD 703 UltraBright Monitor w/ V-Mount Battery Plate is a compact, high-resolution monitor with an attached L-Series battery plate perfect for on-camera use. Key features include:

    • 2,200-nit maximum brightness

    • 7-inch, 1920 × 1080 LCD monitor

    • Customizable Page Builder OS

    • Includes L-Series battery plate

    Read More

    Q & A

  • Does this come with any batteries?
    • No, you’ll need to rent L-Series batteries separately. A complete power kit is available here, or you can check out any of the recommendations on this page.

  • Does this rental include HDMI or SDI cables?
    • This rental doesn’t include HDMI or SDI cables. If you need HDMI/SDI cables, you can find them here.

  • Specifications

    Brand

    SmallHD

    Display

    Screen Type

    • 7“ LTPS LCD
    Resolution
    • 1920 × 1080
    Pixel Density
    • 323 PPI
    Bit Depth
    • 8-bit display/10-bit color processing
    Brightness
    • 2200 nits

    Inputs/Outputs

    Video Inputs

    • 1x 3G/HD-SDI
    • 1x SDI In/Out
    • 1x HDMI
    Video Outputs
    • 1x HD-SDI In/Out
    • 1x HDMI
    3G-SDI Input/Output Formats
    • YCC 4:2:2 @ 10-bits
    • 1080p: 50/59.94/60
    • 1080i: 50/59.94/60
    HD-SDI Input/Output Formats
    • YCC 4:2:2 @ 10-bits
    • 1080p: 23.98/24/25/29.97/30
    • 1080pSF: 23.98/24/25/29.97/30
    • 1080i: 50/59.94/60
    • 720p: 23.98/24/25/29.97/30/50/59.94/60
    HDMI Input/Output Formats
    • YCC 4:2:2 @ 8-bits
    • RGB & YCC 4:4:4 @ 8/10/12-bits
    • 1080p: 23.98/24/25/29.97/30/50/60
    • 1080i: 29.97/30/50/59.94/60
    • 720p: 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
    Additional Inputs/Outputs
    • ⅛” Headphone
    • LEMO Power Passthru
    • Micro USB

    Item Type

    Monitoring and Production Monitors

    Monitoring Type

    Monitor

    Physical

    Dimensions

    • 4.88” x 8.38” x 1.13”
    Weight
    • 1.5-2.5 lbs. (battery dependent)

    Includes

    • SmallHD 703 Monitor
    • L-series battery plate
    • 2-pin LEMO cable
    • Soft case

    Specifications

    Brand

    SmallHD

    Display

    Screen Type

    • 7“ LTPS LCD
    Resolution
    • 1920 × 1080
    Pixel Density
    • 323 PPI
    Bit Depth
    • 8-bit display/10-bit color processing
    Brightness
    • 2200 nits

    Inputs/Outputs

    Video Inputs

    • 1x 3G/HD-SDI
    • 1x SDI In/Out
    • 1x HDMI
    Video Outputs
    • 1x HD-SDI In/Out
    • 1x HDMI
    3G-SDI Input/Output Formats
    • YCC 4:2:2 @ 10-bits
    • 1080p: 50/59.94/60
    • 1080i: 50/59.94/60
    HD-SDI Input/Output Formats
    • YCC 4:2:2 @ 10-bits
    • 1080p: 23.98/24/25/29.97/30
    • 1080pSF: 23.98/24/25/29.97/30
    • 1080i: 50/59.94/60
    • 720p: 23.98/24/25/29.97/30/50/59.94/60
    HDMI Input/Output Formats
    • YCC 4:2:2 @ 8-bits
    • RGB & YCC 4:4:4 @ 8/10/12-bits
    • 1080p: 23.98/24/25/29.97/30/50/60
    • 1080i: 29.97/30/50/59.94/60
    • 720p: 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
    Additional Inputs/Outputs
    • ⅛” Headphone
    • LEMO Power Passthru
    • Micro USB

    Item Type

    Monitoring and Production Monitors

    Monitoring Type

    Monitor

    Physical

    Dimensions

    • 4.88” x 8.38” x 1.13”
    Weight
    • 1.5-2.5 lbs. (battery dependent)
