SmallHD INDIE 7 Bolt 4K RX Monitor w/ 750 TX (V-Mount)

SmallHD INDIE 7 Bolt 4K RX Monitor w/ 750 TX (V-Mount)

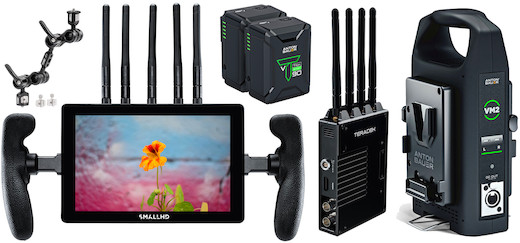

The SmallHD INDIE 7 Bolt 4K RX Monitor w/ 750 TX (V-Mount) is a kit comprised of some of our favorite on-camera monitor accessories centered around the INDIE 7. This kit includes the following:

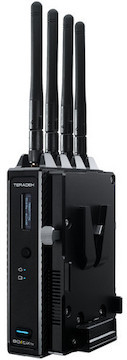

Bolt 4K. The Teradek Bolt 4K 750 TX and RX modules let you wirelessly transmit up to 4K60p lossless video to up to six receivers with zero delay from up to 750 feet along line of sight. The 4K 750 lineup supports HDR workflows, 10-bit 4:2:2 video via 12G-SDI, and 8-bit 4:4:4 via HDMI so you can monitor every shot in pristine detail. This kit includes the transmitter and receiver modules so you can fit this monitor into your workflow wherever it’s needed.

Monitor Handles Included. The SmallHD Monitor Handles easily screw onto the sides of SmallHD monitors, and the adjustable neck strap attaches to the handles once installed. The handles feature anti-slip rubber, and the padded neck strap is made of durable woven nylon, to ensure that your monitor is in good hands.

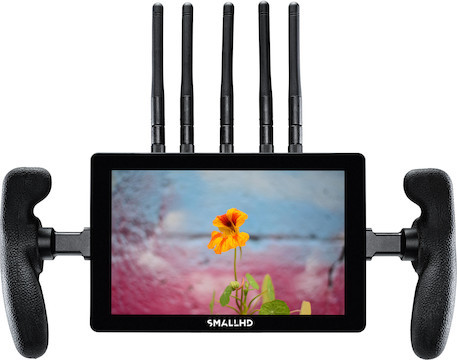

Image Quality On A Budget. The SmallHD INDIE 7 Touchscreen On-Camera Monitor’s 1000 cd/m² display is daylight viewable while keeping black levels black. The 10-bit touchscreen panel uses IPS LCD tech for great color reproduction and contrast with full coverage of the Rec709 colorspace.

HDMI & SDI Inputs & Outputs. The Indie 7 supports both HDMI and 3G-SDI inputs and outputs with cross-convertion between them. 3G-SDI format support maxes out at 1080/120i and 1080/60p in 10-Bit 4:2:2. HDMI format support maxes out at 1080/60p in 16-bit 4:4:4 color. Audio is transferred through both 3G-SDI and HDMI, with a 1/8-inch stereo out to monitor audio via headphones (not included).

Feature-Rich PageOS 4 Toolset. Expanded options include the output of 3D LUT previews to downstream devices, image capture, overlays, custom scaling, anamorphic desqueeze, peaking, false color, Waveform, Zebras, RGB parade, histogram, and on-screen audio meters. An SD card slot lets you add custom LUTs, and save and share settings to other monitors. Please note that this rental doesn’t include an SD card.

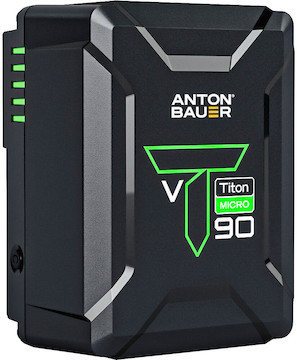

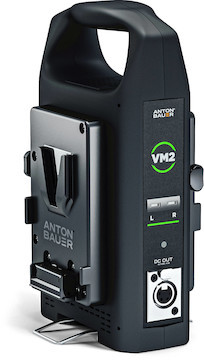

Batteries Are Included. This kit includes two V-Mount batteries and a dual battery charger, along with all the battery mounting gear you’ll need.

Q & A

  • Is there a Gold Mount version of this kit?
    • Yes! You can check it out here.

  • What else will I need?
    • We included as much as we could in this kit, but you’ll need to pick out your own HDMI or SDI cables.

    • You can find cables here or in the Recommend section on this page.

  • Specifications

    Brand

    SmallHD and Teradek

    Display

    Screen Type

    • 7“ IPS LCD
    Resolution
    • 1920 × 1200
    Pixel Density
    • 323 PPI
    Bit Depth
    • 8-bit display/10-bit color processing
    Brightness
    • 1000 nits

    Inputs/Outputs

    Video Inputs

    • 3G-SDI
    • HDMI Type A
    Video Outputs
    • 3G-SDI
    • HDMI Type A
    3G-SDI Formats
    • 10-Bit 4:2:2 RGB, YCC
    • UHD 4K: 30/29.97/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    HDMI Formats
    • 8/12-Bit 4:2:2 RGB, YCC
    • UHD 4K: 30/29.97/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
    • 576p: 200/100/50
    • 480p: 240/239.76/120/119.88/60/59.94
    Additional Inputs/Outputs
    • ⅛” Headphone
    • Micro USB

    Item Type

    Monitoring

    Monitoring Type

    Monitor

    Specifications

    Brand

    SmallHD and Teradek

    Display

    Screen Type

    • 7“ IPS LCD
    Resolution
    • 1920 × 1200
    Pixel Density
    • 323 PPI
    Bit Depth
    • 8-bit display/10-bit color processing
    Brightness
    • 1000 nits

    Inputs/Outputs

    Video Inputs

    • 3G-SDI
    • HDMI Type A
    Video Outputs
    • 3G-SDI
    • HDMI Type A
    3G-SDI Formats
    • 10-Bit 4:2:2 RGB, YCC
    • UHD 4K: 30/29.97/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    HDMI Formats
    • 8/12-Bit 4:2:2 RGB, YCC
    • UHD 4K: 30/29.97/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
    • 576p: 200/100/50
    • 480p: 240/239.76/120/119.88/60/59.94
    Additional Inputs/Outputs
    • ⅛” Headphone
    • Micro USB

    Item Type

    Monitoring

    Monitoring Type

    Monitor

    Resources

  • INDIE 7 User Guide
