SmallHD INDIE 7 Touchscreen On-Camera Monitor

$101.00
/
7 Day

Rental

Interested in purchasing?

Includes

Resources

  • Manual
  • SmallHD INDIE 7 Touchscreen On-Camera Monitor

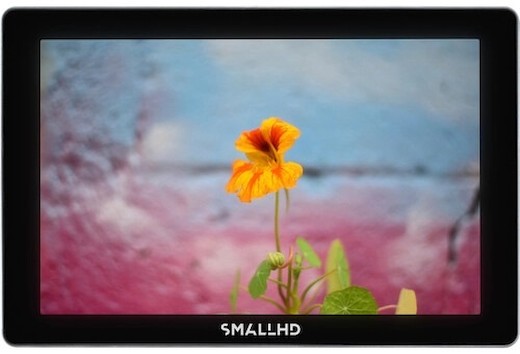

    The SmallHD INDIE 7 Touchscreen On-Camera Monitor is a daylight viewable, 7" 1920 × 1200 monitor and a pared down version of the previous SmallHD 7-inch 702 Touch. Key features include:

    • Rugged 7-inch 1920 × 1200, 1000 cd/m² display

    • Assign scopes, overlays, and monitoring tools to swipeable pages

    • Dual Sony L-series (NPF) battery plate

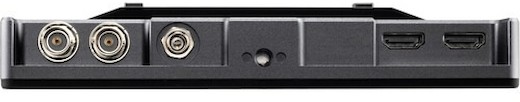

    • 3G-SDI & HDMI inputs & outputs with cross conversion

    Read More

    Q & A

  • Do you feature this monitor in any kits?
    • Yes! We offer this monitor in a variety of kits.

  • How is this monitor powered?
  • Does this rental include HDMI or SDI cables?
    • This rental doesn’t include HDMI or SDI cables. If you need them, you can find them here.

  • Specifications

    Brand

    SmallHD

    Display

    Screen Type

    • 7“ IPS LCD
    Resolution
    • 1920 × 1200
    Pixel Density
    • 323 PPI
    Bit Depth
    • 8-bit display/10-bit color processing
    Brightness
    • 1000 nits

    Inputs/Outputs

    Video Inputs

    • 3G-SDI
    • HDMI Type A
    Video Outputs
    • 3G-SDI
    • HDMI Type A
    3G-SDI Formats
    • 10-Bit 4:2:2 RGB, YCC
    • UHD 4K: 30/29.97/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    HDMI Formats
    • 8/12-Bit 4:2:2 RGB, YCC
    • UHD 4K: 30/29.97/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
    • 576p: 200/100/50
    • 480p: 240/239.76/120/119.88/60/59.94
    Additional Inputs/Outputs
    • ⅛” Headphone
    • Micro USB

    Item Type

    Monitoring and On Camera Monitors

    Monitoring Type

    Monitor

    Physical

    Dimensions

    • 7.09 × 4.67 × 1.32″
    Weight
    • 18.9 oz (without battery)

    Includes

    Specifications

    Brand

    SmallHD

    Display

    Screen Type

    • 7“ IPS LCD
    Resolution
    • 1920 × 1200
    Pixel Density
    • 323 PPI
    Bit Depth
    • 8-bit display/10-bit color processing
    Brightness
    • 1000 nits

    Inputs/Outputs

    Video Inputs

    • 3G-SDI
    • HDMI Type A
    Video Outputs
    • 3G-SDI
    • HDMI Type A
    3G-SDI Formats
    • 10-Bit 4:2:2 RGB, YCC
    • UHD 4K: 30/29.97/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 120/119.88/100/60/59.94/50
    • 720p: 60/59.94/50/30/29.97/25/24/23.98
    HDMI Formats
    • 8/12-Bit 4:2:2 RGB, YCC
    • UHD 4K: 30/29.97/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
    • 576p: 200/100/50
    • 480p: 240/239.76/120/119.88/60/59.94
    Additional Inputs/Outputs
    • ⅛” Headphone
    • Micro USB

    Item Type

    Monitoring and On Camera Monitors

    Monitoring Type

    Monitor

    Physical

    Dimensions

    • 7.09 × 4.67 × 1.32″
    Weight
    • 18.9 oz (without battery)
