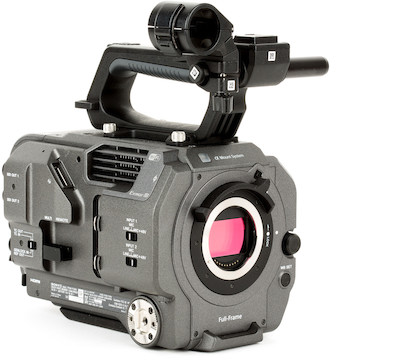

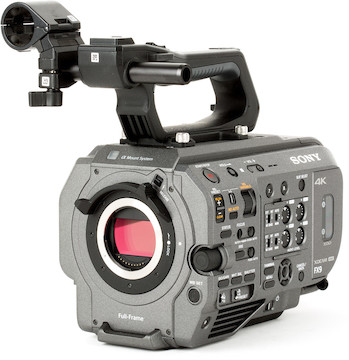

Sony PXW-FX9 XDCAM 6K Full-Frame Camera

The Sony PXW-FX9 XDCAM 6K Full-Frame Camera is an update to the workhorse Sony PXW-FS7M2 adding a oversampled, 6K, full frame sensor for recording up to 10-bit 4:2:2 UHD 4K at 60p. Key features include:

35.7 × 18.8mm, 6K, full-frame, CMOS sensor
Records up to XAVC-I 10-bit 4:2:2 in UHD 4K/60p to XQD media
Improved color science and added S-Cinetone color profile
Improved hybrid autofocus & dynamic range

Product Updates. The Sony PXW-FX9 XDCAM 6K Full-Frame Camera takes the general form factor of the insanely popular Sony PXW-FS7M2 4K XDCAM Super 35mm Camcorder and throws a big, full-frame 6K sensor into the mix. From that 6K sensor, users can record a subsampled image up to UHD 4K/60p. Footage is recorded in the same XAVC-I 4:2:2 10-bit codec that the FS7 and FS7M2 use. The electronic variable ND filter has been updated for the full frame sensor and the body now gives more thorough control over exposure, white balance, and audio controls. Oh, yeah, and it’s grey.

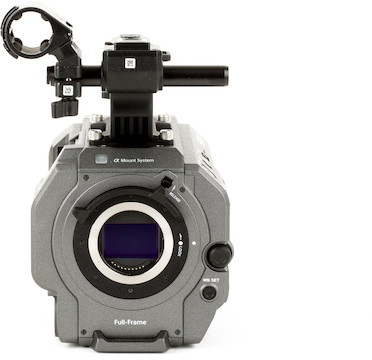

Reinforced Locking E-Mount. The FX9 features the same locking E-mount found on the FX9’s big brother Sony VENICE 6K Digital Motion Picture Camera and previous PXW-FS7M2, just insert the lens without rotating and turn the locking ring.

Electronic Variable ND. The Electronic Variable ND works in one of three different ways. The first is like a conventional ND filter wheel, with 4 set positions you can swap between. Second, you can rotate the knob and ease through seven stops of filtration like a lens front mounted variable ND. Lastly, the FS7 Mark II’s auto ND function allows you to lock your shutter speed and aperture despite changing lighting environments.

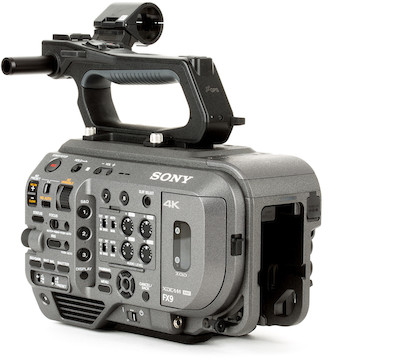

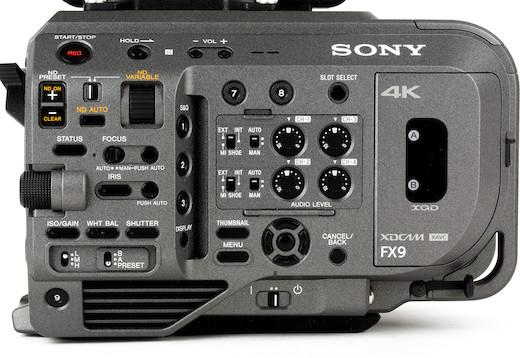

Refined Build Quality. The PXW-FX9 features a tool-less design, meaning you can make adjustments to the Smart Grip or the viewfinder on the fly without having to pull out a screwdriver. The number of user programmable buttons has increased from 6 to 10, giving operators a greater level of control.

Higher Dynamic Range & Improved Color Accuracy. The FX9 offers 15+ stops of dynamic range with its refined sensor and color science. The added S-Cinetone color profile which is said to improve skin tones and color accuracy while still including mainstays such as S-Log 3 and S-Gamut 3.

Improved Autofocus. The autofocus system on this camera is quite a bit faster by adding phase detection to the contrast auto focus of previous generation Sony cameras. It also includes face detection capable of distinguishing between and tracking multiple subjects.

Sam's Take

Video Tech

If you’re familiar with Sony’s current line of cinema cameras, like the FS7 and FS5, you should feel right at home using the FX9. The body is recycled from the FS7 Mark II, but with a slightly upda...

Q & A

Can this camera record RAW video?

Yes! This camera supports RAW recording through the Sony XDCA-FX9 Extension Unit, which is available as a separate rental item.

Are there any add-on accessories for this camera that I should be looking at?

Some users won’t need the added capability, but those of you looking to use V-mount batteries and various unique inputs and outputs—ranging from timecode, D-Tap, and XLR all the way up to dual USB ports for cellular network adapters—should be sure to check out the Sony XDCA-FX9 Extension Unit for PXW-FX9 Camera.

Specifications

Brand	Sony
Camera Type	Mirrorless
Imaging	Maximum Resolution UHD 4K (3840 × 2160) Sensor Type: 6K, Exmor CMOS Scan: Progressive Bit Depth 4:2:2 10-bit (internal), 4:2:2 16-bit (external) ISO Dynamic Range: 15 Stops Maximum ISO: 32,000 Base ISO: 800 High Base ISO: 4000 Neutral Density Filters Built-In Electronic Preset Options: Off, 1/4, 1/16, or 1/64 Variable Options: 1/4-1/128

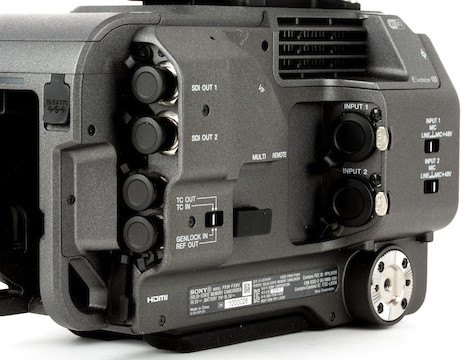

Inputs/Outputs	Audio Inputs Top Handle: 1x XLR Camera Body: 2x XLR, 1x 3.5mm stereo mini-jack Audio Controls 2x Mic/Line Phantom power +48v Audio Output 1x 3.5mm stereo mini-jack Video Output 1x HDMI Type-A 1x BNC (12G-SDI) Output 1x BNC (3G-SDI) Output Additional Inputs/Outputs 1x BNC Genlock Data Input 1x BNC Timecode Data Input/Output 1x 2.5 mm LANC Control 1x USB Micro-B USB 3.1 Gen 1 DatDC In: 12 V DC (with supplied AC adapter)
Item Type	Camera and Cinema Cameras
Monitoring	Viewfinder Fixed 3.5-inch Color Approx: 2.76M dots Internal Microphone Mono
Mount	Sony E
Physical	Modular Units Grip Top Handle Dimensions Camera body: 5.75 × 5.61 × 9.02″ Weight Camera body: Approximately 4.4 lbs. Accessory Mounts Tripod Base: ¼-20 Additional: hot shoe
Power Supply	AC Adapter ACDP-060D01 (supplied) Battery Type: BP-U70 (supplied) Operating Time: Approximately 4 hrs Charging Time: Approximately 170 min Additional Battery Compatibility Type: BP-U35, BP-U70

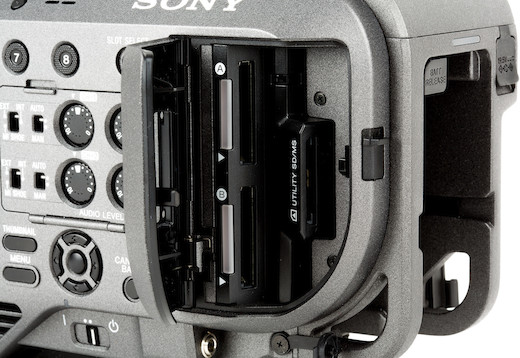

Recording	Formats XAVC L, XAVC-I, MPEG HD422 Audio: LPCM 24 bits, 48 kHz, 4 channels (Recording/Playback 2 channels) Codecs XAVC-I QFHD mode: 3840 × 2160/59.94P Approx. 22 min. XAVC-I HD mode: 1920 × 1080/59.94P Approx. 57 min., XAVC-L QFHD mode: 3840 × 2160/59.94P Approx. 86 min. XAVC-L HD 50 mode: 1920 × 1080/59.94P Approx. 57 min. MPEG HD422 mode: 1920 × 1080/59.94i Approx. 220 min. Media XQD (2 slots) SDXC/Memory Stick PRO Duo (1 slot) Multi-Slot Recording Methods Dual Recording Relay Recording
Sensor Size	Full Frame
