Sound Devices MixPre-10 II Multitrack Field Kit

Sound Devices MixPre-10 II Multitrack Field Kit

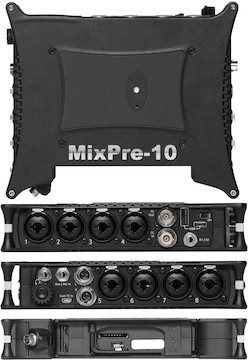

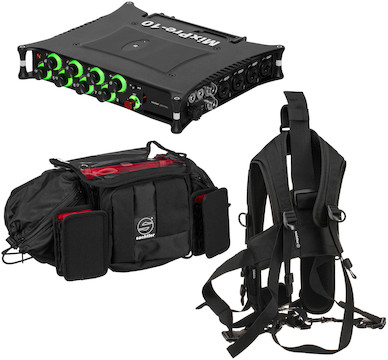

The Sound Devices MixPre-10 II Multitrack Field Kit provides you with the Sound Devices MixPre-10 II Recorder, along with a field bag and vest-style harness. Key features include:

  • Memory card not included

  • (8) High-gain, low-noise mic preamps

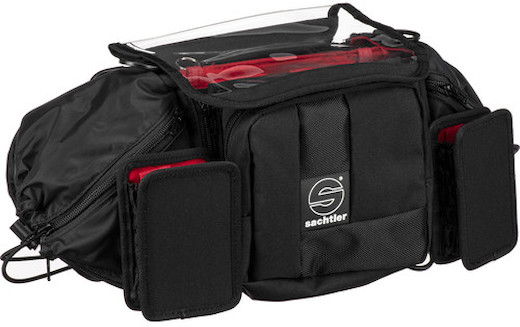

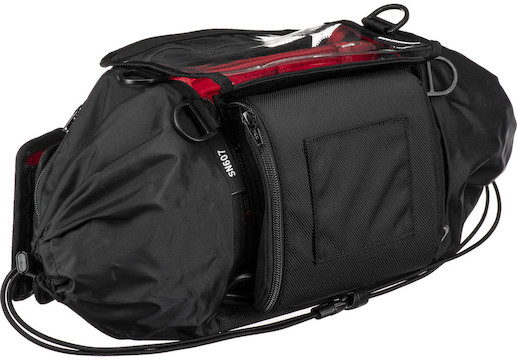

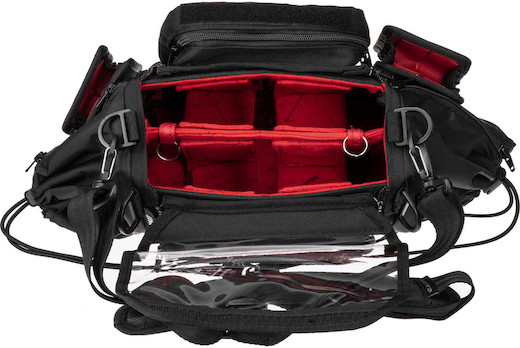

  • Transparent window on field bag for control monitoring

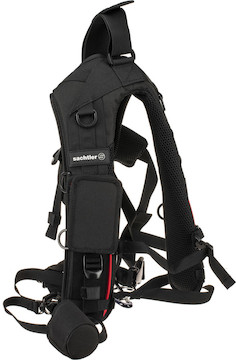

  • Harness carries up to 88 lb. of gear

Read More

Q & A

  • Can this safely take Sandisk SD cards?
    • Yes. The MixPre-10 II 10-Channel / 12-Track Multitrack 32-Bit Field Recorder will support SD, SDHC, SDXC (Up to 512 GB). Sandisk makes many cards that will be compatible.

  • Specifications

    Audio Type

    Field Recorder and Audio Bag

    Brand

    Sound Devices

    Connectivity

    Analog I/O

    • 8x Combo XLR-1/4" 3-Pin Female Active-Balanced Line/Mic Input
    • 1x 1/8" / 3.5 mm TRS Female Unbalanced Aux/Mic Input
    • 1x 1/8" / 3.5 mm TRS Female Unbalanced Aux/Headphone Output
    • 2x TA3 3-Pin Female Balanced Line Output
    Digital I/O
    • 1x 1/8" / 3.5 mm SMPTE Timecode Input
    • 1x 1/8" / 3.5 mm SMPTE Timecode Output
    • 1x Micro-HDMI SMPTE Timecode Input
    • 1x BNC SMPTE Timecode/Word Clock Input
    • 1x BNC SMPTE Timecode/Word Clock Output
    Phantom Power
    • +48 V, Selectable On/Off (Selectable on Individual Inputs)
    Phantom Power Current
    • 10 mA per Channel
    Plug-In Power
    • Yes, 3 V
    System Connection
    • 1x USB-C (2.0)
    • 1x USB-A (Control, Text Entry, Thumb Drive, 2.0)
    Audio Interface Capability
    • Multi-Track
    Wireless
    • Bluetooth 4.0 *Built-In
    Mobile App Compatible
    • Yes: Android & iOS
    • App Name: Wingman
    • Functionality: Remote Control

    Item Type

    Audio

    Performance

    Frequency Response

    • WAV: 10 Hz to 80 kHz ±0.5 dB (at 192 kHz)
    Gain/Trim Range
    • Mic Inputs: + 6 dB to + 76 dB
    • Line Inputs: -20 dB to 30 dB
    • Mic/Aux Inputs: +10 dB to +40 dB
    • Line/Aux Inputs: -10 dB to +20 dB
    • Fader: to +20 dB
    • Headphone Outputs: to +20 dB
    Max Input Level
    • Mic Inputs: +14 dBu
    • Line Inputs: +28 dBu
    • Mic/Aux Inputs: -10 dBu
    • Line/Aux Inputs: +10 dBu
    Max Output Level
    • Outputs: +7.8 dBu
    • TA3 Outputs: +18 dBu
    Headphone Output Power
    • 300 mW per Channel
    Dynamic Range
    • A/D Converters: 142 dB
    • D/A Converters: 115 dB
    Impedance
    • Mic/Line Inputs: 4 Kilohms (Active-Balanced)
    • Mic/Aux Inputs: 100 Kilohms (Unbalanced)
    • TA3 Outputs: 1.1 Kilohms (Balanced)
    • Unbalanced Outputs: 500 Ohms
    • BNC Inputs: 20 Kilohms, 10 Kilohms
    • BNC Outputs: 1 Kilohms, 75 Ohms
    THDN
    • Inputs: 0.005%
    Equivalent Input Noise (EIN)
    • -128 dBu (A-Weighted)

    Physical

    Included Accessories

    • No
    Mounting Options
    • 1/4"-20 Male (Top)
    • 1/4"-20 Female (Bottom)
    Operating Temperature
    • -4 to 140°F
    Storage Temperature
    • -40 to 185°F
    Operating Humidity
    • 0 to 90%
    Dimensions
    • 8.1 × 1.4 × 6.9″
    Weight
    • 32.1 oz (without Batteries)

    Portable Recorder

    Form Factor

    • Field Recorder
    Primary Use Applications
    • Audio-for-Video
    Number of Tracks
    • WAV: 12 (10 Inputs + Stereo Mix)
    Number of Input Channels
    • 12
    Maximum Sampling Rate
    • 192 kHz / 32-Bit
    Microphone
    • No
    Number of Microphone Inputs
    • 8
    Built-In Speaker
    • No
    Display
    • 1.6" Color LCD Touchscreen
    Memory Card Support
    • SD, SDHC, SDXC (Up to 512 GB)
    Internal Storage
    • No
    Special Features
    • Remote Control Capable

    Power

    Power Options

    • Battery, AC/DC Power Adapter
    Battery Type
    • 8x AA (Not Included)
    • 2x L Series (Requires Optional Equipment, Hot-Swappable, Not Included)
    AC/DC Power Adapter
    • 12 VDC at 3.75 A (Included)
    Input Power
    • 100 to 240 VAC, 50 / 60 Hz at 1.5 A

    See All
