Teradek Bolt 4K LT 750 3G-SDI/HDMI Kit (V-Mount)

$277.00

8 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

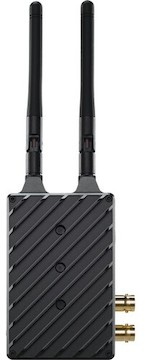

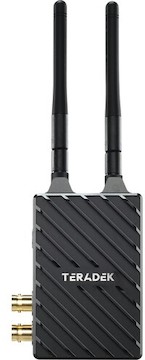

Bolt 4K LT 750 transmitter
1/4"-20 shoe adapter

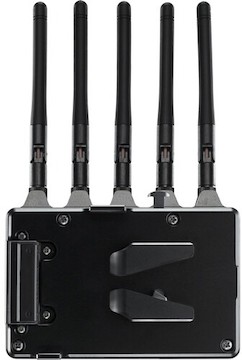

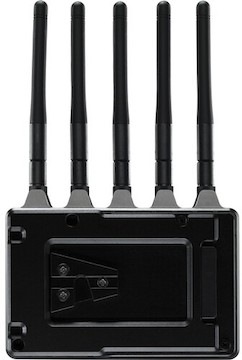

Bolt 4K LT 750 receiver
RX V-Mount plates
D-tap to Lemo power cable
AC adapter
USB 2.0 A to Micro cable
5/8" to 1/4"-20 stand adapter
(7) Wireless antenna
Bolt pairing guide

Resources

Quick Start Guide

Reference Guide

Teradek Bolt App (iOS)

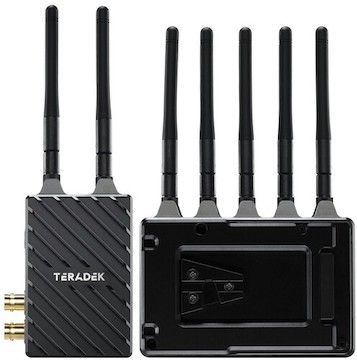

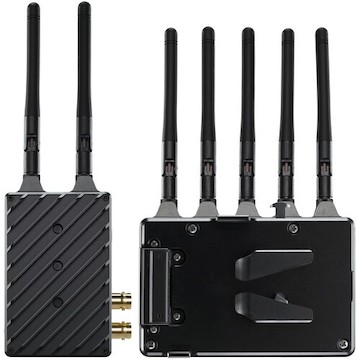

Teradek Bolt 4K LT 750 3G-SDI/HDMI Kit (V-Mount)

The Teradek Bolt 4K LT 750 3G-SDI/HDMI Wireless Kit (V-Mount) is a ground-up redesign of the Bolt wireless video transmission system with 4K compatibility and more intuitive app control. Key features include:

Transmit encrypted wireless 4K/30p video up to 750’ line-of-sight
3G-SDI & HDMI 2.0 I/O signals with cross conversion
Compatible with Bolt 4K 750, Bolt 4K 1500, & Bolt 4K Max products
V-Mount batteries & charger not included

Q & A

Does this rental include any mounting hardware?

We include one 5/8" receiver to 3/8"-16 threaded stud stand adapter. The Rx features 1/4"-20 and 3/8"-16 threaded holes for mounting while the Tx has 1/4"-20 threaded holes and 1/4"-20 bolts for mounting.

Does this rental include V-Mount batteries?

This rental does not include V-Mount batteries or a charger, but they can be rented separately here.

Is this compatible with previous Teradek Bolt Pro or XT models?

This receiver is only compatible with Teradek Bolt 4K products like the 750, 1500, and Max.

Specifications

Brand	Teradek
Item Type	Monitoring
Monitoring Type	Wireless
Receiver	Outputs 3G-SDI (2x) HDMI Type A (1x) Dimensions 4.8 × 3.7 × 1.06″ Weight (RX Only) 10.3 oz Mount Compatibility ¼-20" 3/8"-16 M3 (2x) Multicast Capable 6 (RX):1 (TX)
System	Bolt 4K
Transmitter	Inputs 3G-SDI (1x) HDMI Type A (1x) Output 3G-SDI Loop-out (1x) Dimensions 2.36 × 4.05 × 1.3″ Weight (TX Only) 7.3 oz Mount Compatibility ¼-20" 3/8-16" M3 (2x) Multicast Capable 1 (TX):6 (RX)
Video Processing	Color Sampling SDI: YCbCr 4:2:2 10-bit HDMI: RGB 4:4:4 8-bit Supported Formats 4Kp: 23.98/24/25/29.97/30 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080psf: 23.98/24/25/29.97/30 1080i: 50/59.94/60 720p: 50/59.94/60 480p: 50 576p59.94/60 480i(NTSC)/576i(PAL)
Wireless	Latency <0.001 sec Range Up to 750’ line of sight (under ideal conditions) Non-DFS Frequencies 5.19 ~ 5.23 GHz 5.755 ~ 5.795 GHz (US only) DFS Frequencies 5.27 ~ 5.67 GHz

Includes

Bolt 4K LT 750 transmitter
1/4"-20 shoe adapter
Bolt 4K LT 750 receiver
RX V-Mount plates
D-tap to Lemo power cable
AC adapter
USB 2.0 A to Micro cable
5/8" to 1/4"-20 stand adapter
(7) Wireless antenna
Bolt pairing guide

Specifications

Brand	Teradek
Item Type	Monitoring
Monitoring Type	Wireless
Receiver	Outputs 3G-SDI (2x) HDMI Type A (1x) Dimensions 4.8 × 3.7 × 1.06″ Weight (RX Only) 10.3 oz Mount Compatibility ¼-20" 3/8"-16 M3 (2x) Multicast Capable 6 (RX):1 (TX)
System	Bolt 4K
Transmitter	Inputs 3G-SDI (1x) HDMI Type A (1x) Output 3G-SDI Loop-out (1x) Dimensions 2.36 × 4.05 × 1.3″ Weight (TX Only) 7.3 oz Mount Compatibility ¼-20" 3/8-16" M3 (2x) Multicast Capable 1 (TX):6 (RX)
Video Processing	Color Sampling SDI: YCbCr 4:2:2 10-bit HDMI: RGB 4:4:4 8-bit Supported Formats 4Kp: 23.98/24/25/29.97/30 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080psf: 23.98/24/25/29.97/30 1080i: 50/59.94/60 720p: 50/59.94/60 480p: 50 576p59.94/60 480i(NTSC)/576i(PAL)
Wireless	Latency <0.001 sec Range Up to 750’ line of sight (under ideal conditions) Non-DFS Frequencies 5.19 ~ 5.23 GHz 5.755 ~ 5.795 GHz (US only) DFS Frequencies 5.27 ~ 5.67 GHz

Resources

Quick Start Guide

Reference Guide

Teradek Bolt App (iOS)

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$48.00	$174.00	$222.00	$74.00
4 days	$52.00	$186.00	$238.00	$59.50
7 days	$69.00	$248.00	$317.00	$45.29
10 days	$93.00	$335.00	$428.00	$42.80
14 days	$121.00	$434.00	$555.00	$39.64
21 days	$162.00	$583.00	$745.00	$35.48
30 days	$204.00	$732.00	$936.00	$31.20
45 days	$266.00	$955.00	$1221.00	$27.13
60 days	$311.00	$1116.00	$1427.00	$23.78
90 days	$400.00	$1438.00	$1838.00	$20.42

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$32.00	$174.00	$206.00	$68.67
4 days	$35.00	$186.00	$221.00	$55.25
7 days	$46.00	$248.00	$294.00	$42.00
10 days	$62.00	$335.00	$397.00	$39.70
14 days	$81.00	$434.00	$515.00	$36.79
21 days	$108.00	$583.00	$691.00	$32.90
30 days	$136.00	$732.00	$868.00	$28.93
45 days	$177.00	$955.00	$1132.00	$25.16
60 days	$207.00	$1116.00	$1323.00	$22.05
90 days	$267.00	$1438.00	$1705.00	$18.94

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$174.00	$58.00
4 days	$186.00	$46.50
7 days	$248.00	$35.43
10 days	$335.00	$33.50
14 days	$434.00	$31.00
21 days	$583.00	$27.76
30 days	$732.00	$24.40
45 days	$955.00	$21.22
60 days	$1116.00	$18.60
90 days	$1438.00	$15.98
