Teradek Bolt 4K LT HDMI Receiver (V-Mount)

$77.00
/
7 Day

Rental

Interested in purchasing?

Includes

  • Teradek Bolt 4K LT HDMI Receiver
  • RX V-Mount plate – male
  • RX V-Mount plate – female
  • AC adapter
  • USB 2.0 A to Type C cable
  • Wireless antenna (5)
  • 5/8" receiver with 1/4"-20 threading

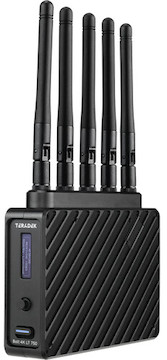

Teradek Bolt 4K LT HDMI Receiver (V-Mount)

The Teradek Bolt 4K LT HDMI Receiver (V-Mount) is an add-on HDMI-only zero-delay wireless receiver. This is the predecessor to the Bolt 6 LT, which is available at a comparable price. Key features include:

  • Receive wireless UHD 4K30p video from up to 750 feet

  • HDMI monitoring; Rec. 2020 HDR 10-bit 4:2:2 color gamut

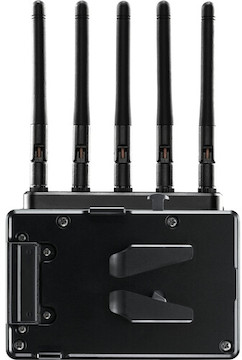

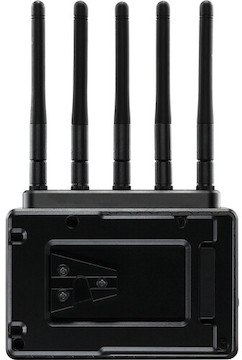

  • V-Mount pass-thru plates and AC adapter included

  • V-Mount batteries not included

Read More

Q & A

  • Is this receiver compatible with previous Teradek Bolt Pro or XT models?
    • This receiver is only compatible with Teradek Bolt 4K and Bolt 4K LT series devices over the 5 GHz signal spectrum.

  • Does this rental include V-Mount batteries?
    • This rental includes a V-Mount battery plate but doesn’t include batteries or a charger. You can rent V-Mount batteries separately here.

  • Do you offer this receiver with a Gold Mount battery plate?
    • Yes! We also offer this receiver with a Gold Mount battery plate.

  • Does this rental include a Bolt 4K LT HDMI Transmitter?
  • Specifications

    Brand

    Teradek

    Environmental

    IP Rating

    • None
    Operating Temperature
    • 32 to 104°F

    Format Support

    Video Format (HDMI)

    • DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
    • UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 60
    • 480i: 59.94
    Audio Format
    • 2-Channel 24-Bit 48 kHz
    Timecode Support
    • Yes

    Inputs/Outputs

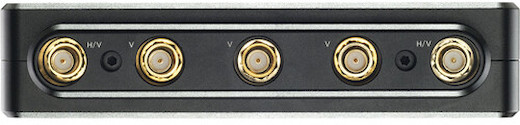

    Antenna Ports

    • 5x RP-SMA Female
    Video
    • 1x HDMI Type A (HDMI 1.4b) Output
    Embedded Audio
    • HDMI: 2-Channel
    Audio
    • None
    Power I/O
    • 1x LEMO 2-Pin (28 VDC)
    • Input 1x Proprietary (28 VDC) Input
    Other I/O
    • 1x Micro-USB Input
    Encryption
    • 256-Bit AES

    Item Type

    Monitoring

    Mfr. Model Number

    10-2207-V

    Monitoring Type

    Wireless

    Physical

    Mounting

    • 1x 1/4"-20 Female
    Dimensions (L x W x H)
    • 4.8 × 3.7 × 1.1″
    Weight
    • 0.6 lb.

    See All

    Includes

    • Teradek Bolt 4K LT HDMI Receiver
    • RX V-Mount plate – male
    • RX V-Mount plate – female
    • AC adapter
    • USB 2.0 A to Type C cable
    • Wireless antenna (5)
    • 5/8" receiver with 1/4"-20 threading

    Specifications

    Brand

    Teradek

    Environmental

    IP Rating

    • None
    Operating Temperature
    • 32 to 104°F

    Format Support

    Video Format (HDMI)

    • DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
    • UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 576p: 50
    • 480p: 60/59.94
    • 576i: 60
    • 480i: 59.94
    Audio Format
    • 2-Channel 24-Bit 48 kHz
    Timecode Support
    • Yes

    Inputs/Outputs

    Antenna Ports

    • 5x RP-SMA Female
    Video
    • 1x HDMI Type A (HDMI 1.4b) Output
    Embedded Audio
    • HDMI: 2-Channel
    Audio
    • None
    Power I/O
    • 1x LEMO 2-Pin (28 VDC)
    • Input 1x Proprietary (28 VDC) Input
    Other I/O
    • 1x Micro-USB Input
    Encryption
    • 256-Bit AES

    Item Type

    Monitoring

    Mfr. Model Number

    10-2207-V

    Monitoring Type

    Wireless

    Physical

    Mounting

    • 1x 1/4"-20 Female
    Dimensions (L x W x H)
    • 4.8 × 3.7 × 1.1″
    Weight
    • 0.6 lb.

    See All

    Reviews

    See Reviews
