Teradek Bolt 6 LT 1500 RX / TX w/ Antenna Array (Gold Mount)

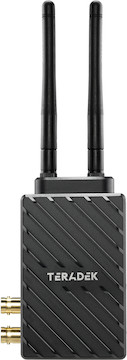

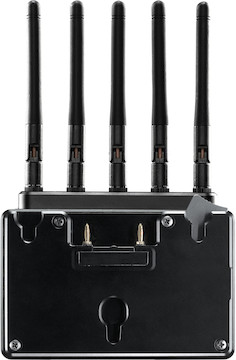

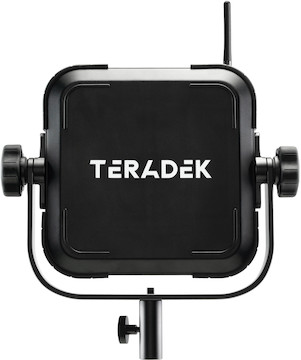

The Teradek Bolt 6 LT 1500 RX / TX w/ Antenna Array (Gold Mount) offers a transmitter with improved metadata, range, and compatibility compared to its predecessors, a receiver that enables you to receive 4K30 HD video from up to 1500 feet away, and an Antenna Array to strengthen the signal reception.

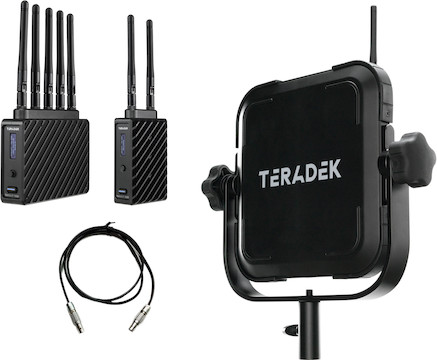

The Teradek Bolt 6 LT 1500 RX / TX w/ Antenna Array (Gold Mount) package includes:

Q & A

Is there a V-Mount version of this?

Absolutely! You can find the V-Mount verson here.

Specifications

Brand	Teradek
Environmental	Transmitter IP Rating None Operating Temperature 32 to 72°F Receiver IP Rating None Operating Temperature 32 to 72°F
Format Support	Transmitter Audio Format 2-Channel 24-Bit 48 kHz Timecode Support Yes Receiver Audio Format 2-Channel 24-Bit 48 kHz Timecode Support Yes
Frequency Range	Transmitter Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz Receiver Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
General	Transmitter Material of Construction Aluminum Polycarbonate Dimensions 4.1 × 2.4 × 1.3″ Weight 7.3 oz Receiver Material of Construction Aluminum Polycarbonate Dimensions 4.8 × 3.7 × 1.1″ Excluding Battery Plate Weight 10.3 oz Antenna Array Dimensions 13.78 × 13.78 × 1.25″ Weight 39oz
Item Type	Monitoring and Wireless Video
Monitoring Type	Wireless
Mounting	Transmitter 1 × 1/4"-20 Female Receiver 1 × 1/4"-20 Female 1 × 3/8"-16 Female
Power	Transmitter DC Input Power 6 to 28 VDC Power Consumption 9 W Receiver DC Input Power 6 to 28 VDC Battery Type 1 x Gold Mount (Interchangeable Mount) Power Consumption 11 W
Video Formats	Transmitter HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 Receiver HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Wireless	Transmitter Wireless Range 1500’ (Line-of-Sight) Channel Bandwidth 40 MHz, 20 MHz Latency <0.01 ms RF Power 23 dBm Wi-Fi None Bluetooth Yes Receiver Wireless Range 1500’ (Line-of-Sight) Channel Bandwidth 40 MHz, 20 MHz Latency <0.01 ms RF Power 23 dBm Wi-Fi None Bluetooth Yes Antenna Array Frequency Range 4.9 – 7.5 GHz Gain 14 dBi 16 dBi Beam-width Horizontal: 75° Vertical: 35 ° Impedance 50 ohm
