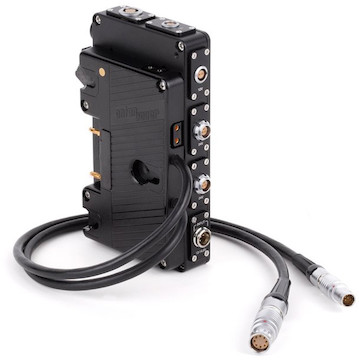

Gold Mount Power. The Wooden ALEXA Mini Gold Mount D-Box features an authentic Anton Bauer Gold Mount battery plate with a single, unregulated hard wired D-Tap port. Please note, batteries and chargers are not included but can be rented separately here.

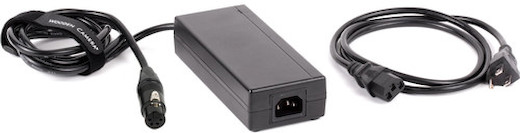

AC Adapter Included With Rental. In addition to the battery option, this D-Box can be powered by the supplied 4-pin XLR adapter. Use of this adapter allows batteries to be hot swapped during the course of a long shot.

Accessory Power Ports. This D-Box features a myriad of LEMO and Fischer compatible power ports as well as a port to power the Starlite HD5 Monitor for ARRI (not included). See the list or video below for a complete overview of the accessory power options:

D-Box Accessory Port Breakdown:

• 7-pin LEMO compatible – EXT Port
  - Replica of connector on rear of camera
  - Maintains functionality of external communication, R/S, and power

• 2-pin LEMO compatible – 12V Unregulated
  - ARRI standard wiring

• 2-pin LEMO compatible – 12V Unregulated
  - ARRI standard wiring

• 3-pin Fischer – 24V Regulated
  - Regulator built in to convert battery voltage to 24V
  - Maximum 3A shared between slot 4/5

• 3-pin Fischer – 24V Regulated
  - Regulator built in to convert battery voltage to 24V
  - Maximum 3A shared between slot 4/5

• 4-pin Mini XLR – 12V Input

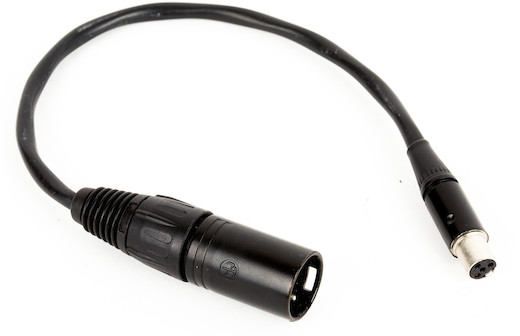

  - Hot swappable power input with included 8 inch pigtail cable for standard 4-pin XLR (12V nominal)
  - Capable of providing power to accessories and camera without brick battery attached
