Zacuto Kameleon EVF Pro w/ Combination Power and SDI Cable

$137.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

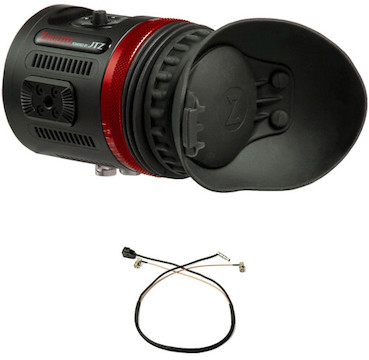

Zacuto Kameleon EVF Pro w/ Combination Power and SDI Cable

The Zacuto Kameleon EVF Pro w/ Combination Power and SDI Cable provides an HD viewfinder suitable for DSLRs, mirrorless, and digital cine cameras, with an included combination power/video cable. Key features include:

Supports resolutions up to 1080p60
BNC video cable
Four user-assignable buttons

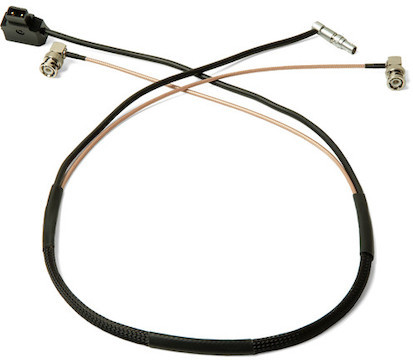

On/Off D-Tap to 4-Pin LEMO power cable

Q & A

Can I use the USB port to power the viewfinder?

No. The USB port is only intended to be used for firmware updates.

Specifications

Accessory Type	Cables
Brand	Zacuto
Cable Type	Power
Display	Color/Monochrome Color Panel Type OLED Display Size 0.71" Screen Resolution 1920 × 1080 Aspect Ratio 16:9 Touchscreen No Contrast Ratio 10,000:1 Bit Depth / Color Support 8-Bit (16.7 Million Colors) Pixels Per Inch (ppi) 3103 ppi Image Controls Anamorphic De-Squeeze Customizable Aspect Ratios False Color Focus Peaking Histogram Image Flip Scaling Screen Markers Vectorscope Waveform Zebra
General	Mounting 1 × 1/4"-20 Female 2 x Rosette with 1/4"-20 Female Dimensions 4.9 × 2.75 × 2.83″ Weight 15 oz
Inputs/Outputs	Video I/O 1 x HDMI Input 1 x BNC (3G-SDI) Input Video Format HDMI DCI 4K UHD 4K 1080p 1080i 720p SDI 1080p 1080i 720p Embedded Audio HDMI SDI Power I/O 1 x LEMO 0B 4-Pin (20 VDC) Input Other I/O 1 x USB-C
Item Type	Monitoring and Accessory
Monitoring Type	Accessories
Optics	Diopter Correction -1.0 to +4.0
Power	DC Input Power 7 to 20 VDC Power Consumption 5 W
Power Cord	Length 30" Connector 1 BNC (SDI) Connector 2 4-Pin LEMO Connector 3 BNC (SDI) Connector 4 D-Tap

See All

Includes

Specifications

Accessory Type	Cables
Brand	Zacuto
Cable Type	Power
Display	Color/Monochrome Color Panel Type OLED Display Size 0.71" Screen Resolution 1920 × 1080 Aspect Ratio 16:9 Touchscreen No Contrast Ratio 10,000:1 Bit Depth / Color Support 8-Bit (16.7 Million Colors) Pixels Per Inch (ppi) 3103 ppi Image Controls Anamorphic De-Squeeze Customizable Aspect Ratios False Color Focus Peaking Histogram Image Flip Scaling Screen Markers Vectorscope Waveform Zebra
General	Mounting 1 × 1/4"-20 Female 2 x Rosette with 1/4"-20 Female Dimensions 4.9 × 2.75 × 2.83″ Weight 15 oz
Inputs/Outputs	Video I/O 1 x HDMI Input 1 x BNC (3G-SDI) Input Video Format HDMI DCI 4K UHD 4K 1080p 1080i 720p SDI 1080p 1080i 720p Embedded Audio HDMI SDI Power I/O 1 x LEMO 0B 4-Pin (20 VDC) Input Other I/O 1 x USB-C
Item Type	Monitoring and Accessory
Monitoring Type	Accessories
Optics	Diopter Correction -1.0 to +4.0
Power	DC Input Power 7 to 20 VDC Power Consumption 5 W
Power Cord	Length 30" Connector 1 BNC (SDI) Connector 2 4-Pin LEMO Connector 3 BNC (SDI) Connector 4 D-Tap
