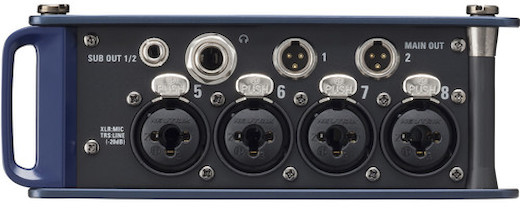

Zoom F8 Multi Track Field Recorder

Includes

  • Zoom F8 Field Recorder
  • Camera mount
  • Battery holder
  • AC adapter
  • (2) TA3 Mini XLR-to-XLR adapter cable
  • USB Male A to Mini B cable
  • PortaBrace AR-Z8 case

Zoom F8 Multi Track Field Recorder

Expected Release Date: 11/18/24

While we no longer rent this product, we do carry the Zoom F8n Multi Track Field Recorder. You may also find alternatives in the Recommended section on the left-hand side of this page.

  • Supports SMPTE timecode

  • Bluetooth control via iOS devices

  • Dual SDXC card slots

  • Versatile power options

Read More

LR's Take

In General


The Zoom F8 is an incredibly versatile field recorder providing high-quality audio. The eight-input/ten-track recording provides high-resolution audio while being small enough to fit in your hand (...

Read More

Q & A

  • Does this rental include batteries?
  • Specifications

    Audio Type

    Field Recorder

    Brand

    Zoom

    Inputs/Outputs

    Mic/Line Inputs

    • 8x XLR/TRS combo jacks
      • Phantom (+ 24/+ 48v) 9910mA max for each XLR channel
    • 1x Zoom mic capsule (not included)
    • Built-in mic
    Main Outs
    • 2x TA3 mini-XLR jacks (balanced)
    Sub Outs
    • ⅛” stereo mini-jack (unbalanced)
    Headphone Out
    • 1x ¼” stereo jack (unbalanced)
    Additional Inputs/Outputs
    • BNC – Timecode (internal and external)
    • USB mini (data transfer)

    Item Type

    Audio

    Physical

    Dimensions (WxHxD)

    • 7” x 5.5” x 2.1”
    Weight
    • 2.1 lbs
    Mounts
    • ¼-20 female inset (recorder base)
    • ¼-20 male stud (camera mounting plate)

    Power Supply

    AC Adapter

    • AD-19 DC12V 2A (included)
    Battery Compatibility
    • 8x AA (not included)
    • Alkaline, NiMH (2450mAh), Lithium

    Recording

    Supported Media

    • SD
    • SDHC
    • SDXC
    Maximum Card Capacity
    • SD: Up to 2Gb
    • SDHC: 4GB-32GB
    • SDXC: 64GB-512GB
    Supported Formats
    • iXML (wav)
    • BWF (wav)
    • Mono/stereo/2-10 ch poly (wav)
    Sampling
    • WAV: 16/24-bit, 44.1-192kHz
    • MP3: 128/192/320 kbps, 44.1/48kHz
    Approximate Record Times
    • 48kHz/24-bit WAV: 56 Min/GB
    • 192kHz/24-bit WAV: 15 Min/GB
    Max Simultaneous Recording Tracks
    • 10: WAV/8 Inputs + stereo mix
    • 8: WAV 192kHz
    • 2: MP3
    Special Recording Modes
    • Ambisonic Mode
    • Track 1-8 Mono Mode
    • Stereo Pair Mode

    Includes

    • Zoom F8 Field Recorder
    • Camera mount
    • Battery holder
    • AC adapter
    • (2) TA3 Mini XLR-to-XLR adapter cable
    • USB Male A to Mini B cable
    • PortaBrace AR-Z8 case

    Specifications

    Audio Type

    Field Recorder

    Brand

    Zoom

    Inputs/Outputs

    Mic/Line Inputs

    • 8x XLR/TRS combo jacks
      • Phantom (+ 24/+ 48v) 9910mA max for each XLR channel
    • 1x Zoom mic capsule (not included)
    • Built-in mic
    Main Outs
    • 2x TA3 mini-XLR jacks (balanced)
    Sub Outs
    • ⅛” stereo mini-jack (unbalanced)
    Headphone Out
    • 1x ¼” stereo jack (unbalanced)
    Additional Inputs/Outputs
    • BNC – Timecode (internal and external)
    • USB mini (data transfer)

    Item Type

    Audio

    Physical

    Dimensions (WxHxD)

    • 7” x 5.5” x 2.1”
    Weight
    • 2.1 lbs
    Mounts
    • ¼-20 female inset (recorder base)
    • ¼-20 male stud (camera mounting plate)

    Power Supply

    AC Adapter

    • AD-19 DC12V 2A (included)
    Battery Compatibility
    • 8x AA (not included)
    • Alkaline, NiMH (2450mAh), Lithium

    Recording

    Supported Media

    • SD
    • SDHC
    • SDXC
    Maximum Card Capacity
    • SD: Up to 2Gb
    • SDHC: 4GB-32GB
    • SDXC: 64GB-512GB
    Supported Formats
    • iXML (wav)
    • BWF (wav)
    • Mono/stereo/2-10 ch poly (wav)
    Sampling
    • WAV: 16/24-bit, 44.1-192kHz
    • MP3: 128/192/320 kbps, 44.1/48kHz
    Approximate Record Times
    • 48kHz/24-bit WAV: 56 Min/GB
    • 192kHz/24-bit WAV: 15 Min/GB
    Max Simultaneous Recording Tracks
    • 10: WAV/8 Inputs + stereo mix
    • 8: WAV 192kHz
    • 2: MP3
    Special Recording Modes
    • Ambisonic Mode
    • Track 1-8 Mono Mode
    • Stereo Pair Mode
