ARRI SkyPanel S30-C LED Softlight w/ V-Mount Plate
Includes
- ARRI SkyPanel S30-C LED Softlight
- ARRI Standard Diffusion Panel for SkyPanel S30
- ARRI S30 PSU
- ARRI PSU Rail Mount Adapter for SkyPanel S30
- ARRI powerCON TRUE 1 to Edison Mains 10-foot cable
- ARRI XLR 3-Pin to XLR 3-pin DC Power 10-foot cable
- ARRI Manual Yoke for SkyPanel S30
- ARRI V-Mount Battery Plate for SkyPanel S30
- ARRI Combo Baby/Junior Pin
- ARRI Locking Pin Mounting Plate
- ARRI M6x20mm Thumbscrew
- Wheeled Hard Case

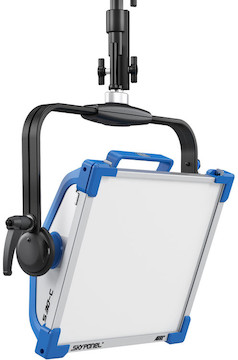

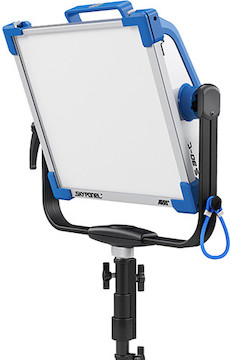

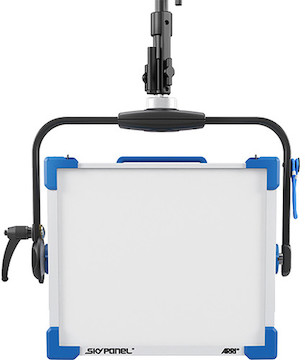

ARRI SkyPanel S30-C LED Softlight w/ V-Mount Plate
The ARRI SkyPanel S30-C LED Softlight with V-Mount Plate is a bright, versatile soft light that incorporates features from ARRI’s L-Series LED Fresnels. This version includes a dual v-mount battery plate. Key features include:
Preinstalled Anton Bauer V-Mount battery plate
Full-gamut color mixing; hue and saturation control
Color temperature adjustable from 2800K to 10,000K
Full minus to full plusgreen; 0-100% dimming
Q & A
The ARRI SkyPanel Remote is available as a separate rental item. For additional wireless capabilities, check out the ARRI SkyLink Base Station and ARRI SkyLink Receiver (not included).
Since we have multiple V-Mount battery and charger options, we’ve elected to not include any with the rental. However, you can find our available options in the Recommended section on the left-hand side of the page.
Can’t see the recommended list? You can find available v-mount solutions here.
Please note, this battery bracket requires two batteries to be used at a time and they cannot be hot swapped. Please plan your power needs accordingly.
Yes. Thank you for asking. When using the Gold Mount or V-Mount battery plates, there’s a small software bug involving the power supply. If you try to turn the light on at 20% brightness or above, you’ll get an error message: “Critical error: E05, PSU.” That error will prevent the light from turning on, but simply clearing it in the menu will allow you use the light exactly as intended, with no ill effects. The issue will be addressed in an upcoming firmware update.
Specifications
| Beam Angle | 95° |
| Brand | ARRI |
| Color Accuracy Standard | CRI 97 at 5600K, TLCI 97 at 5600K, CRI 94 at 3200K, TLCI 94 at 3200K |
| Color Mode | RGBW |
| Color Temperature | Variable |
| Dimensions | 19.6 × 19.9 × 5.2″ |
| Dimming | 0-100% (Stepped) |
| Item Type | Lighting |
