Atomos Ninja V 5" 4K HDMI Recording Monitor

$46.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Ninja V recorder

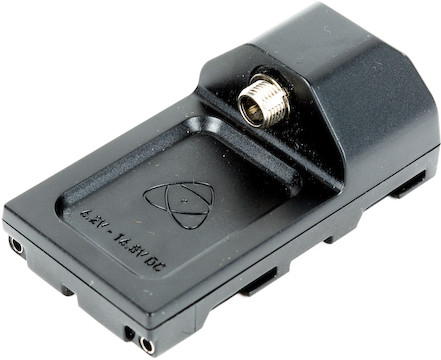

Battery eliminator

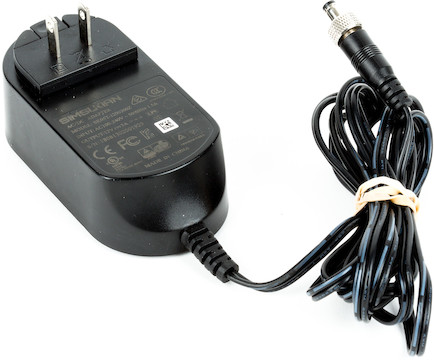

Locking AC adapter
Master Caddy
Case

Resources

Manual

Quick Start Guide

Atomos Ninja V 5" 4K HDMI Recording Monitor

The Atomos Ninja V is a compact, 5-inch, HDMI video recorder capable of capturing DCI 4K up to 60 fps to SSD media. Key features include:

10-bit, 1000 cd/m², 1920 × 1080, touchscreen display
10-bit, 4:2:2 ProRes RAW & DNxHR recording
Powered by AC adapter or separately available Sony L-series battery
Records to SSD media

DCI 4K/60p ProRes & DNxHR Recording. The Atomos Ninja V is a very capable recorder that borrows a lot of its features from the larger 7-inch Atomos Ninja Inferno, but offers them in a more compact form factor. On the Ninja V, DCI as well as UHD 4K can be recorded at frame rates up to 60p, and footage can be saved in RAW, ProRes or DNxHR formats. Recorded files will have a maximum of 10-bit 4:2:2 chroma subsampling.

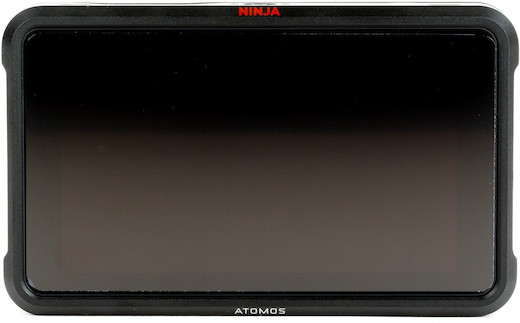

5-Inch, 1000 cd/m², IPS LCD Screen. This recorder has a bright, daylight-viewable LCD panel with touchscreen controls. The 1920×1080, 427 ppi resolution provides super crisp images on the 5" display, and the 10-bit bit depth renders rich, accurate colors. A sun hood is provided to obscure direct sunlight.

AtomHDR Display. The traditional Rec.709 video standard is based on an 8-bit color depth and about 6.5 stops of dynamic range. The Ninja V’s monitor features a wide 10-stop dynamic range, making it capable of natively displaying log footage without it looking washed out. Built-in presets for Sony, Canon, Panasonic, ARRI, RED, and JVC cameras convert the typically flat-looking log-based images into vibrant HDR pictures. Please note that the preset looks will only actually affect viewing; the recorded footage remains totally unaltered.

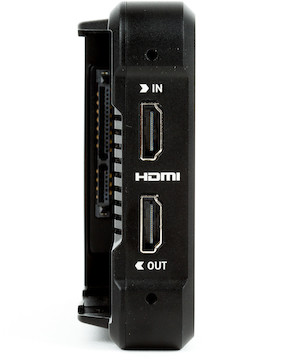

HDMI-Only Interface. The Ninja V offers full-size HDMI input and output ports. If you like the Ninja V form factor but need SDI I/Os, we recommend renting the Atomos AtomX SDI Module featuring two configurable 12G-SDI ports, in addition to the rental of this recorder. While this version of the Ninja V does not support any RAW signals via the SDI adapter and there is no cross conversion of HDMI / SDI signals, the Atomos Ninja V Pro Kit enables both RAW over SDI and cross conversion.

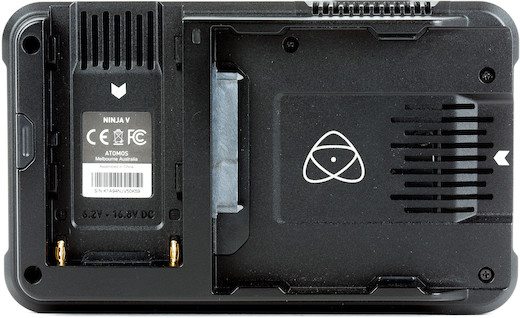

Media & Power. This recorder takes the same Master Caddy II SSD enclosure that has been used for the last few generations of Atomos products, and this rental includes one to install your own SSDs into. This rental includes an AC adapter for power, and the monitor can be powered by Sony L-series batteries (not included) as well. SSD media and power kits are separately rentable.

Q & A

Does this rental include mounting hardware?

No. Since everyone’s mounting needs differ, we decided to make mounting a la carte. We have a wide variety of support gear to choose from, including monitor arms.

Does this monitor have the H.265 codec license installed?

This monitor doesn’t have the H.265 codec license installed, but the Atomos Ninja V+ 5.2-inch 8K HDMI Recorder does.

Does the Ninja V record RAW?

Yes, the Ninja V supports ProRes RAW over HDMI.

Does this rental include HDMI or SDI cables?

This rental doesn’t include any HDMI or SDI cables. You can find our cables here. If you’re unsure about which cord is right for your application, please contact us for verification.

Does this rental include an SSD?

This rental doesn’t include an SSD, but they’re available as separate rental items. You can see some options under Recommended on the left-hand side of this page.

Specifications

Brand	Atomos

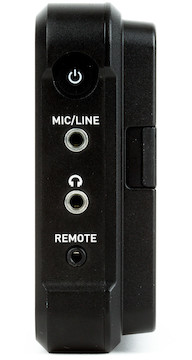

Inputs/Outputs	Audio Inputs 3.5mm stereo mini-jack Audio Input Controls Mic/Line Audio Output 3.5mm stereo mini-jack Video Input HDMI Type-A 2.0 Video Out HDMI Type-A 2.0 Additional Inputs/Outputs LANC
Item Type	Recorder and Recorders
Monitoring	LCD Panel 5” IPS LCD Resolution: 1920 × 1080 Touchscreen PPI: 427 Aspect Ratio: 16:9 native LUT Support 3D LUT (.cube format) Anamorphic De-Squeeze 2x, 1.5x, 1.33x, Panasonic 8:3

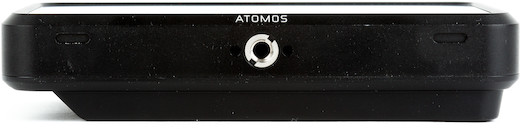

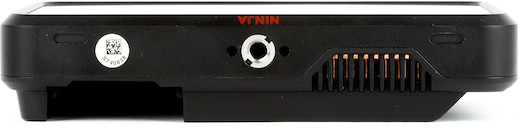

Physical	Dimensions (W x H x D) 5.94 × 3.6 × 1.22″ Accessory Mounts ¼-20 (center top and bottom) Weight 11.28 oz Materials Aluminium alloy chassis with ABS polycarbonate back plate
Power Supply	AC Adapter Supplied Battery Type: Sony L Operating Time: Approximately 1.5 hr
Recording	Formats ProRes 422HQ, ProRes 422, ProRes 422LT, DNxHR HQX, DNxHR HQ, DNxHR SQ, DNxHR, LB Modes 4K DCI; 24/25/30/50/60p 4K UHD; 24/25/30/50/60p 1080p; 24/25/30/50/60/100/120 1080i; 50/60i, 720p; 50/60p Media SSD, Mini-SSD

Includes

Ninja V recorder
Battery eliminator
Locking AC adapter
Master Caddy
Case

Specifications

Brand	Atomos
Inputs/Outputs	Audio Inputs 3.5mm stereo mini-jack Audio Input Controls Mic/Line Audio Output 3.5mm stereo mini-jack Video Input HDMI Type-A 2.0 Video Out HDMI Type-A 2.0 Additional Inputs/Outputs LANC
Item Type	Recorder and Recorders
Monitoring	LCD Panel 5” IPS LCD Resolution: 1920 × 1080 Touchscreen PPI: 427 Aspect Ratio: 16:9 native LUT Support 3D LUT (.cube format) Anamorphic De-Squeeze 2x, 1.5x, 1.33x, Panasonic 8:3
Physical	Dimensions (W x H x D) 5.94 × 3.6 × 1.22″ Accessory Mounts ¼-20 (center top and bottom) Weight 11.28 oz Materials Aluminium alloy chassis with ABS polycarbonate back plate
Power Supply	AC Adapter Supplied Battery Type: Sony L Operating Time: Approximately 1.5 hr
Recording	Formats ProRes 422HQ, ProRes 422, ProRes 422LT, DNxHR HQX, DNxHR HQ, DNxHR SQ, DNxHR, LB Modes 4K DCI; 24/25/30/50/60p 4K UHD; 24/25/30/50/60p 1080p; 24/25/30/50/60/100/120 1080i; 50/60i, 720p; 50/60p Media SSD, Mini-SSD
