BirdDog Eyes P200 3-Camera NDI PTZ Kit w/ Keyboard

$541.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

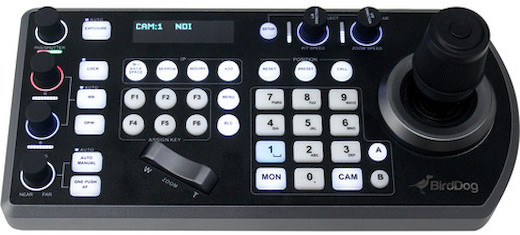

BirdDog PTZ Keyboard

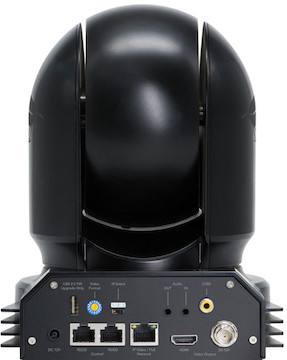

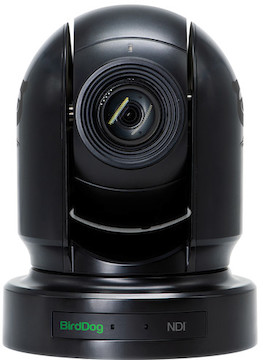

(3) BirdDog Eyes P200 NDI PTZ Camera

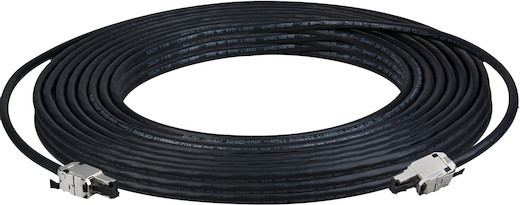

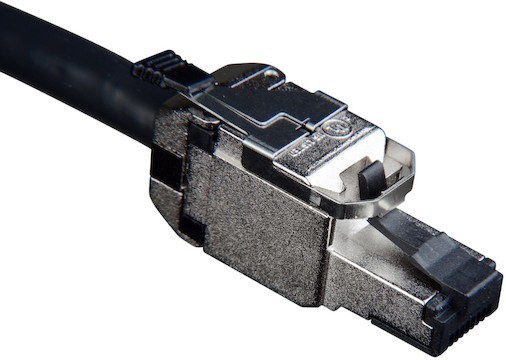

(4) Belden 150ft Cat 6A Ethernet Cable

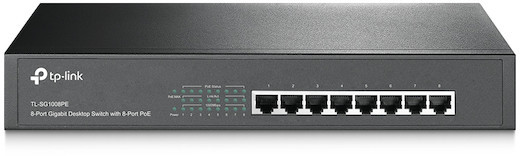

TP-LINK 8-Port Gigabit Ethernet Poe+ Switch

Resources

Keyboard User Guide

P200 User Guide

Keyboard Firmware Notes

BirdDog Eyes P200 3-Camera NDI PTZ Kit w/ Keyboard

The BirdDog Eyes P200 3-Camera NDI PTZ Kit w/ Keyboard is a multi-camera, PTZ control solution centered around the BirdDog P200 Full NDI PTZ camera. This kit includes three cameras, BirdDog’s PTZ Keyboard controller, and all the accessories you need to power and communicate with the camera over ethernet in a one-click IP video package that easily integrates into an existing local network. Click on any of the items below for more information.

The BirdDog Eyes P200 3-Camera NDI PTZ Kit w/ Keyboard includes:

You might also consider adding:

Additional Cables

Belden 150ft Cat 6A Ethernet Cable
Belden 150ft Cat 6A Ethernet Cable Extension
Belden 12G-SDI BNC Cable 150 ft, 100 ft, or 50 ft
Monoprice 50-foot SlimRun HDMI Male-Male Cable
Pyle Pro 2-Channel Cable Ramp

Accessories

Linksys E1200 Wireless-N Router
BirdDog IR Remote Control
Atomos Sumo 19-inch Monitor Recorder Gold Mount or V-Mount

Support

Q & A

How can I change the resolution and frame rate?

You can adjust the resolution and frame rate through the WebUI and the IR remote. The dial has been phased out in recent firmware updates and can no longer be used to make adjustments.

Are there any compatibility concerns with this package?

The latest BirdDog updates require that the PTZ Keyboard (v4.5.203-LTS) and P200 camera (v4.5.3414-LTS) be fully updated in order to work together. Both items in this kit will be updated before shipment.

How do I access the BirdDog web remote?

All of our BirdDog cameras ship configured for DHCP, with the default web browser ID printed on the bottom of the camera so all you need to do is enter the web address in a browser window to get started. Once you access the web remote, you will need to enter the default password: birddog, one word, lowercase.
Please note that because we make every effort to ensure this camera ships in the simplest, default state, you may be subject to a camera ID recovery fee if you return the camera with a unique web ID.

Will I need anything else?

This kit is designed to integrate into an existing local network and does not include any way to monitor or stream the camera feed.

What if I need an ethernet cable run longer than 150ft?

We offer the Belden 150ft Cat 6A Ethernet Cable Extension as a separate rental item. Please note that long runs of cable may require a repeater. If you have questions, please contact us.

Specifications

Brand	BirdDog
Camcorder Type	PTZ
Camera Type	Camcorder
Inputs/Outputs	P200: Video Outputs NDI HDMI SDI Output Formats 1080p 60/59.94/50/29.97/25 1080i 60/59.94/50 720p 60/59.94/50/29.97/25 Audio I/O 3.5mm Stereo Control Interface IP PTZ Control (auto configuring) Serial PTZ Control (2x RJ45) Serial Control Protocol (VISCA/Pelco D) HD60: Audio Inputs None Audio Output None Video Input HDMI Type-A Supported Resolutions 1920 × 1080p at 30/60 fps 1920 × 1080i 1280 × 720p at 30/60 fps 768 × 576p 768 × 576i 800 × 480p Video Output HDMI Type-A Additional Inputs/Outputs USB 3.1 Gen 1 Type-C (computer connection) PTZ Keyboard: LAN: (1) RJ45 (with PoE) 100 Base-TX RS-232: (1) RJ45 RS-422: (2) RJ45
Item Type	Camera, Package, and PTZ Cameras
Lens	Focal Length 4.3-129mm Aperture F/1.6-4.7 Zoom 30x Optical Zoom 12x Digital Zoom
Package Type	PTZ Video
Sensor	1/2.8-Inch, 2.13MP CMOS

Includes

BirdDog PTZ Keyboard
(3) BirdDog Eyes P200 NDI PTZ Camera
(4) Belden 150ft Cat 6A Ethernet Cable
TP-LINK 8-Port Gigabit Ethernet Poe+ Switch

Specifications

Brand	BirdDog
Camcorder Type	PTZ
Camera Type	Camcorder
Inputs/Outputs	P200: Video Outputs NDI HDMI SDI Output Formats 1080p 60/59.94/50/29.97/25 1080i 60/59.94/50 720p 60/59.94/50/29.97/25 Audio I/O 3.5mm Stereo Control Interface IP PTZ Control (auto configuring) Serial PTZ Control (2x RJ45) Serial Control Protocol (VISCA/Pelco D) HD60: Audio Inputs None Audio Output None Video Input HDMI Type-A Supported Resolutions 1920 × 1080p at 30/60 fps 1920 × 1080i 1280 × 720p at 30/60 fps 768 × 576p 768 × 576i 800 × 480p Video Output HDMI Type-A Additional Inputs/Outputs USB 3.1 Gen 1 Type-C (computer connection) PTZ Keyboard: LAN: (1) RJ45 (with PoE) 100 Base-TX RS-232: (1) RJ45 RS-422: (2) RJ45
Item Type	Camera, Package, and PTZ Cameras
Lens	Focal Length 4.3-129mm Aperture F/1.6-4.7 Zoom 30x Optical Zoom 12x Digital Zoom
Package Type	PTZ Video
Sensor	1/2.8-Inch, 2.13MP CMOS
