BirdDog Eyes P200 NDI PTZ Camera

$135.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

BirdDog P200 camera
AC power adapter
Non-polarized power cable

Does not include
BirdDog IR Remote

Resources

User Guide

Comms Lite

Central Lite

NewTek NDI Tools (Windows & OSX)

BirdDog Eyes P200 NDI PTZ Camera

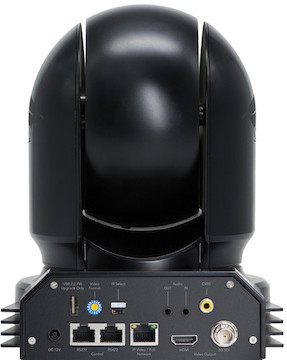

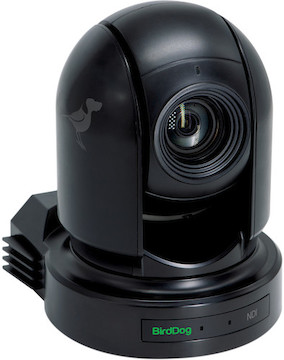

The BirdDog Eyes P200 is a full-NDI capable PTZ camera that can transmit 140 Mbps 1080/60p video from its Sony backlit sensor. Key features include:

Sony 1/2.8" backlit CMOS sensor with 2.13 MP
30x optical zoom with a 4.3mm to 129mm focal length
Simultaneous full NDI, SDI, HDMI, and CVBS outputs
Maximum 1080/60p resolution at a 140 Mbps bitrate via full NDI streaming

Q & A

Why are my settings and presets being reset when I cycle the camera's power?

You have to set and save your settings and presets in the BirdUI to preserve them when you cycle the camera’s power.

How can I change the resolution and frame rate?

You can adjust the resolution and frame rate through the WebUI and the IR remote. The dial has been phased out in recent firmware updates and can no longer be used to make adjustments.

How do I access the BirdDog web remote?

All of our BirdDog cameras ship configured for DHCP, with the default web browser ID printed on the bottom of the camera so all you need to do is enter the web address in a browser window to get started. Once you access the web remote, you will need to enter the default password: birddog, one word, lowercase.
Please note that because we make every effort to ensure this camera ships in the simplest, default state, you may be subject to a camera ID recovery fee if you return the camera with a unique web ID.

How can I control the camera's movement?

You can control basic camera moves using the BirdDog IR remote, which is available here as a separate rental item.
For fine movement control, you’ll need the BirdDog PTZ Keyboard or the BirdDog P200 Basic Streaming Kit w/ RS232 Remote PTZ Control.

Specifications

Brand	BirdDog
Camcorder Type	PTZ
Camera Type	Camcorder
Inputs/Outputs	Video Outputs NDI HDMI SDI Output Formats 1080p 60/59.94/50/29.97/25 1080i 60/59.94/50 720p 60/59.94/50/29.97/25 Audio I/O 3.5mm Stereo Control Interface IP PTZ Control (auto configuring) Serial PTZ Control (2x RJ45) Serial Control Protocol (VISCA/Pelco D)
Item Type	Camera and PTZ Cameras
Lens	Focal Length 4.3-129mm Aperture F/1.6-4.7 Zoom 30x Optical Zoom 12x Digital Zoom
Power Supply	12v DCm, PoE+ (IEEE 802.3at)
Robotics	Pan Horizontal: ±350º Continuous Zoom Adaptive Speed Range: 0.05º〜100º/S Tilt Vertical: +90º to -30º Zoom Adaptive Speed Range: 0.05°〜50°/S Presets 128 positions 0-5 adjustable speed levels
Sensor	1/2.8-Inch, 2.13MP CMOS

See All

Includes

BirdDog P200 camera
AC power adapter
Non-polarized power cable

Does not include
BirdDog IR Remote

Specifications

Brand	BirdDog
Camcorder Type	PTZ
Camera Type	Camcorder
Inputs/Outputs	Video Outputs NDI HDMI SDI Output Formats 1080p 60/59.94/50/29.97/25 1080i 60/59.94/50 720p 60/59.94/50/29.97/25 Audio I/O 3.5mm Stereo Control Interface IP PTZ Control (auto configuring) Serial PTZ Control (2x RJ45) Serial Control Protocol (VISCA/Pelco D)
Item Type	Camera and PTZ Cameras
Lens	Focal Length 4.3-129mm Aperture F/1.6-4.7 Zoom 30x Optical Zoom 12x Digital Zoom
Power Supply	12v DCm, PoE+ (IEEE 802.3at)
Robotics	Pan Horizontal: ±350º Continuous Zoom Adaptive Speed Range: 0.05º〜100º/S Tilt Vertical: +90º to -30º Zoom Adaptive Speed Range: 0.05°〜50°/S Presets 128 positions 0-5 adjustable speed levels
Sensor	1/2.8-Inch, 2.13MP CMOS

See All

Resources

User Guide

Comms Lite

Central Lite

NewTek NDI Tools (Windows & OSX)

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$23.00	$104.00	$127.00	$42.33
4 days	$25.00	$109.00	$134.00	$33.50
7 days	$33.00	$135.00	$168.00	$24.00
10 days	$45.00	$172.00	$217.00	$21.70
14 days	$58.00	$214.00	$272.00	$19.43
21 days	$78.00	$277.00	$355.00	$16.90
30 days	$97.00	$340.00	$437.00	$14.57
45 days	$127.00	$434.00	$561.00	$12.47
60 days	$149.00	$503.00	$652.00	$10.87
90 days	$191.00	$639.00	$830.00	$9.22

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$15.00	$104.00	$119.00	$39.67
4 days	$17.00	$109.00	$126.00	$31.50
7 days	$22.00	$135.00	$157.00	$22.43
10 days	$30.00	$172.00	$202.00	$20.20
14 days	$39.00	$214.00	$253.00	$18.07
21 days	$52.00	$277.00	$329.00	$15.67
30 days	$65.00	$340.00	$405.00	$13.50
45 days	$85.00	$434.00	$519.00	$11.53
60 days	$99.00	$503.00	$602.00	$10.03
90 days	$128.00	$639.00	$767.00	$8.52

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$104.00	$34.67
4 days	$109.00	$27.25
7 days	$135.00	$19.29
10 days	$172.00	$17.20
14 days	$214.00	$15.29
21 days	$277.00	$13.19
30 days	$340.00	$11.33
45 days	$434.00	$9.64
60 days	$503.00	$8.38
90 days	$639.00	$7.10
