BirdDog P100 Basic Streaming Kit w/ RS422 Remote PTZ Control

$228.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

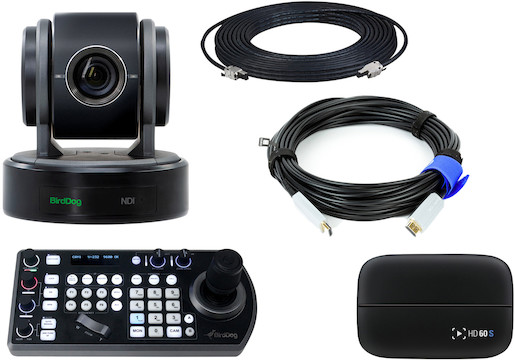

Includes

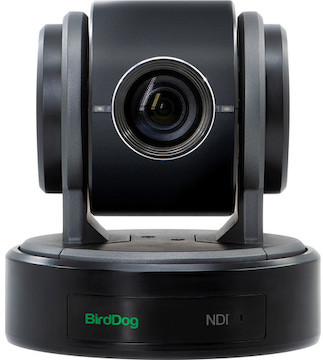

BirdDog Eyes P100 NDI PTZ Camera

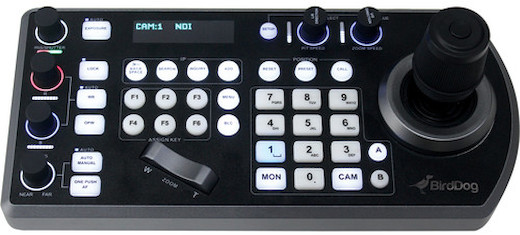

BirdDog PTZ Keyboard

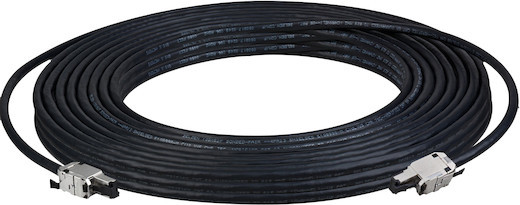

Belden 150ft Cat 6A Ethernet Cable

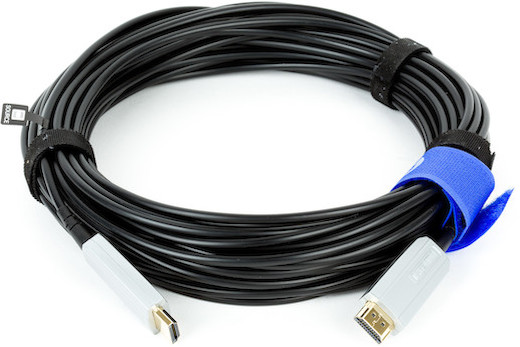

Monoprice 50ft Luxe Series Active HDMI Male-Male Cable

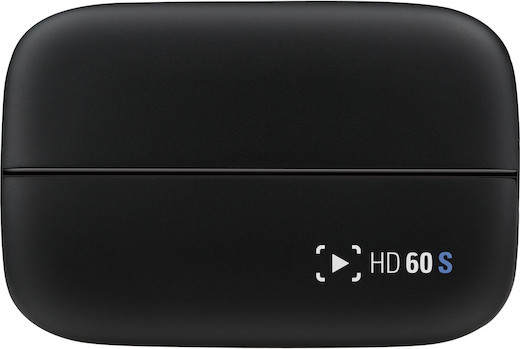

Elgato Game Capture HD60 S

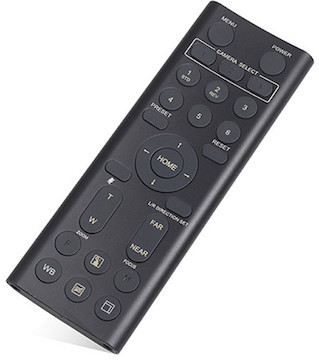

BirdDog IR Remote

Resources

P100 Camera User Guide

PTZ Keyboard User Guide

Elgato Software

Elgato Knowledgebase

BirdDog P100 Basic Streaming Kit w/ RS422 Remote PTZ Control

The BirdDog P100 Basic Streaming Kit w/ RS422 Remote PTZ Control is a one-click, end-to-PC, PTZ camera control and streaming solution that is both Windows and Mac compatible and requires no IP or advanced networking experience to get started. Perfect for capturing and streaming virtual events, our kit is centered around the popular BirdDog P100 PTZ camera and includes all the accessories and cables you’ll need to start streaming from a compatible computer while allowing you the freedom to choose your own tripod.

The BirdDog P100 Basic Streaming Kit w/ RS422 Remote PTZ Control includes:

You might also consider adding:

Support

Power Cables

Lighting

Q & A

How can I change the resolution and frame rate?

You can adjust the resolution and frame rate through the WebUI and the IR remote. The dial has been phased out in recent firmware updates and can no longer be used to make adjustments.

Are there any compatibility concerns with this package?

The latest BirdDog updates require that the PTZ Keyboard (v4.5.203-LTS) and P100 camera (v4.5.3787-LTS) be fully updated in order to work together. Both items in this kit will be updated before shipment.

Can I use this kit to capture my footage?

Yes! The Elgato Game Capture HD60 S allows you to capture footage directly to your computer’s hard drive.

Is this kit expandable to include more than one camera?

This kit is designed for a single camera and operator. If you are looking for a similar package with more than one camera, contact us

What are the system requirements for the HD60S?

Mac: macOS Sierra 10.12 or later, 4th generation quad‑core Intel Core i5 CPU (i5-4xxx or comparable), Dedicated GPU (AMD or nVIDIA), 4GB RAM
Windows: Windows 10 (64-bit), 4th generation quad‑core Intel Core i5 CPU (i5-4xxx or comparable), Intel HD, NVIDIA GeForce GTX 600 series or VCE 3.x compatible AMD graphics (or better), 4GB RAM
If you have any questions regarding your computer system’s compatibility with this kit, contact us and a tech will be happy to help you assess your setup.

Can I use an external monitor while streaming?

Yes! If you’d like a monitor for a client or talent view, you can use the P200’s SDI port to output to a monitor on set or you can use the Elgato’s HDMI output to loop to an operator’s monitor.

Will I need anything else?

Yes! To start streaming, you will need to source your own compatible mac or windows computer with the most current Elgato Game Capture software installed. For first time streamers, we also recommend setting up an account on the streaming platform of your choice in advance. Please note, the Elgato HD60 S is optimized for Youtube Live, Facebook Live, and Twitch!
In addition to a computer and software, you may want to consider adding a tripod and surge protectors to your order.

Specifications

Brand	BirdDog
Camcorder Type	PTZ
Camera Type	Camcorder

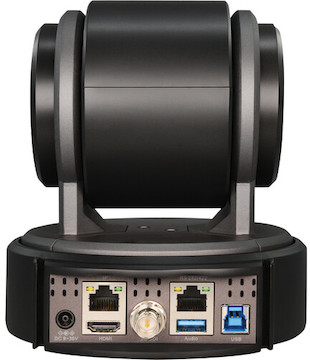

Inputs/Outputs	P100 Video Outputs NDI SDI RCA (composite) Output Formats 1080p 60/59.94/50/29.97/25 1080i 60/59.94/50 720p 60/59.94/50/29.97/25 Audio I/O 3.5mm stereo input 3.5mm stereo output Control Interface IP PTZ Control (auto configuring) Serial PTZ Control (RJ45) Serial Control Protocol (VISCA/Pelco D) Keyboard LAN: (1) RJ45 (with PoE) 100 Base-TX RS-232: (1) RJ45 RS-422: (2) RJ45
Item Type	Camera, Package, Monitoring, and PTZ Cameras
Lens	Focal Length 4.7 to 47mm Aperture f/1.6 to 3 Zoom 10x Optical Zoom 12x Digital Zoom
Monitoring Type	Streaming
Package Type	PTZ Video
Robotics	Pan Horizontal: ±350º Tilt Vertical: +90º to -15º Presets 128 positions
Sensor	1-Chip 1/2.86” CMOS

See All

Includes

BirdDog Eyes P100 NDI PTZ Camera
BirdDog PTZ Keyboard
Belden 150ft Cat 6A Ethernet Cable
Monoprice 50ft Luxe Series Active HDMI Male-Male Cable
Elgato Game Capture HD60 S
BirdDog IR Remote

Specifications

Brand	BirdDog
Camcorder Type	PTZ
Camera Type	Camcorder
Inputs/Outputs	P100 Video Outputs NDI SDI RCA (composite) Output Formats 1080p 60/59.94/50/29.97/25 1080i 60/59.94/50 720p 60/59.94/50/29.97/25 Audio I/O 3.5mm stereo input 3.5mm stereo output Control Interface IP PTZ Control (auto configuring) Serial PTZ Control (RJ45) Serial Control Protocol (VISCA/Pelco D) Keyboard LAN: (1) RJ45 (with PoE) 100 Base-TX RS-232: (1) RJ45 RS-422: (2) RJ45
Item Type	Camera, Package, Monitoring, and PTZ Cameras
Lens	Focal Length 4.7 to 47mm Aperture f/1.6 to 3 Zoom 10x Optical Zoom 12x Digital Zoom
Monitoring Type	Streaming
Package Type	PTZ Video
Robotics	Pan Horizontal: ±350º Tilt Vertical: +90º to -15º Presets 128 positions
Sensor	1-Chip 1/2.86” CMOS

See All

Resources

P100 Camera User Guide

PTZ Keyboard User Guide

Elgato Software

Elgato Knowledgebase
