BirdDog P240 3-Camera and Keyboard Kit

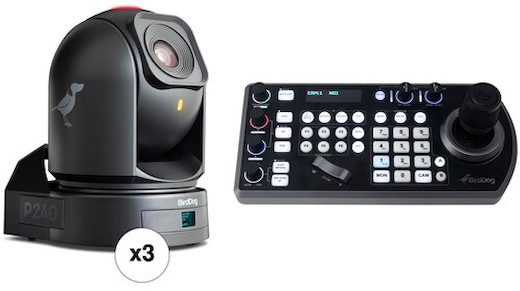

The BirdDog P240 3-Camera and Keyboard Kit consists of three BirdDog P240 40X NDI PTZ Cameras and a BirdDog PTZ Keyboard. Key features include:

40x optical zoom
Full NDI 5.5 support
Joystick for camera movement & rocker switch for zoom control
Control exposure, white balance, backlight, gain, shutter, focus, iris, shutter speed, & zoom

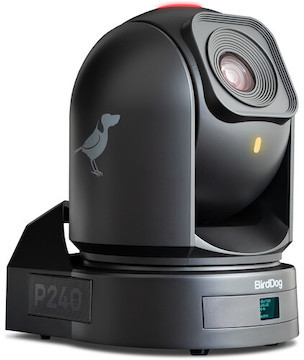

Comprehensive PTZ Camera Solution. The black BirdDog P240 40X NDI PTZ Cameras offers increased light sensitivity, 40x optical zoom, and an integrated ND filter to keep your images crisp and clear against the forces of sunlight. The cameras include free software tools, such as Central Lite to create NDI sources and drive your NDI streams to any BirdDog Studio NDI or Mini to decode NDI back to SDI or HDMI, Cam Control to allow easy access to settings, and Comms Lite for an audio intercom solution. Additionally included is FreeD, a protocol for sending PTZ positioning data to AR/VR systems including Unreal Engine, Brainstorm, Vizrt’s Viz Virtual Studio, and it’s all built right into the BirdUI.

Sony Exmor Sensor. A back-illuminated Sony Exmor 2.5" CMOS 8.5MP sensor allows the P240 to produce beautiful images with low noise sensitivity and other enhanced imaging characteristics.

Inputs & Outputs. Output options with this camera include NDI, HDMI, and 3G-SDI as well as balanced XLR audio via an optional breakout cable.

360° Mohawk Tally & NDI Genlock. The innovative Mohawk tally gives a full 360° view, so you’ll never be caught out wondering which camera you need to be talking to. Enable NDI Genlock to select an NDI source to be the timing master to provide more predictable timing in multi-camera environments.

NDI Video Scopes. The P240 can generate scopes to send out as NDI, NDI Proxy, or both. This allows for monitoring scopes on the NDI Proxy while sending a clean main NDI feed simultaneously. Choose from histogram, waveform, vectorscope, or RGB parade and the position on the NDI stream!

Tactile PTZ Control. The BirdDog PTZ Keyboard is a solution for moving PTZ camera control off of a screen and into your hands. You’ll get finer control and a faster workflow with a joystick and zoom rocker switch. The keyboard also has dedicated exposure, white balance, and focus knobs.

NDI & Much More. This BirdDog controller is compatible with cameras using NDI, NDI|HX, Visca over IP, RS-422, and RS-232 protocols. When using NDI, users can take advantage of audio intercom support using BirdDog Comms.

Power Trip. This keyboard can be powered via Power over Ethernet (PoE), the serial port, or with the included AC adapter.

Q & A

Does this rental include the remote control?

Yep! This rental includes three IR remotes, one for each camera.

How can I change the resolution and frame rate?

You can adjust the resolution and frame rate through the WebUI and the IR remote. The dial has been phased out in recent firmware updates and can no longer be used to make adjustments.

How do I use the BirdDog web remote?

All of our BirdDog cameras ship configured for DHCP, with the default web browser ID printed on the bottom of the camera so all you need to do is enter the web address in a browser window to get started. Once you access the web remote, you will need to enter the default password: birddog, one word, lowercase.
Please note that because we make every effort to ensure this camera ships in the simplest, default state, you may be subject to a camera ID recovery fee if you return the camera with a unique web ID.

Specifications

Brand	BirdDog
Camera	General Dimensions (W x H x D) 9.1 × 7.8 × 6.4″ Weight 5.280 lb Environmental Operating Temperature 14 to 104°F Operating Humidity 80% Power PoE Support PoE+ 802.3at Power I/O 1 x Barrel (12VDC) Input Power Consumption 22.5 W Interface Video I/O 1 x BNC (3G-SDI) Output 1 x HDMI Output Audio I/O 1 x LEMO 10-Pin Mic/Line (+48 V Phantom Power) Input/Output 1 × 1/8" / 3.5 mm TRS Stereo Input 1 × 1/8" / 3.5 mm TRS Stereo Output Other I/O 1 x NDI (NDI) Control/Video Input/Output 1 x RJ45 (RS-232) Input 1 x RJ45 (RS-422) Input 1 x USB-A (USB 2.0) Control Presets 128 via IP, RS-232, VISCA, Pelco-D Move Speed Pan: 0.05 to 100°/sec Tilt: 0.05 to 50°/sec Movement Range Pan: 175° Tilt: -30 to 90° Tally Light Yes Supported Control Protocols IP NDI Pelco-D RS-232 RS-422 VISCA Lens Focal Length 4.4 to 88.4mm Optical Zoom Ratio 40x Field of View Horizontal: 70.2 to 4.1° Maximum Aperture f/2 to 3.8 Exposure Control Shutter Type Electronic Rolling Shutter Shutter Speed 1 to 10,000 Seconds Signal-to-Noise Ratio 50 dB Minimum Illumination 0.4 Lux Flip / Mirror Support Image Flip, Mirror (Vertical) Imaging Sensor Type 1/2.5"-Type CMOS Sensor Sensor Resolution Effective: 8.5 Megapixel IR Cut Filter Yes Built-In ND Filter Mechanical Filter Wheel with Clear ND Filters Focus Control Autofocus Manual Focus
Control	Dimensions 10.9 × 5.2 × 3.9″ Power Input 12 VDC PoE Power over Visca Power over RS-232/RS-422 Inputs/Outputs LAN: (1) RJ45 (with PoE) 100 Base-TX RS-232: (1) RJ45 RS-422: (2) RJ45 Compatibility NDI NDI\|HX VISCA over IP RS-232 / RS-422: Baud Rate 2400 / 4800 / 9600 / 19200 / 38400
Item Type	Package and PTZ Cameras
Package Type	PTZ Video

Includes

Specifications

Brand	BirdDog
Camera	General Dimensions (W x H x D) 9.1 × 7.8 × 6.4″ Weight 5.280 lb Environmental Operating Temperature 14 to 104°F Operating Humidity 80% Power PoE Support PoE+ 802.3at Power I/O 1 x Barrel (12VDC) Input Power Consumption 22.5 W Interface Video I/O 1 x BNC (3G-SDI) Output 1 x HDMI Output Audio I/O 1 x LEMO 10-Pin Mic/Line (+48 V Phantom Power) Input/Output 1 × 1/8" / 3.5 mm TRS Stereo Input 1 × 1/8" / 3.5 mm TRS Stereo Output Other I/O 1 x NDI (NDI) Control/Video Input/Output 1 x RJ45 (RS-232) Input 1 x RJ45 (RS-422) Input 1 x USB-A (USB 2.0) Control Presets 128 via IP, RS-232, VISCA, Pelco-D Move Speed Pan: 0.05 to 100°/sec Tilt: 0.05 to 50°/sec Movement Range Pan: 175° Tilt: -30 to 90° Tally Light Yes Supported Control Protocols IP NDI Pelco-D RS-232 RS-422 VISCA Lens Focal Length 4.4 to 88.4mm Optical Zoom Ratio 40x Field of View Horizontal: 70.2 to 4.1° Maximum Aperture f/2 to 3.8 Exposure Control Shutter Type Electronic Rolling Shutter Shutter Speed 1 to 10,000 Seconds Signal-to-Noise Ratio 50 dB Minimum Illumination 0.4 Lux Flip / Mirror Support Image Flip, Mirror (Vertical) Imaging Sensor Type 1/2.5"-Type CMOS Sensor Sensor Resolution Effective: 8.5 Megapixel IR Cut Filter Yes Built-In ND Filter Mechanical Filter Wheel with Clear ND Filters Focus Control Autofocus Manual Focus
Control	Dimensions 10.9 × 5.2 × 3.9″ Power Input 12 VDC PoE Power over Visca Power over RS-232/RS-422 Inputs/Outputs LAN: (1) RJ45 (with PoE) 100 Base-TX RS-232: (1) RJ45 RS-422: (2) RJ45 Compatibility NDI NDI\|HX VISCA over IP RS-232 / RS-422: Baud Rate 2400 / 4800 / 9600 / 19200 / 38400
Item Type	Package and PTZ Cameras
Package Type	PTZ Video
