Blackmagic Design Micro Studio Camera 4K G2

$86.00

7 Day

Rental

Available 12/11/24

Renting this item will adjust your rental dates.

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

Blackmagic Design Micro Studio Camera 4K G2
Blackmagic 12V 3A Locking Barrel AC Adapter
(2) Blackmagic Micro BNC to BNC Female Cable 27.6"

Does Not Include

Canon LP-E6 Battery
Canon LC-E6 Charger

Resources

Manual

Blackmagic Design Micro Studio Camera 4K G2

The ultracompact Blackmagic Design Micro Studio Camera 4K G2 offers updates to the first gen Micro Studio Camera 4K, including 12G-SDI connections. Key features include:

12G-SDI and HDMI connections
13-stop synamic range
Canon LP-E6 battery slot
Micro Four Thirds (MFT) lens mount

Compact Live Production. Add this Blackmagic Design Micro Studio Camera 4K G2 to your production equipment and experience the world of ultracompact live production! As tiny as it seems, this camera functions as if it’s a full sized studio camera. Boasting a 4K image sensor, a popular MFT mount, and cinema color science, this petite baby gets you the same satisfactory imaging as if you were using something like the Blackmagic Design Studio Camera 4K Pro G2!

4K Capable. The BMD Micro Studio 4K stays ahead of the competition by coupling its compact size with an impressive UHD image sensor. The 12G-SDI output can feed a 10-bit 4:2:2 signal to any 4K-capable recorder. Please note that the camera itself isn’t capable of recording internally at all.

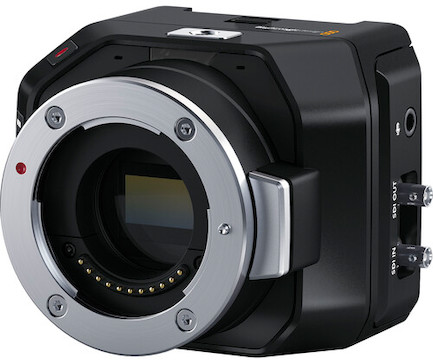

Active MFT Lens Mount. The MFT lens mount on the camera features support for active, electronic lens connections. This makes it compatible with a wide array of MFT glass.

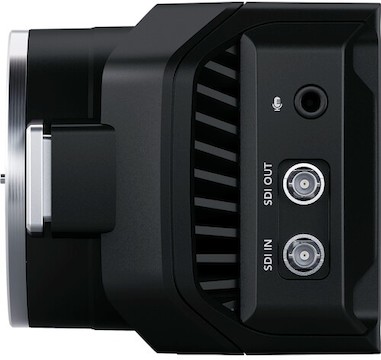

Broadcast Compatibility. The Micro comes equipped with a full-size HDMI output as well as mini-BNC connectors for 12G-SDI output and SDI camera-control input. Connect the program-feed output from the ATEM switcher to the camera’s SDI input and you can remotely control any setting in the camera; set focus, iris, and zoom on supported lenses; and even color correct.

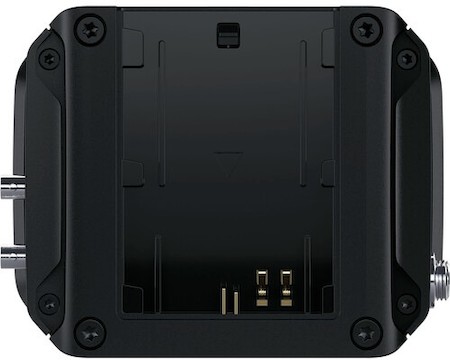

External Power and Additional Connections. Along with a 12V-30V DC power input for AC adapter use, the Micro Studio 4K offers a Canon LP-E6 receptacle slot for incredibly convenient power that doesn’t sacrifice mobility. Please note that this rental does not include power accessories outside of the AC adapter. In addition to a DC power input, you’ll find a USB-C expansion port, the aforementioned SDI and HDMI connections, and a 3.5mm audio input.

Sleek Design, Impeccable Features. The Micro Studio 4K G2 is designed to be a petite yet powerful addition to the production of television, broadcast news, sports, education, conference centers, and churches. With a built-in tally light to display recording status, optimally placed built-in microphones, and Blackmagic OS, this camera is destined to fit right in at whatever live production you have going on!

Q & A

Does this rental include batteries and a charger?

No, just an AC adapter. Please feel free to check out the Recommended section of your screen for LP-E6 compatible batteries and chargers.

Specifications

Brand	Blackmagic
Camera	Lens Mount Micro Four Thirds Built-In ND Filter No Built-In Microphone Type Stereo Broadcast System Compatibility NTSC, PAL
Camera Type	Camcorder
Display	None
Environmental	Operating Temperature 32 to 104°F Storage Temperature -4 to 113°F Operating Humidity 0 to 90%
General	Shoe Mount No Accessory Mounting Thread 4 × 1/4"-20 on Camera Body Tripod Mount No Dimensions (W x H x D) 3.3 × 2.6 × 2.74″ (Without Protrusions) Weight 10.58 oz
Imaging	Image Sensor 17.78 × 10 mm (Four Thirds) CMOS Sensor Resolution Not Specified by Manufacturer Gain 0 to 18 dB Signal-to-Noise Ratio 63 dB
Interfaces	CCU I/O No Video I/O 1 x HDMI 2.0 Output 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output Audio I/O 1 × 1/8" / 3.5 mm TRS Stereo Microphone Input Other I/O 2 x USB-C (USB 3.2 / 3.1 Gen 1) Control/Data/Video Input/Output
Item Type	Camera
Mount	Micro 4/3rds
Power	Power I/O 1 x Barrel (12VDC) Input Power Consumption >25 W
Recording	Recording Modes DNxHD/ProRes 3840 × 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 × 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps Raw Recording Blackmagic RAW 3840 × 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [26 to 190 Mb/s] Audio Recording Raw 2-Channel 24-Bit 48 kHz LPCM Audio
