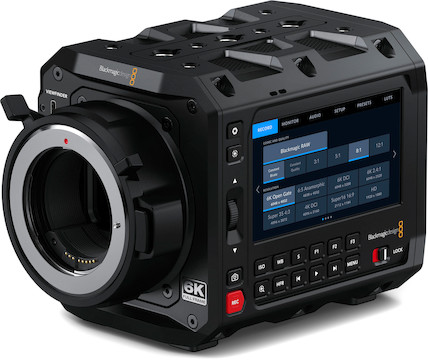

Blackmagic Design PYXIS 6K Standard Kit (EF)

Blackmagic Design PYXIS 6K Standard Kit (EF)

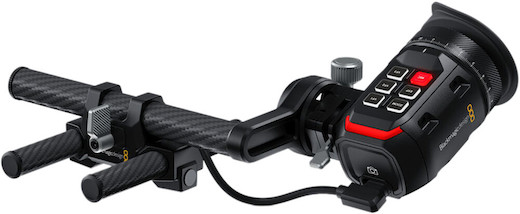

If you’re looking for a production bundle offering dedicated power, storage, and accessories for the Blackmagic PYXIS, you’re in the right place! This EF-mount package covers the basics, providing you with the compatible EVF and top handle, with a couple little extras. Feel free to click on any of the highlighted links below for additional information and specifications!

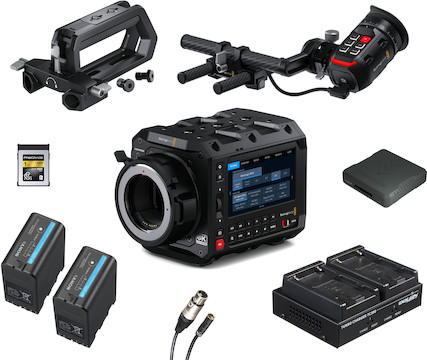

The Blackmagic Design PYXIS 6K Standard Kit (EF) includes:

Q & A

  • Is there a version of this kit that includes V-Mount/Gold Mount power and a camera cage?
  • Is there a version of this kit available with a different lens mount?
    • Yes! We have a PL and L-Mount version of this kit as well.

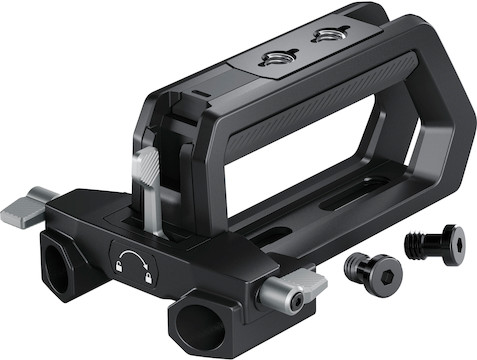

  • Does this top handle include rods?
    • No, 15mm rods are not included.

  • Can the screen flip out?
    • No, the screen on the Blackmagic Design PYXIS is not an articulating screen and is built into the camera itself.

  • Does this camera have internal ND filters?
    • No, the Blackmagic Design PYXIS does not have internal neutral density filters.

  • What type of mount does this camera have?
    • This Blackmagic Design PYXIS 6K comes equipped with a locking EF mount.

    • As helpful as it is to keep your lens locked in, sometimes you will need to loosen the black ring around the mount in order to attach your lens or remove the mount cap.

  • Specifications

    Brand

    Blackmagic

    Camera Type

    Camcorder

    General

    Dimensions (W x H x D)

    • 4.17 × 4.69 × 5.94″
    Weight
    • 3.3 lb.
    Accessory Mounts
    • 5x 1/4"-20 (bottom)
    • 5x 3/8"-16 (bottom)
    • 2x 1/4"-20 (body)
    • 1x 3/8"-16 (body)
    • 4x M4 (body)
    • No shoe mount
    Battery Type

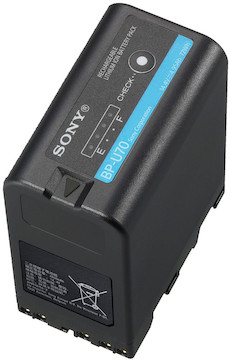

    • BP-U series

    Imaging

    Maximum Resolution

    • 6K (6048 × 4032)
    Sensor
    • Type: Full Frame, CMOS
    ISO
    • Dynamic Range: 13 Stops
    • Maximum ISO: 25,600 (expanded)
    • Base ISO: 400, 3200 (dual gain)
    Neutral Density Filters
    • None

    Inputs/Outputs

    Video I/O

    • 1x BNC (12G-SDI)
    Audio I/O
    • 1x 3.5mm TRRS headphone jack
    • 1x 3.5mm TRS stereo mic jack
    • 1x 3-pin mini-XLR mic/line (+48V phantom power)
    Power I/O
    • 12V DC input
    • BP-U battery port
    Other I/O
    • 2x USB-C
    • 1x BNC (reference/timecode)
    • 1x RJ45 (10 gigabit Ethernet)

    Item Type

    Camera

    Memory

    Memory Card Slot

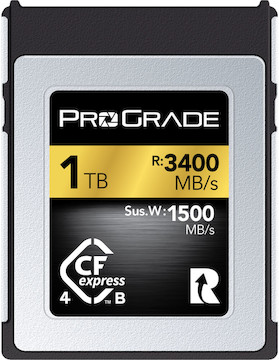

    • Dual CFexpress Type B slots
    Internal Memory
    • No

    Mfr. Model Number

    CINECAMCPYXD60LFEF

    See All

    Specifications

    Brand

    Blackmagic

    Camera Type

    Camcorder

    General

    Dimensions (W x H x D)

    • 4.17 × 4.69 × 5.94″
    Weight
    • 3.3 lb.
    Accessory Mounts
    • 5x 1/4"-20 (bottom)
    • 5x 3/8"-16 (bottom)
    • 2x 1/4"-20 (body)
    • 1x 3/8"-16 (body)
    • 4x M4 (body)
    • No shoe mount
    Battery Type
    • BP-U series

    Imaging

    Maximum Resolution

    • 6K (6048 × 4032)
    Sensor
    • Type: Full Frame, CMOS
    ISO
    • Dynamic Range: 13 Stops
    • Maximum ISO: 25,600 (expanded)
    • Base ISO: 400, 3200 (dual gain)
    Neutral Density Filters
    • None

    Inputs/Outputs

    Video I/O

    • 1x BNC (12G-SDI)
    Audio I/O
    • 1x 3.5mm TRRS headphone jack
    • 1x 3.5mm TRS stereo mic jack
    • 1x 3-pin mini-XLR mic/line (+48V phantom power)
    Power I/O
    • 12V DC input
    • BP-U battery port
    Other I/O
    • 2x USB-C
    • 1x BNC (reference/timecode)
    • 1x RJ45 (10 gigabit Ethernet)

    Item Type

    Camera

    Memory

    Memory Card Slot

    • Dual CFexpress Type B slots
    Internal Memory
    • No

    Mfr. Model Number

    CINECAMCPYXD60LFEF

    See All

    Reviews

    See Reviews

    Blackmagic Design PYXIS 6K Standard Kit (EF)

    $455.00
    /
