DJI Ronin 3-Axis Brushless Gimbal Stabilizer

While we no longer rent this product, we do carry the DJI Ronin 2 3-Axis Handheld Stabilizer. You may also find alternatives in the Recommended section on the left-hand side of this page.

Supports up to 16 lbs. of equipment
Underslung, Upright, and Briefcase shooting modes
Remote second-operator control

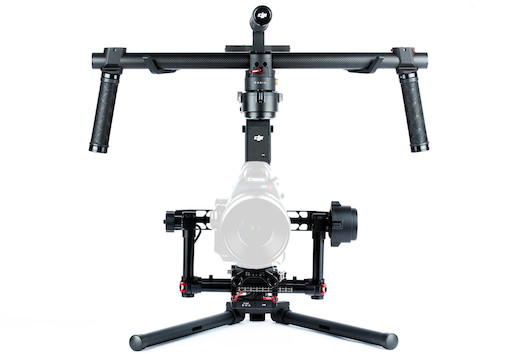

The DJI Ronin is a handheld three-axis gimbal stabilization system. Looking for an updated version of this gimbal? Check out the Ronin 2. Key features include:

16-lb. Weight Capacity. The Ronin offers the highest weight tolerance around for this stabilizer style, enabling the use of fully accessorized camera packages (as long as they fit).

Three Shooting Modes. This stabilizer comes programmed with three different shooting modes: Underslung, Upright, and Briefcase. Underslung is the standard operation mode for Ronin, with the camera hanging below the handlebars. Upright Mode allows the gimbal to be flipped over so the camera can be operated closer to eye level without straining. Briefcase mode allows the gimbal to be held to the side and close to the legs, much like a briefcase.

Optional Second-Operator Control. This rental includes a radio transmitter. This allows a second person to control the camera’s pan, roll, and tilt, while the main operator is free to focus on safely navigating through the shot.

Please note: it’s complicated. The DJI Ronin isn’t what you’d call a “turn-key” solution to camera stabilization. It requires a significant amount of training and practice to get good results, so you’ll want at least one full day of learning before using it on a shoot. Check the “Resources” section of this page for manuals and software. Here’s DJI’s setup video.

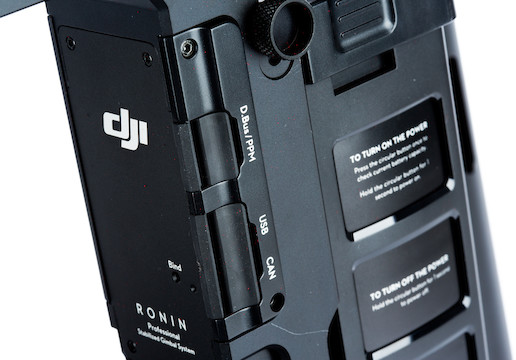

Power Issues. Although the DJI Ronin features USB and 12V P-Tap power outputs for powering accessories, it doesn’t actually do so very well. Powering accessories off of the Ronin leads to instability in the accessory and in the Ronin itself. If you’d like to use powered accessories on the Ronin, we recommend you add the appropriate batteries to your rig instead of trusting the Ronin’s power outputs.

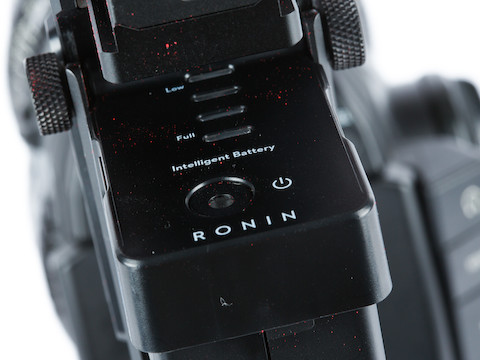

Battery Warnings. Batteries may be reported by the DJI assistant app as “not DJI Intelligent battery.” This warning does not affect the performance of the gimbal in any way, but feel free to reach out so we can send this battery upstate to a nice, big farm where it can run and be loved for the remainder of its days.

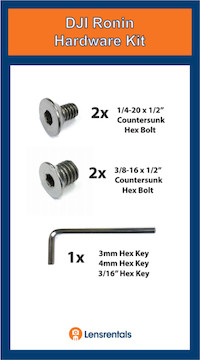

Faulty Plate Lock. We’ve found the Ronin’s camera-plate locking mechanism to be very unreliable. The preferred method for mounting/dismounting cameras is to leave the plate lock lever in the closed (locked) position at all times, and use the included allen key for loosening and tightening.

Poor Light-Weight Support. The Ronin has a difficult time balancing with camera/lens combos that weigh under four pounds. It’s possible, but can be challenging. It might even require adding more arbitrary weight to the camera platform. There’s also an issue with the way some lenses fit onto the camera being balanced. If you need help solving that problem, please contact us.

Q & A

Are there any issues with connecting to the mobile app?

It can be tough to get connected to the mobile app via Wi-Fi. The easiest way to get a stable connection is to connect it to a computer via Micro USB.

Is the Ronin easy to pick up and use?

The DJI Ronin isn’t what you’d call a “turn-key” solution to camera stabilization. It requires a significant amount of training and practice to get good results, so you’ll want at least one full day of learning before using it on a shoot. Check the “Resources” section of this page for manuals and software. Here’s DJI’s setup video.

Can the Ronin's D-tap ports power my camera and accessories?

The Ronin’s d-tap port cannot power a camera. While it can power accessories like a DJI Follow Focus or a Teradek, it’s not always entirely reliable. If you’d like to use powered accessories on the Ronin, we recommend having a backup solution on hand. The Switronix PowerBase 70 Battery Pack is a great option for this purpose.

Help! I’m in the middle of a shoot and the DJI app says the battery is “not a DJI Intelligent battery." What should I do?

Breathe! While the warning sounds scary, it does not affect the performance of the gimbal stabilizer in any way. If time allows, we’re happy to send you a replacement battery so you don’t have to clear the warning every time. Please contact us. support@lensrentals.com | 901-754-9100
“Intelligent” batteries are great and all, but they don’t provide much of a heads up. While we test every battery upon return, this warning generally pops up out of the blue as the battery ages. We see it fairly regularly and are constantly rotating our stock to minimize occurrence. If you do get the warning during your shoot, please let us know so we can be on the lookout upon its return.

What’s the DJI app’s password?

Try 123456. If that doesn’t work, you’ll need to connect the Ronin to a computer using the supplied USB cable and reset the password. You can download the DJI app for Windows/OSX here. In the app, click the large “Reset Password” button and then click “OK.”

Specifications

Brand	DJI
Camera Support Type	Stabilizer
Item Type	Stabilizer
Performance	Maximum Payload 16 lbs. Maximum Rotation Speed Pan axis: 90°/sec Tilt axis: 100°/sec Roll axis: 30°/sec Controlled Rotation Range Pan axis control: 360° Tilt axis control: Up 45° to Down 120° Roll axis control: ±25° Operation Modes Underslung Upright Briefcase
Physical	Dimensions (W x D x H) 620mm(W) x 280-380mm (D) x 500mm(H) Weight(with handlebar) 9.26 lbs.
Power Supply	Battery Type: DJI Smart Battery for Ronin Output: 3400 mAh-14.8 V Compartment: Dual/hot-swappable, detachable Charger Type: IN2Ch Dual Charger Compartment: Quad Dual-Battery Operating Time Approximately 4 hours Accessory Powering USB 500mW x 1, DJI Lightbridge x 1 P-Tap: 12V regulated P-Tap x 2
