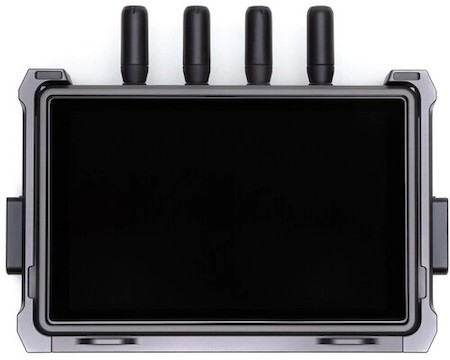

DJI Transmission Combo

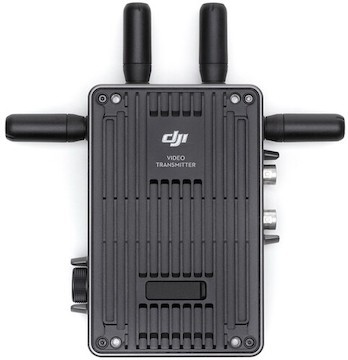

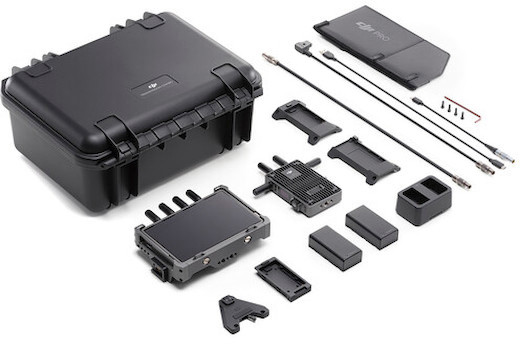

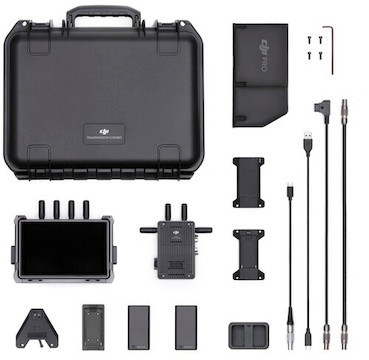

The DJI Transmission Combo transmits high-definition video over 3 miles from your DJI drone or gimbal gear. The optional expansion plate allows you to send the signal from the High-Bright Monitor to another HDMI or SDI device. This kit includes the following products:

Q & A

Does this rental include any HDMI or SDI cables?

No, but you can rent some here.

Do I need additional gear to receive a signal from the DJI High-Bright Remote Monitor?

Yes, you’ll need the DJI Remote Monitor Expansion Plate – SDI/HDMI/DC-In to receive a signal from the DJI High-Bright Remote Monitor.

Does this rental include a gimbal or drone?

Nah, just the transmission combo. If you need to rent out a drone or gimbals, check out the recommended section on your screen.

Specifications

Brand	DJI
Display	Panel Type Receiver: LCD Display Size 7.0" Display Size Receiver: 7.0" Resolution Receiver: 1920 × 1200 Aspect Ratio Receiver: 16:10 Touchscreen Yes Image Controls False Color Focus Peaking Screen Markers Waveform Zebra Video I/O Transmitter: 1x HDMI 1.4 Input Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 1x HDMI 2.0 Input Receiver: 1x HDMI 1.4 Output (when used with the DJI Remote Monitor Expansion Plate SDI/HDMI/DC-in) Receiver: 1x BNC (3G-SDI) Output (when used with the DJI Remote Monitor Expansion Plate SDI/HDMI/DC-in) Embedded Audio HDMI/SDI Audio I/O Receiver: 1x 1/8" / 3.5 mm Headphone Output Power Transmitter/Receiver: 1x Barrel Input Other I/O Receiver: 1x USB-C 2.0 Input Media/Memory Card Slot Single Slot: microSD/microSDHC Encryption 256-Bit AES
Environmental	IP Rating None Certifications CE, FCC *as per Manufacturer Operating Temperature 22 to 77°F
Format Support	Video Format HDMI/SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 Audio Format 16-Bit 48 kHz PCM Audio Wireless Video Compression Compressed
General	Dimensions Transmitter: 5 × 3.4 × 1″ / 127 × 87 × 26 mm Receiver: 8.4 × 5.3 × 2″ / 213 × 135 × 51 mm Weight Transmitter: 12.3 oz / 350 g, Excluding Antenna Receiver: 1.6 lb / 727 g, Excluding Antenna
Item Type	Monitoring
Monitoring Type	Wireless
Mounting	Cold Shoe
Power	DC Input Power 6 to 18 VDC Battery Type Transmitter/Receiver: 1x L-Series (Interchangeable Mount) Power Consumption Transmitter/Receiver: 11 W
Wireless	Wireless Range 3.7 Miles (Line-of-Sight) # of Channels 23 Channel Bandwidth 40 MHz Frequency Range Non-DFS Frequencies 2.4 to 2.48 GHz 5.15 to 5.25 GHz 5.72 to 5.85 GHz DFS Frequencies 5.25 to 5.35 GHz 5.47 to 5.6 GHz 5.65 to 5.72 GHz Latency 68 ms RF Power < 33 dBm Wi-Fi Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)

See All

Includes

Specifications

Brand	DJI
Display	Panel Type Receiver: LCD Display Size 7.0" Display Size Receiver: 7.0" Resolution Receiver: 1920 × 1200 Aspect Ratio Receiver: 16:10 Touchscreen Yes Image Controls False Color Focus Peaking Screen Markers Waveform Zebra Video I/O Transmitter: 1x HDMI 1.4 Input Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 1x HDMI 2.0 Input Receiver: 1x HDMI 1.4 Output (when used with the DJI Remote Monitor Expansion Plate SDI/HDMI/DC-in) Receiver: 1x BNC (3G-SDI) Output (when used with the DJI Remote Monitor Expansion Plate SDI/HDMI/DC-in) Embedded Audio HDMI/SDI Audio I/O Receiver: 1x 1/8" / 3.5 mm Headphone Output Power Transmitter/Receiver: 1x Barrel Input Other I/O Receiver: 1x USB-C 2.0 Input Media/Memory Card Slot Single Slot: microSD/microSDHC Encryption 256-Bit AES
Environmental	IP Rating None Certifications CE, FCC *as per Manufacturer Operating Temperature 22 to 77°F
Format Support	Video Format HDMI/SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 Audio Format 16-Bit 48 kHz PCM Audio Wireless Video Compression Compressed
General	Dimensions Transmitter: 5 × 3.4 × 1″ / 127 × 87 × 26 mm Receiver: 8.4 × 5.3 × 2″ / 213 × 135 × 51 mm Weight Transmitter: 12.3 oz / 350 g, Excluding Antenna Receiver: 1.6 lb / 727 g, Excluding Antenna
Item Type	Monitoring
Monitoring Type	Wireless
Mounting	Cold Shoe
Power	DC Input Power 6 to 18 VDC Battery Type Transmitter/Receiver: 1x L-Series (Interchangeable Mount) Power Consumption Transmitter/Receiver: 11 W
Wireless	Wireless Range 3.7 Miles (Line-of-Sight) # of Channels 23 Channel Bandwidth 40 MHz Frequency Range Non-DFS Frequencies 2.4 to 2.48 GHz 5.15 to 5.25 GHz 5.72 to 5.85 GHz DFS Frequencies 5.25 to 5.35 GHz 5.47 to 5.6 GHz 5.65 to 5.72 GHz Latency 68 ms RF Power < 33 dBm Wi-Fi Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
