Hollyland Mars M1 5.5" Wireless Transceiver Monitor

The Hollyland Mars M1 5.5" Wireless Transceiver Monitor lets you transmit, receive, and monitor high-quality wireless video from up to 450 feet away with an ultra-low 0.08s latency. Key features include:

Transmit and receive wireless UHD 4K30p up to 450 feet
High-resolution 5.5-inch touchscreen display
Compatible with Mars 300 Pro, 400S Pro, and 4K models
Battery plates and batteries not included with this rental

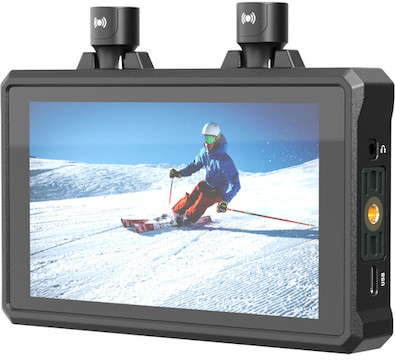

Large Touchscreen Display. The Hollyland Mars M1 5.5" Wireless Transceiver Monitor features a 5.5-inch touchscreen display with sharp resolution and 1000 cd/m² brightness, making it great for follow-focus and directors’-monitoring applications. The touchscreen supports the Rec. 709 color gamut for pro-grade color rendition, and there are five selectable 3D LUT presets for transferring colors to the monitor. You can use the touchscreen to toggle between transmitter and receiver modes.

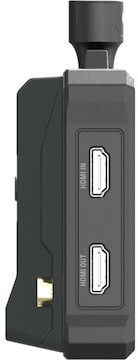

Input and Output. This monitor accepts video via HDMI and 3G-SDI. An HDMI loop-through connector allows passthrough of transmitted video to monitors and secondary wireless devices, and there’s a 3.5mm headphone jack.

Wireless Transmission and Reception. The Mars M1 has a 450-foot maximum wireless transmission range with a mere 0.08s latency, and lets you wirelessly transmit and receive lossless video up to 4K30p for expanded compatibility and connectivity. The SDI input gives you expanded frame-rate flexibility for broadcast and production standards and compatibility from production to post. One transmitter can work with up to two receivers or four devices running the Hollyview app.

Compatibility. In addition to other Mars M1 units, this monitor can transmit to and receive from all Mars 300 Pro, Mars 400S Pro, and Mars 4K models.

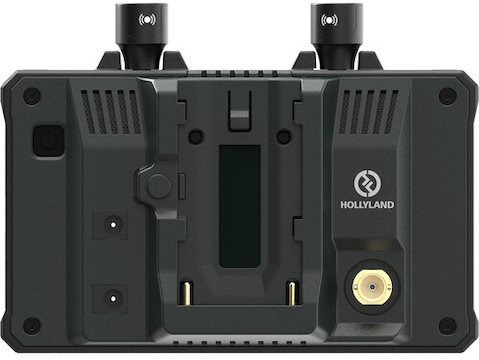

Batteries Not Included. The Mars M1 is compatible with Sony NP-F L-type batteries, but this rental doesn’t include batteries or a battery plate. We also have several compatible batteries available as separate rental items here. Need to power off of a brick battery? We recommend renting the SmallHD D-Tap to Sony L-Series Dummy Battery Cable. This rental does include one D-Tap to 2-pin LEMO cable.

App Monitoring. You can use the Hollyview app for Android and iOS to monitor your transmissions on a tablet or smartphone. It also lets you transmit to apps and receivers, and to receive from compatible transmitters in these configurations:

M1 TX to 2x M1 RX
M1 to M1 RX + 2x apps
M1 to 4x apps
M1 TX to 2x Mars 400S or Mars 4K receivers
Mars 400S Pro or Mars 4K transmitter to M1 + 2x apps

Q & A

Does this rental include batteries?

No, this rental doesn’t include a battery or charger, but we offer several compatible batteries as separate rental products here. You can also see options under Recommended on the left-hand side of this page.
Need to power off of a brick battery? We recommend renting the SmallHD D-Tap to Sony L-Series Dummy Battery Cable.
This rental does include one D-Tap to 2-pin LEMO cable.

How much life will the Mars M1 get out of an NP-F battery?

According to Hollyland, you’ll get approximately 4 hours out of an NP-F 970 battery, around 2.5 hours out of an NP-F 750 battery, and roughly 1.2 hours out of an NP-F 550 battery.

Does this monitor really work at up to 450 feet?

The M1 is rated to transmit a signal, line-of-sight, without environmental interference, up to 450 feet away. This is factory data and doesn’t reflect most real-life scenarios.
Even with line of sight, it’s unlikely that most people will be shooting in an environment without interference. You should always plan your wireless needs conservatively.

How do I use the Hollyview app to connect to the Mars M1?

For information about connecting the Hollyview app to the Mars M1, please click here.

Which devices can I pair to the Mars M1, and how do I pair them?

The Mars M1 can pair with all Mars 300 Pro, Mars 400S Pro, and Mars 4K models.
For pairing instructions, please click here.

Specifications

Brand	Hollyland
Display	Panel Type LCD Display Size 5.5" Aspect Ratio 16:9 Touchscreen Yes Image Controls Focus Peaking, Waveform
Environmental	IP Rating None Certifications FCC, as per manufacturer
Format Support	HDMI Video Format UHD 4K: 30 1080p: 60/30/24 SDI Video Format 1080p: 60/59.94/30/29.97/24/23.98 Timecode Support Yes
General	Mounting 2x 1/4"-20 Female Material Plastic Weight 0.8 lb.
Inputs/Outputs	Antenna Ports 2x RP-SMA Male Video I/O 1x HDMI Input 1x BNC (3G-SDI) Input 1x HDMI Loop Output Embedded Audio HDMI/SDI Audio I/O 1x 1/8" / 3.5mm Headphone Output Power I/O 1x Barrel Input 1x Barrel Output Other I/O 1x USB-C Input SIM Card Slots None Encryption None
Item Type	Monitoring and Production Monitors
Mfr. Model Number	MARS M1
Monitoring Type	Monitor
Power	DC Input Power 7 to 16 VDC Battery Type 1x L-Series
Wireless	Wireless Range 450’ (Line-of-Sight) Frequency Range US: 5 GHz Wi-Fi Yes
