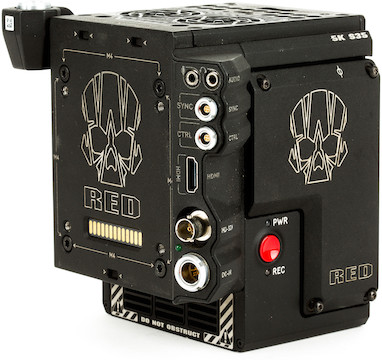

RED DSMC2 GEMINI 5K S35 Brain

$595.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

RED DSMC2 GEMINI Brain w/integrated media bay
AC Power Adapter (DSMC) w/power cable

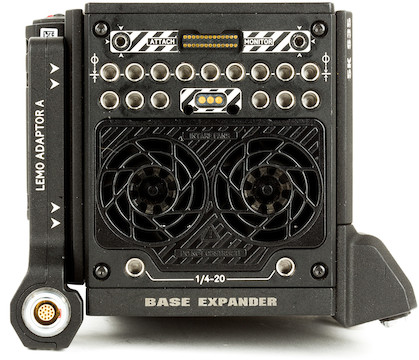

DSMC2 Base Expander
DSMC2 Lemo A Adapter
DSMC2 Standard OLPF (installed)

Resources

Gemini Operation Guide

RED Tools

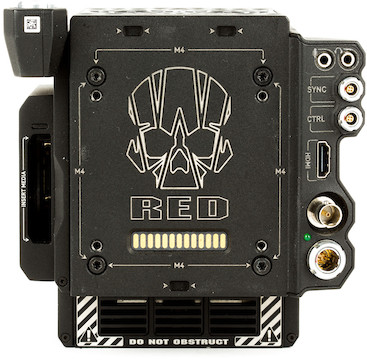

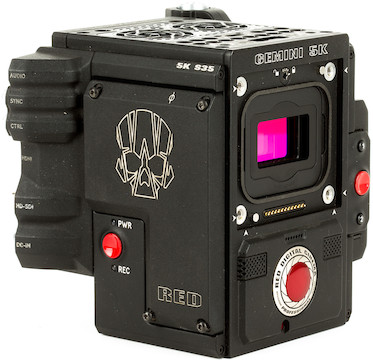

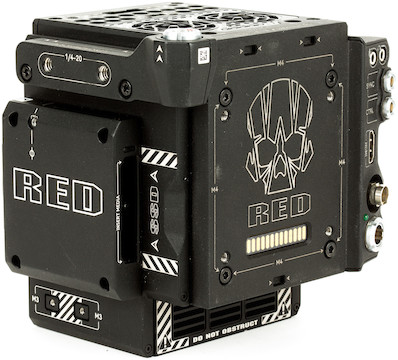

RED DSMC2 GEMINI 5K S35 Brain

The RED DSMC2 GEMINI 5K S35 Brain is a cinema-quality, modular camera brain featuring a 5K, Super 35, dual-ISO sensor for improved sensitivity in low-light conditions. This version is housed in a new unified DSMC2 brain. Key features include:

5K, Super 35, dual-ISO, CMOS sensor
Frame rates up tp to 96fps at 5K & 300fps at 2K
Full-sensor 4K ProRes & DNx
Fully compatible with RED DSMC2 components

What’s New? RED cites “better data rates and REDCODE settings” in the DSMC2 Gemini, but in practice, this does not change options for resolution, frame rate, or REDCODE compression from the previous Epic-W Gemini 5K S35 brain. Barring future firmware that further distinguishes the two, this is a change in name only.

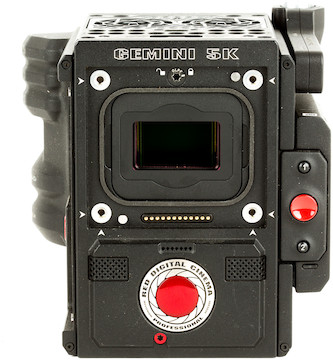

New 5K, Super 35 CMOS Sensor. The RED DSMC2 GEMINI 5K S35 Brain introduces a new dual-sensitivity sensor capable of recording high frame rate footage in REDCODE RAW at up to 96fps with a reported 16.5 stops of dynamic range. Cropping the sensor to 2K allows for video frame rates to be extended to 300fps. The sensor measures 35.61mm diagonally and renders 15.4 megapixels of resolution for a slightly wider field-of-view when compared to previous Helium and Dragon sensors.

Dual ISO Sensitivity. RED joins Panasonic in offering a sensor with the ability to operate in two different sensitivity modes. Use the standard ISO 800 mode to preserve every bit of detail in brightly lit scenarios, or switch to low-light mode to render less noise and more shadow detail in exchange for a slight clipping of highlights at ISO 3200.

High Data Rates. The DSMC2 GEMINI can handle 300 MB/s transfer rates, which allows you to record REDCODE RAW files at the highest quality while also recording ProRes and DNx proxy files in 422 HQ, 422, and 422 LT at 4K resolutions. 4K ProRes and DNx files maintain full sensor readout with no cropping.

Greater Versatility. The new DSMC2 unified brains feature the DSMC2 Interchangeable OLPF system. This means that you can optimize your footage for your environment by swapping out the optical low pass filter. We send the DSMC2 Standard OLPF installed for balanced shooting, but we also rent the Skin Tone-Highlight and Low-Light Optimized OLPFs as add-ons.

Semi-Backwards Compatible. A fully redesigned brain also means support for some components/accessories has been dropped. Any RED component labeled DSMC2 is fully compatible, and we include the DSMC2 Lemo A Adapter to retain compatibility with original DSMC Touch LCD monitors.

Additional Items Required. This rental only includes the brain with an integrated media bay. At a minimum, you’ll need the following additional items to operate this camera:

RED DSMC Canon, Nikon, or PL lens mount (see Recommended on the left-hand side of this page for a complete list)
RED DSMC2 Sidekick or DSMC2 Touch LCD (see Recommended on the left-hand side of this page for a complete list)
RED Mini-Mag SSDs
RED Mini-Mag Station

Q & A

Will this work with any DSMC3 accessories?

No. DSMC2 cameras and accessories will not work with any DSMC3 cameras or accessories.

Are there any known power compatibility issues with this brain?

Wooden Cable-less battery plates used with DSMC2 brains running firmware version 7.1 or newer require a firmware update to the plate before it can be recognized as a compatible module by the camera.
We’ve updated our copies in-house so if you rent a DSMC2 brain and cable-less plate from us, you’re all set! If you source a cable-less plate from somewhere else, you can go here for instructions on how to update the plate yourself.

What do I need to operate this camera?

At minimum, you’ll need these items to operate this camera: a RED DSMC Lens Mount; a RED Mini-Mag SSD; a RED Mini-Mag Station; and a menu-interface solution such as the RED DSMC2 Sidekick (external monitor required for live view), a RED Touch LCD, or a DSMC2 Touch LCD.

Does this rental include a lens mount?

This rental does not include a lens mount. Links to available lens mounts can be found under the “Recommended” tab on the left side of this page or by searching here.

Specifications

Brand	RED
Camcorder Type	Cinema
Camera Type	Camcorder
Imaging	Maximum Resolution 5120 × 3000 Sensor Type: Super 35, CMOS Size: 30.72 × 18.00 mm (35.61mm diagonal) Color Filter: Bayer Shutter Type: Rolling Crop Factor Approximately x 1.22 ISO Dynamic Range: 16.5 Stops Sensitivity: 800 – 3200 Base ISO: 800 and 3200

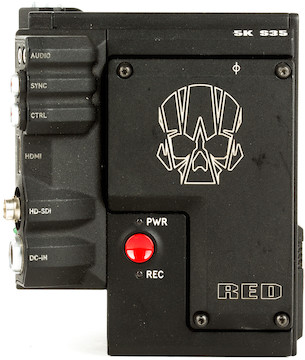

Inputs/Outputs	Audio Inputs 3.5mm (1/8") stereo mini-jack Audio Output 3.5mm (1/8") stereo mini-jack Video Out HDMI Type-A BNC 3G-SDI Additional Inputs/Outputs Sync: 1 × 4-pin 00B LEMO socket Control: 1 × 4-pin 00B LEMO socket DC In: 6-pin 1B LEMO socket
Item Type	Camera and Cinema Cameras

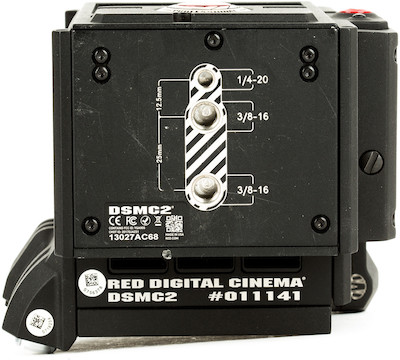

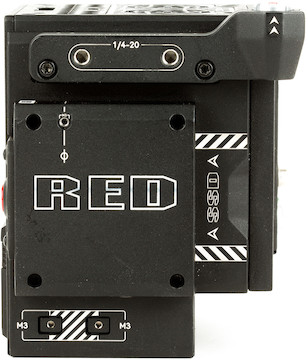

Physical	Dimensions (W x H x D) 4.57 × 4.76 × 1.50″ Weight 7.16 oz Accessory Mounts Tripod Base: ¼-20 and ⅜-16 Additional: M3 and ¼-20
Recommended For	Premium Cine and Premium Cine
Recording	Formats Video: REDCODE RAW, ProRes, DNx Audio: 2-Channel 24-Bit 48.0 kHz Modes REDCODE RAW: 5120 × 3000 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60 fps ProRes422HQ 4:2:2: 4096 × 2160 at 23.98, 24, 25, 29.97 fps ProRes422 4:2:2: 4096 × 2160 at 24, 25, 29.97 fps, 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps ProRes422 4:2:2: 4096 × 2160 at 24, 25, 29.97 fps, 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps ProRes422HQ 4:2:2: 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps DNxHR 4:2:2 12-Bit: 4096 × 2160 at 23.98, 24, 25, 29.97 fps, 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps DNxHR 4:2:2 8-Bit: 4096 × 2160 at 23.98, 24, 25, 29.97 fps DNxHD 4:4:4 10-Bit: 1920 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps DNxHD 4:2:2 10-Bit: 1920 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps DNxHD 4:2:2 8-Bit: 1920 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps Media Mini-Mag

See All

Includes

RED DSMC2 GEMINI Brain w/integrated media bay
AC Power Adapter (DSMC) w/power cable
DSMC2 Base Expander
DSMC2 Lemo A Adapter
DSMC2 Standard OLPF (installed)

Specifications

Brand	RED
Camcorder Type	Cinema
Camera Type	Camcorder
Imaging	Maximum Resolution 5120 × 3000 Sensor Type: Super 35, CMOS Size: 30.72 × 18.00 mm (35.61mm diagonal) Color Filter: Bayer Shutter Type: Rolling Crop Factor Approximately x 1.22 ISO Dynamic Range: 16.5 Stops Sensitivity: 800 – 3200 Base ISO: 800 and 3200
Inputs/Outputs	Audio Inputs 3.5mm (1/8") stereo mini-jack Audio Output 3.5mm (1/8") stereo mini-jack Video Out HDMI Type-A BNC 3G-SDI Additional Inputs/Outputs Sync: 1 × 4-pin 00B LEMO socket Control: 1 × 4-pin 00B LEMO socket DC In: 6-pin 1B LEMO socket
Item Type	Camera and Cinema Cameras
Physical	Dimensions (W x H x D) 4.57 × 4.76 × 1.50″ Weight 7.16 oz Accessory Mounts Tripod Base: ¼-20 and ⅜-16 Additional: M3 and ¼-20
Recommended For	Premium Cine and Premium Cine
Recording	Formats Video: REDCODE RAW, ProRes, DNx Audio: 2-Channel 24-Bit 48.0 kHz Modes REDCODE RAW: 5120 × 3000 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60 fps ProRes422HQ 4:2:2: 4096 × 2160 at 23.98, 24, 25, 29.97 fps ProRes422 4:2:2: 4096 × 2160 at 24, 25, 29.97 fps, 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps ProRes422 4:2:2: 4096 × 2160 at 24, 25, 29.97 fps, 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps ProRes422HQ 4:2:2: 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps DNxHR 4:2:2 12-Bit: 4096 × 2160 at 23.98, 24, 25, 29.97 fps, 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps DNxHR 4:2:2 8-Bit: 4096 × 2160 at 23.98, 24, 25, 29.97 fps DNxHD 4:4:4 10-Bit: 1920 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps DNxHD 4:2:2 10-Bit: 1920 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps DNxHD 4:2:2 8-Bit: 1920 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps Media Mini-Mag

See All

Resources

Gemini Operation Guide

RED Tools

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$63.00	$417.00	$480.00	$160.00
4 days	$68.00	$446.00	$514.00	$128.50
7 days	$90.00	$595.00	$685.00	$97.86
10 days	$122.00	$803.00	$925.00	$92.50
14 days	$158.00	$1041.00	$1199.00	$85.64
21 days	$212.00	$1398.00	$1610.00	$76.67
30 days	$266.00	$1755.00	$2021.00	$67.37
45 days	$347.00	$2291.00	$2638.00	$58.62
60 days	$405.00	$2678.00	$3083.00	$51.38
90 days	$522.00	$3451.00	$3973.00	$44.14

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$42.00	$417.00	$459.00	$153.00
4 days	$45.00	$446.00	$491.00	$122.75
7 days	$60.00	$595.00	$655.00	$93.57
10 days	$81.00	$803.00	$884.00	$88.40
14 days	$105.00	$1041.00	$1146.00	$81.86
21 days	$141.00	$1398.00	$1539.00	$73.29
30 days	$177.00	$1755.00	$1932.00	$64.40
45 days	$231.00	$2291.00	$2522.00	$56.04
60 days	$270.00	$2678.00	$2948.00	$49.13
90 days	$348.00	$3451.00	$3799.00	$42.21

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$417.00	$139.00
4 days	$446.00	$111.50
7 days	$595.00	$85.00
10 days	$803.00	$80.30
14 days	$1041.00	$74.36
21 days	$1398.00	$66.57
30 days	$1755.00	$58.50
45 days	$2291.00	$50.91
60 days	$2678.00	$44.63
90 days	$3451.00	$38.34
