RED SCARLET-W Premium V-Mount Kit

$746.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

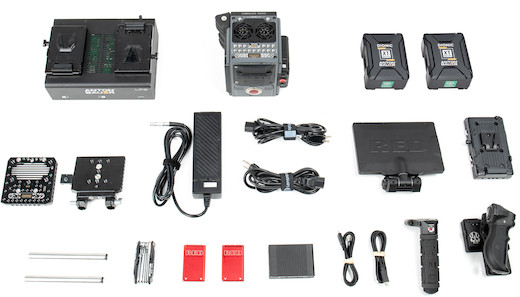

Includes

RED SCARLET-W Brain
RED DSMC2 Touch 7" LCD
Wooden Cable-less V-Mount Plate
Anton Bauer VM2 Dual V-Mount Battery Charger
Anton Bauer Dionic XT90 V-Mount Battery (2x)
RED Mini-Mag SSD 480GB (2x)
RED Station RED Mini-Mag USB 3.1
RED DSMC2 Side Handle
RED DSMC2 Top Handle
Wooden Camera Easy Riser Baseplate for RED DSMC2
Wooden Camera Pass-Through Top Plate for RED DSMC2
RED Sidewinder Multitool

Resources

Scarlet-W Operation Guide

RED SCARLET-W Premium V-Mount Kit

Upgrade your RED experience with the RED SCARLET-W Premium V-Mount Kit! This kit is centered around the RED SCARLET-W and offers the best of RED DSMC2 accessories in a one-click kit solution that still allows you the freedom to choose your own lens mount and lenses. Click on any of the package items below for more information.

The RED SCARLET-W PremiumV-Mount Kit includes:

Please note, this rental does not include a mount but the following are available as separate rental items:

DSMC EF Mount

DSMC PL Mount

DSMC Nikon Mount

DSMC AL Nikon Mount

Q & A

Is this kit available with Gold Mount batteries?

It is! You can find a Gold Mount version here.

Does this rental include a lens mount?

To give customers the freedom to choose their own lens system, we do not include a lens mount with this kit.
Lens mounts, however, can be rented in addition to this kit. Links to available lens mount options can be found under the “Recommended” tab on the left side of this page or in the bottom of the description above.

Specifications

Audio	Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz, Optional 2 additional channels with DSMC2 expander module, uncompressed, 24-bit 48 kHz
Brand	RED
Camcorder Type	Cinema
Camera Type	Camcorder
DC Input	Proprietary Connector
Data Rates	Up to 170 MB/s using RED MINI-MAG
Dynamic Range	16.5+ stops
Inputs/Outputs	Video Outputs HD-SDI Output BNC (10-bit) HDMI Output Type A
Item Type	Camera and Package
Maximum Frame Rates	Full Format (1.9:1): 5K (5120 × 2700): 50 fps 4K (4096 × 2160): 120 fps 3K (3072 × 1620): 150 fps 2K (2048 × 1080): 240 fps Scope (2.4:1): 5K (5120 × 2160): 60 fps 4K (4096 × 1782): 150 fps 3K (3072 × 1296): 200 fps 2K (2048 × 864): 300 fps *REDCODE values and max frame rates may vary based on selected acquisition format, aspect ratio, project time base, and SSD.
Memory Type	Red Mini-Mag SSD
Package Type	RED Video
Recording Formats	REDCODE RAW (available compression ratios): 4:1-22:1 REDCODE for 5K Full Format (5120 × 2700) at 24 fps 7:1-22:1 REDCODE for 6K Full Format (5120 × 2700) at 50 fps 3:1-22:1 REDCODE for 4K Full Format (4096 × 2160) at 24 fps 6:1-22:1 REDCODE for 4K Full Format (4096 × 2160) at 60 fps Compression ratios and resolutions are limited to the recording data rate limitations. Apple ProRes:* 4096 × 2160: ProRes 422 LT/422/422 HQ up to 29.97 fps 2048 × 1080: ProRes 422 LT/422/422 HQ/4444/4444 XQ up to 120 fps AVID DNx: 4096 × 2160: DNxHR 8-bit SQ/LB up to 29.97 fps 1920 × 1080: DNxHD 8-bit HQ/SQ/LB up to 60 fps
Recording Time	5K (5120 × 2700) at 24 fps and 11:1 REDCODE: Approximately 0.34GB/Min 5K (5120 × 2700) at 48 fps and 14:1 REDCODE: Approximately 0.21GB/Min 4.5K 2.4:1 (4608 × 1944) at 120 fps and 15:1 REDCODE: Approximately 0.14GB/Min
Resolutions	5K (5120 X 2700) 4.5K (4608×2160) 4K (4096 × 2160) 3K (3072 × 2160) 2K (2048 × 1080)
Sensor Size	25.6 mm x 13.5 mm (Diagonal: 28.9 mm)
Sensor Type	RED DRAGON 13.8 MP Super 35mm CMOS
Weight	3.5 lbs (BRAIN with Integrated Media Bay)

See All

Includes

RED SCARLET-W Brain
RED DSMC2 Touch 7" LCD
Wooden Cable-less V-Mount Plate
Anton Bauer VM2 Dual V-Mount Battery Charger
Anton Bauer Dionic XT90 V-Mount Battery (2x)
RED Mini-Mag SSD 480GB (2x)
RED Station RED Mini-Mag USB 3.1
RED DSMC2 Side Handle
RED DSMC2 Top Handle
Wooden Camera Easy Riser Baseplate for RED DSMC2
Wooden Camera Pass-Through Top Plate for RED DSMC2
RED Sidewinder Multitool

Specifications

Audio	Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz, Optional 2 additional channels with DSMC2 expander module, uncompressed, 24-bit 48 kHz
Brand	RED
Camcorder Type	Cinema
Camera Type	Camcorder
DC Input	Proprietary Connector
Data Rates	Up to 170 MB/s using RED MINI-MAG
Dynamic Range	16.5+ stops
Inputs/Outputs	Video Outputs HD-SDI Output BNC (10-bit) HDMI Output Type A
Item Type	Camera and Package
Maximum Frame Rates	Full Format (1.9:1): 5K (5120 × 2700): 50 fps 4K (4096 × 2160): 120 fps 3K (3072 × 1620): 150 fps 2K (2048 × 1080): 240 fps Scope (2.4:1): 5K (5120 × 2160): 60 fps 4K (4096 × 1782): 150 fps 3K (3072 × 1296): 200 fps 2K (2048 × 864): 300 fps *REDCODE values and max frame rates may vary based on selected acquisition format, aspect ratio, project time base, and SSD.
Memory Type	Red Mini-Mag SSD
Package Type	RED Video
Recording Formats	REDCODE RAW (available compression ratios): 4:1-22:1 REDCODE for 5K Full Format (5120 × 2700) at 24 fps 7:1-22:1 REDCODE for 6K Full Format (5120 × 2700) at 50 fps 3:1-22:1 REDCODE for 4K Full Format (4096 × 2160) at 24 fps 6:1-22:1 REDCODE for 4K Full Format (4096 × 2160) at 60 fps Compression ratios and resolutions are limited to the recording data rate limitations. Apple ProRes:* 4096 × 2160: ProRes 422 LT/422/422 HQ up to 29.97 fps 2048 × 1080: ProRes 422 LT/422/422 HQ/4444/4444 XQ up to 120 fps AVID DNx: 4096 × 2160: DNxHR 8-bit SQ/LB up to 29.97 fps 1920 × 1080: DNxHD 8-bit HQ/SQ/LB up to 60 fps
Recording Time	5K (5120 × 2700) at 24 fps and 11:1 REDCODE: Approximately 0.34GB/Min 5K (5120 × 2700) at 48 fps and 14:1 REDCODE: Approximately 0.21GB/Min 4.5K 2.4:1 (4608 × 1944) at 120 fps and 15:1 REDCODE: Approximately 0.14GB/Min
Resolutions	5K (5120 X 2700) 4.5K (4608×2160) 4K (4096 × 2160) 3K (3072 × 2160) 2K (2048 × 1080)
Sensor Size	25.6 mm x 13.5 mm (Diagonal: 28.9 mm)
Sensor Type	RED DRAGON 13.8 MP Super 35mm CMOS
Weight	3.5 lbs (BRAIN with Integrated Media Bay)

See All

Resources

Scarlet-W Operation Guide

Reviews

See Reviews

Lensrentals.com offers rentals ranging in length from 1 to 90 days. The shopping cart will automatically update the quoted price as you adjust the length of your rental. Our most common rental periods are shown below:

No Coverage

Lenscap

LenscapPlus

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$125.00	$531.00	$656.00	$218.67
4 days	$134.00	$567.00	$701.00	$175.25
7 days	$179.00	$746.00	$925.00	$132.14
10 days	$242.00	$997.00	$1239.00	$123.90
14 days	$313.00	$1284.00	$1597.00	$114.07
21 days	$421.00	$1714.00	$2135.00	$101.67
30 days	$528.00	$2144.00	$2672.00	$89.07
45 days	$689.00	$2789.00	$3478.00	$77.29
60 days	$806.00	$3256.00	$4062.00	$67.70
90 days	$1038.00	$4188.00	$5226.00	$58.07

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$83.00	$531.00	$614.00	$204.67
4 days	$89.00	$567.00	$656.00	$164.00
7 days	$119.00	$746.00	$865.00	$123.57
10 days	$161.00	$997.00	$1158.00	$115.80
14 days	$208.00	$1284.00	$1492.00	$106.57
21 days	$280.00	$1714.00	$1994.00	$94.95
30 days	$351.00	$2144.00	$2495.00	$83.17
45 days	$458.00	$2789.00	$3247.00	$72.16
60 days	$536.00	$3256.00	$3792.00	$63.20
90 days	$690.00	$4188.00	$4878.00	$54.20

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$531.00	$177.00
4 days	$567.00	$141.75
7 days	$746.00	$106.57
10 days	$997.00	$99.70
14 days	$1284.00	$91.71
21 days	$1714.00	$81.62
30 days	$2144.00	$71.47
45 days	$2789.00	$61.98
60 days	$3256.00	$54.27
90 days	$4188.00	$46.53
