RED V-RAPTOR XL 8K VV DSMC3 Cinema Camera (V-Mount)

The RED V-RAPTOR XL 8K VV DSMC3 Cinema Camera (V-Mount) takes everything that makes the standard V-Raptor great and adds a host of new ports in a larger chassis for out-of-the-box usability. Key features include:

35.4MP full-frame, rolling shutter CMOS
Up to 8K120 17:9, 6K198 S35 & 4K240 17:9
PL Mount and V-Mount battery plate included
XL size includes a variety of integrated ports

What’s Changed? The RED V-RAPTOR XL 8K VV DSMC3 Cinema Camera (V-Mount) boasts a similar spec sheet to its little brother, the V-RAPTOR 8K, and for good reason- it’s a powerful camera. Where this version of the V-RAPTOR earns its place is in its size- it is called the “XL,” after all. The V-RAPTOR XL includes a range of ports normally found on accessory modules sold separately, like video I/O, timecode and genlock ports, and a surplus of power outputs, all of can be found in the Specifications section of this page.

Full-Frame Sensor. The 35.4MP full-frame V-RAPTOR sensor at the heart of the camera provides 17+ stops of dynamic range that enable it to excel at low-light capture while offering the lowest noise floor of the RED lineup. And while the V-RAPTOR does not employ a global shutter, its rolling shutter with high-speed readout is almost twice as fast as that of the MONSTRO, all but eliminating motion artifacts. This sensor also enables phase-detection autofocus (PDAF), a boon for single operators grabbing fast-paced or unpredictable action. To accompany this sensor, a fixed OLPF (optical low-pass filter) will enable you to capture RED’s signature color quality and sensitivity.

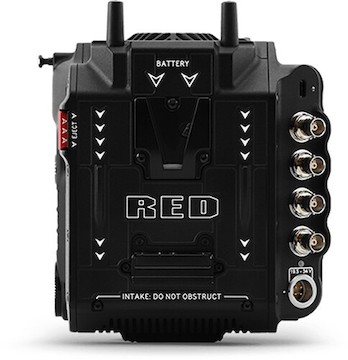

Integrated V-Mount Battery Plate. This version of the V-RAPTOR includes a built-in battery plate that accepts 24 to 34V V-mount batteries with auxiliary power outputs as well as standard 12 to 16V batteries.

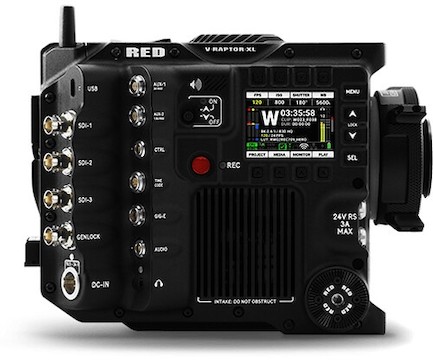

Assistant Interface. A right-side OLED screen display offers on-camera control to 1st and 2nd ACs or an operator positioned at that side of the camera. Physical buttons eliminate accidental selections that can occur with touchscreens, and the ability to save user pages lets you customize the interface to your liking. The interface also helpfully only displays the resolutions and frame rates available with your chosen format.

DSMC3 Ecosystem. The DSMC3 form features several improvements over the previous DSMC2 brains and no compatibility with DSMC2 accessories. DSMC3 cameras have a larger fan system with two intake valves that provide better thermal heat exchange (TEC) enabling a wide ambient temperature operating range.

Q & A

Is this compatible with all V-Mount batteries?

Yes! The included battery plate is designed to support high-voltage batteries when needed to power accessories, or standard 12-16V batteries when auxiliary power is not needed.

Does the camera have a live view feature?

No. The RED V-RAPTOR side display is a graphic user interface and can only be used to access to menus, camera features, and critical camera information. An external monitor is required for live view.

Is this compatible with SmallHD camera control?

Camera control is supported by the SmallHD INDIE 7 On-Camera Monitor w/ RED RCP2 Control and the SmallHD FOCUS Pro OLED 3G-SDI Monitor w/ RED RCP2 Control.

Specifications

Brand	RED
Camcorder Type	Cinema
Camera Type	Camcorder
Format Support	Supports Apple ProRes / ProRes proxy
Imaging	Sensor Type 35.4 MP Full Frame CMOS Sensor Size 40.96 × 21.6 mm Effective Pixels 8192 × 4320 Dynamic Range 17 Stops
Inputs/Outputs	Video 3 x BNC (12G-SDI) Output <li1 x BNC (3G-SDI) Output 1 x Proprietary Output Audio 1 x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input 1 × 1/8" / 3.5 mm TRS Stereo Headphone Output Power 1 x LEMO 4-Pin (19.5 to 34VDC) Input 2 x D-Tap (12VDC up to 3 A) Output 1 x LEMO 2-Pin (12VDC at 3 A) Output 1 x LEMO 2-Pin (12VDC at 1.5 A) Output 1 x LEMO 2-Pin (12VDC at 1 A) Output 2 x Fischer 3-Pin (12VDC up to 3 A) Output Other 1 x BNC (Genlock) 1 x LEMO 5-Pin (Timecode) 1 × 9-Pin (Ethernet) Control/Data Input/Output 1 x USB-C
Item Type	Camera and Cinema Cameras
Maximum Frame Rates	REDCODE HQ 8192 × 4320p up to 60 fps 6144 × 3240p up to 96 fps 4096 × 2160p up to 240 fps 2048 × 1080p up to 480 fps REDCODE MQ 8192 × 4320p up to 60 fps 6144 × 3240p up to 160 fps 4096 × 2160p up to 240 fps 2048 × 1080p up to 480 fps REDCODE LQ 8192 × 4320p up to 60 fps 6144 × 3240p up to 160 fps 4096 × 2160p up to 240 fps 2048 × 1080p up to 480 fps

Includes

RED V-RAPTOR XL
PL mount
Antenna (2x)
3-pin XLR to 4-pin 2B cable
AC adapter
6’ power cable

Specifications

Brand	RED
Camcorder Type	Cinema
Camera Type	Camcorder
Format Support	Supports Apple ProRes / ProRes proxy
Imaging	Sensor Type 35.4 MP Full Frame CMOS Sensor Size 40.96 × 21.6 mm Effective Pixels 8192 × 4320 Dynamic Range 17 Stops
Inputs/Outputs	Video 3 x BNC (12G-SDI) Output <li1 x BNC (3G-SDI) Output 1 x Proprietary Output Audio 1 x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input 1 × 1/8" / 3.5 mm TRS Stereo Headphone Output Power 1 x LEMO 4-Pin (19.5 to 34VDC) Input 2 x D-Tap (12VDC up to 3 A) Output 1 x LEMO 2-Pin (12VDC at 3 A) Output 1 x LEMO 2-Pin (12VDC at 1.5 A) Output 1 x LEMO 2-Pin (12VDC at 1 A) Output 2 x Fischer 3-Pin (12VDC up to 3 A) Output Other 1 x BNC (Genlock) 1 x LEMO 5-Pin (Timecode) 1 × 9-Pin (Ethernet) Control/Data Input/Output 1 x USB-C
Item Type	Camera and Cinema Cameras
Maximum Frame Rates	REDCODE HQ 8192 × 4320p up to 60 fps 6144 × 3240p up to 96 fps 4096 × 2160p up to 240 fps 2048 × 1080p up to 480 fps REDCODE MQ 8192 × 4320p up to 60 fps 6144 × 3240p up to 160 fps 4096 × 2160p up to 240 fps 2048 × 1080p up to 480 fps REDCODE LQ 8192 × 4320p up to 60 fps 6144 × 3240p up to 160 fps 4096 × 2160p up to 240 fps 2048 × 1080p up to 480 fps
