Sony FR7 Cinema PTZ with RM-IP500 Controller

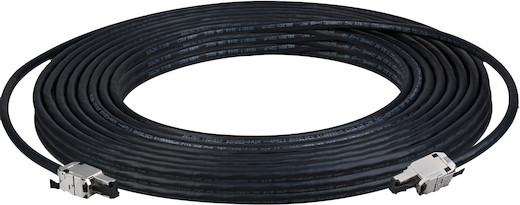

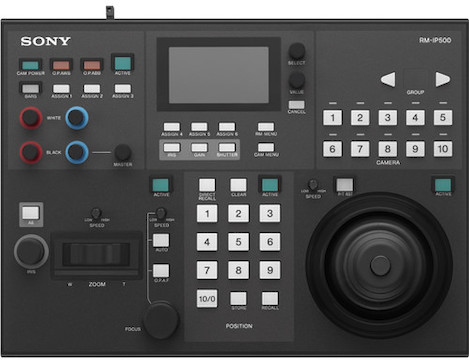

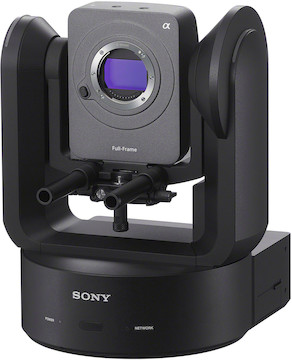

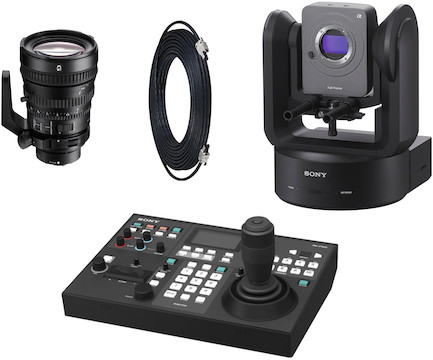

The Sony FR7 Cinema PTZ with RM-IP500 Controller is a full rental, VISCA protocol-supported package including a FR7 PTZ camera, compatible professional remote controller, high quality optic lens, and a 150ft ethernet cable. Key features include:

4K full-frame sensor
Pan, tilt, & zoom control via joystick
Four-stop Optical SteadyShot image stabilization
Dual, male RJ45 connectors

Q & A

I got the RM-IP500 remote connected to the FR7 camera. Why isn't the camera moving?

Verify that the Pan/Tilt speed dial to the left of the joystick is turned up. When it’s turned all the way down, the camera moves so slowly that it might not appear to be moving at all.

I can’t get the RM-IP500 controller to connect to the FR7 camera. What can I do?

If you can’t get the RM-IP500 controller to connect to the FR7 camera, make sure that SETUP dip switch #3 on the back of the camera is flipped on to enable VISCA over IP control and then reboot the camera.
You should also verify that the FR7 camera and the RM-IP500 controller are on the same network and subnet configuration.
Verify that the Pan/Tilt speed dial to the left of the joystick is turned up. When it’s turned all the way down, the camera moves so slowly that it might not appear to be moving at all.
If you have any questions, please contact us.

Is this cable comparable in size and weight to common ethernet cables?

This is the Terminator of ethernet cables. You’ll get unrelenting peak performance, but the tradeoff is bulk and an uncooperative working relationship.

Does the lens include the zoom pin?

No. If you need the zoom pin for your rental, you can request one in the Special Instructions box at checkout.

Specifications

Brand	Sony
Control	Presets 3 via IR 100 via IP Move Speed Pan: 0.02 to 60°/sec Tilt: 0.02 to 60°/sec Movement Range Pan: 340° (-170 to 170°) Tilt: 225° (-30 to 195°) Tally Light Yes Supported Control Protocols IR VISCA
Environmental	Operating Temperature 32 to 104°F Storage Temperature -4 to 140°F
Exposure Control	Shutter Type Electronic Rolling Shutter Shutter Speed 1/8000 to 1 Second ISO Sensitivity 800 to 12,800 (Extended: 409,600) Gain -3 to 30 dB Advertised Dynamic Range 15 Stops Flip / Mirror Support Image Flip White Balance 2000 to 15,000K Presets ATW, Set A
General	Mounting 2 × 1/4"-20 Female for Tripod Netflix Approved Yes Sound Level NC35 Dimensions (W x H x D) 11.4 × 9.2 × 8.9″ Weight 10.1 lb
Imaging	Lens Mount Sony EM Sensor Type CMOS Sensor Sensor Resolution Actual: 12.9 Megapixel Effective: 10.3 Megapixel Lens Communication Yes, with Autofocus Support Built-In ND Filter 2 to 7 Stop Electronic ND Filter Focus Control Autofocus Autofocus Points Phase Detection: 627
Interface	Media/Memory Card Slot Dual Slot: CFexpress Type A / SD Video I/O 1 x BNC (12G-SDI) Output 1 x SFP+ Output 1 x HDMI Output Audio I/O 1 x XLR 5-Pin Mic/Line (+48 V Phantom Power) Input Other I/O 1 x BNC (Timecode) 1 x RJ45 (LAN) Control 1 x BNC (Genlock) 1 x RJ45 (Tally)
Item Type	Package, PTZ Cameras, and Cinema Cameras
Package Type	Sony Video and PTZ Video
Power	PoE Support PoE++ 802.3bt Power I/O 1 x Barrel (19.5VDC) Input Power Consumption PoE: 71.3 W Power Supply: 80 W
Video Capture	External Recording Modes Raw 16-Bit via SDI/BNC 4096 × 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 × 2160 at 23.98/25/29.97/50/59.94 fps 1920 × 1080 at 23.98/24.00/25/29.97/50/59.94 fps HDMI 4096 × 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 × 2160 at 23.98/25/29.97/50/59.94 fps 1920 × 1080 at 23.98/24.00/25/29.97/50/59.94 fps 720 × 480 at 59.94 fps 720 × 576 at 50 fps Internal Recording Modes XAVC-I 4:2:2 10-Bit DCI 4K (4096 × 2160) at 24.00/25/29.97/50/59.94 fps [240 to 600 Mb/s VBR] UHD 4K (3840 × 2160) at 25/29.97/50/59.94 fps [240 to 600 Mb/s VBR] 1920 × 1080 at 25/29.97/50/59.94 fps [89 to 222 Mb/s] XAVC-L UHD 4K (3840 × 2160) at 25/29.97/50/59.94 fps [100 to 150 Mb/s VBR] 1920 × 1080 at 25/29.97/50/59.94 fps [35 to 50 Mb/s VBR] Audio Recording 4-Channel 24-Bit 48 kHz LPCM Audio Gamma Curve HDR-HLG Rec709 S Cinetone Sony S-Log 3 Standard IP Streaming NDI\|HX, RTSP, SRT:640 × 360 to 4096 × 2160 (0.5 to 80.00 Mb/s)
