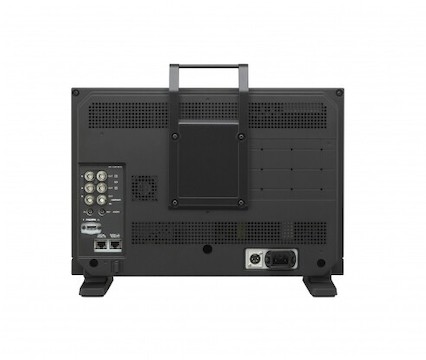

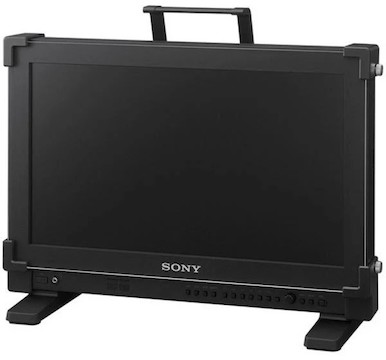

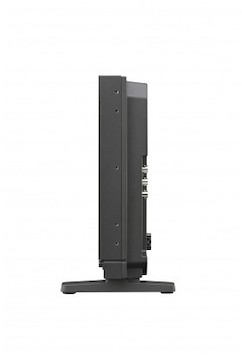

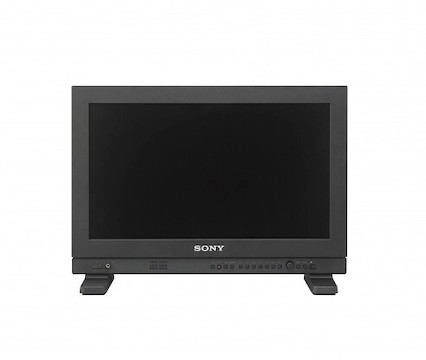

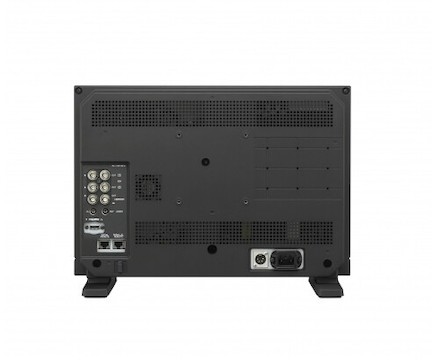

Sony LMD-A170 17" LCD Production Monitor

$217.00

7 Day

Rental

Arrival Date

Return Date

Pricing Chart

Shipping Rates

Interested in purchasing?

Includes

3 Prong Power Cord 6ft
Sony LMD-A170 17-inch LCD
(2) LMD-A170 Foot
LMD-A170 Top Handle
Hardware
Protection Panel
Top Left Bumper
Top Right Bumper
Lower Right Bumper
Lower Left Bumper
Protective Case & Insert

Resources

Manual

Sony LMD-A170 17" LCD Production Monitor

The Sony LMD-A170 17" LCD Production Monitor is a portable monitoring solution perfect for on set, studio, and broadcast use. Key features include:

1920 × 1080 native resolution
16.5-inch diagonal screen size
Supports 1080p60 video signals
Two 3G/HD/SD-SDI inputs

Q & A

How do I power this thing?

The LMD-170 is powered by the included six-foot three-prong power cable but it can also be powered by a separately available XLR 4-pin power adapter like the Wooden Camera 15V Power Supply.

What is the default password for the settings lock?

The default password is “0000”.

Why does the monitor keep powering off?

By default, the LMD-170’s auto power-off function is enabled, causing the monitor to power off if no input is detected for a continuous sixty minutes.
To disable auto power-off, press the MENU button below the display, navigate to the User Configuration submenu within the monitor’s System Setting menu options, and change the Auto Power Down setting to Off.

Specifications

Audio I/O	1 × 1/8" / 3.5 mm Input 1 × 1/8" / 3.5 mm Monitor Output 1 × 1/8" / 3.5 mm Headphone Output
Brand	Sony
Display	Panel Type IPS-Type LCD Display Size 16.61" Screen Area 14.40 × 8.10″ Resolution 1920 × 1080 Aspect Ratio 16:9 Viewing Angle Horizontal: 178° (89/89) Vertical: 178° (89/89) HDR Compatibility Yes Pixels Per Inch (ppi) 133 ppi Image Controls Color Temperature Selection Focus Peaking Screen Markers Waveform
Environmental	Operating Temperature 32 to 95°F 68 to 86°F (Recommended) Operating Humidity 30 to 85% Storage Temperature -4 to 140°F Storage Humidity 0 to 90%
Format Support	PC Resolutions 1680 × 1050 1440 × 900 1360 × 768 1280 × 1024 1280 × 768 640 × 480 Video Standard Compliance SMPTE ST-2084 ITU -R BT.709/BT.2020/BT.2100
Inputs/Outputs	Built-In Speaker 1 × 1 W Power I/O 1 x XLR 4-Pin Input Other I/O 1 × 8P8C (Parallel) 1 x RJ45 (LAN) Media/Memory Card Slot None Bluetooth None Mobile App Compatible No *As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Item Type	Monitoring and Production Monitors
Monitoring Type	Monitor
Mounting	Mounting-Hole Pattern 100 × 100 mm
Physical	Dimensions 16.5 × 11.4 × 2.8″ 16.5 × 12.3 × 6.5″ Including Feet Weight 10.8 lb
Power	AC Input Power 100 to 240 VAC, 50 / 60 Hz at 0.4 to 0.5 A DC Input Power 12 to 17 VDC Battery Type None Power Consumption 49 W (Maximum) 42 W (Typical)
Video Format	SDI (10-Bit 4:4:4 RGB, YCC) 1080p: 30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/50/30/25/24 1080PsF: 25/24 1080i: 60/50 720p: 60/50/30/25/24 576i 480i HDMI 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 576p: 50 480p: 60 576i 480i
Video I/O	2 x BNC (3G-SDI) Output 1 x BNC (Composite) Output 2 x BNC (3G-SDI) Input 1 x HDMI Input 1 x BNC (Composite) Input

See All

Includes

3 Prong Power Cord 6ft
Sony LMD-A170 17-inch LCD
(2) LMD-A170 Foot
LMD-A170 Top Handle
Hardware
Protection Panel
Top Left Bumper
Top Right Bumper
Lower Right Bumper
Lower Left Bumper
Protective Case & Insert

Specifications

Audio I/O	1 × 1/8" / 3.5 mm Input 1 × 1/8" / 3.5 mm Monitor Output 1 × 1/8" / 3.5 mm Headphone Output
Brand	Sony
Display	Panel Type IPS-Type LCD Display Size 16.61" Screen Area 14.40 × 8.10″ Resolution 1920 × 1080 Aspect Ratio 16:9 Viewing Angle Horizontal: 178° (89/89) Vertical: 178° (89/89) HDR Compatibility Yes Pixels Per Inch (ppi) 133 ppi Image Controls Color Temperature Selection Focus Peaking Screen Markers Waveform
Environmental	Operating Temperature 32 to 95°F 68 to 86°F (Recommended) Operating Humidity 30 to 85% Storage Temperature -4 to 140°F Storage Humidity 0 to 90%
Format Support	PC Resolutions 1680 × 1050 1440 × 900 1360 × 768 1280 × 1024 1280 × 768 640 × 480 Video Standard Compliance SMPTE ST-2084 ITU -R BT.709/BT.2020/BT.2100
Inputs/Outputs	Built-In Speaker 1 × 1 W Power I/O 1 x XLR 4-Pin Input Other I/O 1 × 8P8C (Parallel) 1 x RJ45 (LAN) Media/Memory Card Slot None Bluetooth None Mobile App Compatible No *As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Item Type	Monitoring and Production Monitors
Monitoring Type	Monitor
Mounting	Mounting-Hole Pattern 100 × 100 mm
Physical	Dimensions 16.5 × 11.4 × 2.8″ 16.5 × 12.3 × 6.5″ Including Feet Weight 10.8 lb
Power	AC Input Power 100 to 240 VAC, 50 / 60 Hz at 0.4 to 0.5 A DC Input Power 12 to 17 VDC Battery Type None Power Consumption 49 W (Maximum) 42 W (Typical)
Video Format	SDI (10-Bit 4:4:4 RGB, YCC) 1080p: 30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/50/30/25/24 1080PsF: 25/24 1080i: 60/50 720p: 60/50/30/25/24 576i 480i HDMI 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 576p: 50 480p: 60 576i 480i
Video I/O	2 x BNC (3G-SDI) Output 1 x BNC (Composite) Output 2 x BNC (3G-SDI) Input 1 x HDMI Input 1 x BNC (Composite) Input

See All

Resources

Manual

Reviews

See Reviews

Rental Period	Lenscap+	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$40.00	$163.00	$203.00	$67.67
4 days	$43.00	$172.00	$215.00	$53.75
7 days	$57.00	$217.00	$274.00	$39.14
10 days	$77.00	$280.00	$357.00	$35.70
14 days	$100.00	$351.00	$451.00	$32.21
21 days	$134.00	$459.00	$593.00	$28.24
30 days	$168.00	$566.00	$734.00	$24.47
45 days	$219.00	$727.00	$946.00	$21.02
60 days	$257.00	$844.00	$1101.00	$18.35
90 days	$331.00	$1076.00	$1407.00	$15.63

Rental Period	Lenscap	Rental Price	Total Price	Price Per Day (Approx.)
3 days	$24.00	$163.00	$187.00	$62.33
4 days	$26.00	$172.00	$198.00	$49.50
7 days	$34.00	$217.00	$251.00	$35.86
10 days	$46.00	$280.00	$326.00	$32.60
14 days	$60.00	$351.00	$411.00	$29.36
21 days	$80.00	$459.00	$539.00	$25.67
30 days	$100.00	$566.00	$666.00	$22.20
45 days	$131.00	$727.00	$858.00	$19.07
60 days	$153.00	$844.00	$997.00	$16.62
90 days	$197.00	$1076.00	$1273.00	$14.14

Rental Period	Rental Price	Price Per Day (Approx.)
3 days	$163.00	$54.33
4 days	$172.00	$43.00
7 days	$217.00	$31.00
10 days	$280.00	$28.00
14 days	$351.00	$25.07
21 days	$459.00	$21.86
30 days	$566.00	$18.87
45 days	$727.00	$16.16
60 days	$844.00	$14.07
90 days	$1076.00	$11.96
