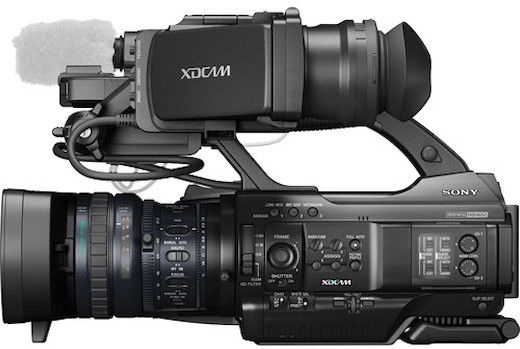

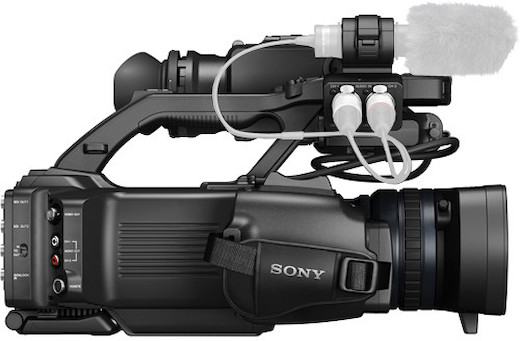

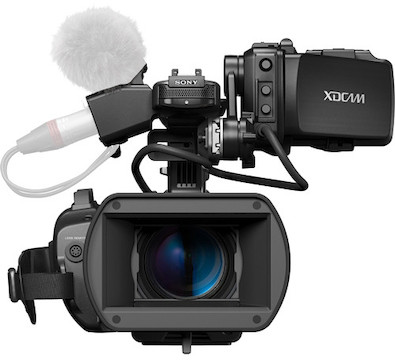

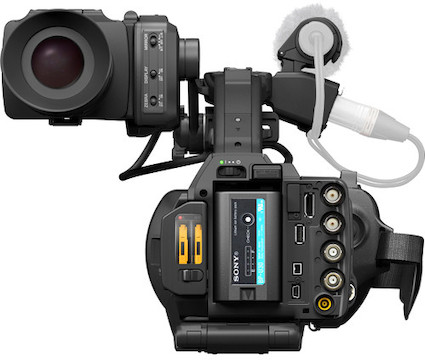

Sony PMW-300K1 XDCAM HD422

Includes

Camcorder with Fujinon VCL-614B2X lens
BP-U60 battery
BC-U1a charger
Pelican case (im2620)

Resources

Sony PMW-300K1 XDCAM HD422

While we no longer rent this product, we do carry the we do carry the Sony PXW-X200 XDCAM. Additionally, you may find alternatives in the Recommended section on the left-hand side of this page.

3-chip 1/2" Full HD CMOS sensor
31-439mm F/1.6-16 14x optical zoom lens
XAVC 10-bit HD 422 up to 100 Mbps and MPEG HD 422 up to 50 Mbps
Integrated shoulder pad, built-in NDs, and back focus auto adjust

Q & A

Does this camera include a USB cable for transferring footage?

No. We strongly recommend using a dedicated card reader to transfer footage. If you need a USB cable, please request it in the Special Instructions box during checkout.

Will this camera arrive with the lens attached and ready to shoot?

No. The lens ships detached to protect the mount. Lens calibration will be needed upon installation of the lens. Instruction can be found by clicking “Lens Adjustment” in the right column of this page.

Specifications

Battery	Compatibility BP-U60 (included) Life 138 mins. (BP-U60)
Brand	Sony
Camcorder Type	ENG-style
Camera Type	Camcorder
Dimensions	10.8 × 9.4 × 15.1″
Filter Diameter	77 mm
Inputs/Outputs	Audio Inputs 2x XLRs for audio input: 3-pin female; line, mic, mic +48 V selectable Audio Output 1x A/V multi-connector (10-pin) for audio output: -10 dBu (reference level), 47 kΩ 1x Stereo mini-jack for earphone output 1x Monitor speaker: monaural, 250 mW Video Outputs 1x BNC for HD/SD-SDI output: SMPTE 292M/259M 1x HDMI output (type A) Additional Inputs/Outputs 1x BNC for genlock input (switchable to HD-Y, composite video output), 1.0 Vp-p, 75Ω 1x BNC for timecode input (switchable to timecode output), SMPTE-12M-2008, 0.5-1.8 Vp-p, 10kΩ 1x 4-pin IEEE 1394 i.Link for HDV (HDV 1080i) / DV input/output, S400 1x USB 2.0 (device), mini-B type 1x DC jack for DC input
Iris	f/1.9 and auto/manual selectable
Item Type	Camera
Lens Focal Length Equivalent	31.4 – 439mm
Memory Type	2x slots for SxS ExpressCard/34 cards
Mount	Fixed Lens
Recording Time	*UDF Mode (HD Recording), 50 Mb/s MPEG HD422: Approx. 120 min with 64 GB memory card, and 35 Mb/s: Approx. 180 min with 64 GB memory card
Sensor	(3) 1/2" Exmor CMOS
Shutter Speed	1/32 to 1/2000 seconds
Video Formats	*UDF Mode (HD Recording), MPEG HD422 (MPEG-2 422P@HL): CBR, 50 Mb/s, MPEG HD420 (1440 × 1080, MPEG-2 MP@HL):, and HQ mode (VBR, maximum bit rate: 35 Mb/s)

See All

Includes

Camcorder with Fujinon VCL-614B2X lens
BP-U60 battery
BC-U1a charger
Pelican case (im2620)

Specifications

Battery	Compatibility BP-U60 (included) Life 138 mins. (BP-U60)
Brand	Sony
Camcorder Type	ENG-style
Camera Type	Camcorder
Dimensions	10.8 × 9.4 × 15.1″
Filter Diameter	77 mm
Inputs/Outputs	Audio Inputs 2x XLRs for audio input: 3-pin female; line, mic, mic +48 V selectable Audio Output 1x A/V multi-connector (10-pin) for audio output: -10 dBu (reference level), 47 kΩ 1x Stereo mini-jack for earphone output 1x Monitor speaker: monaural, 250 mW Video Outputs 1x BNC for HD/SD-SDI output: SMPTE 292M/259M 1x HDMI output (type A) Additional Inputs/Outputs 1x BNC for genlock input (switchable to HD-Y, composite video output), 1.0 Vp-p, 75Ω 1x BNC for timecode input (switchable to timecode output), SMPTE-12M-2008, 0.5-1.8 Vp-p, 10kΩ 1x 4-pin IEEE 1394 i.Link for HDV (HDV 1080i) / DV input/output, S400 1x USB 2.0 (device), mini-B type 1x DC jack for DC input
Iris	f/1.9 and auto/manual selectable
Item Type	Camera
Lens Focal Length Equivalent	31.4 – 439mm
Memory Type	2x slots for SxS ExpressCard/34 cards
Mount	Fixed Lens
Recording Time	*UDF Mode (HD Recording), 50 Mb/s MPEG HD422: Approx. 120 min with 64 GB memory card, and 35 Mb/s: Approx. 180 min with 64 GB memory card
Sensor	(3) 1/2" Exmor CMOS
Shutter Speed	1/32 to 1/2000 seconds
Video Formats	*UDF Mode (HD Recording), MPEG HD422 (MPEG-2 422P@HL): CBR, 50 Mb/s, MPEG HD420 (1440 × 1080, MPEG-2 MP@HL):, and HQ mode (VBR, maximum bit rate: 35 Mb/s)

See All
